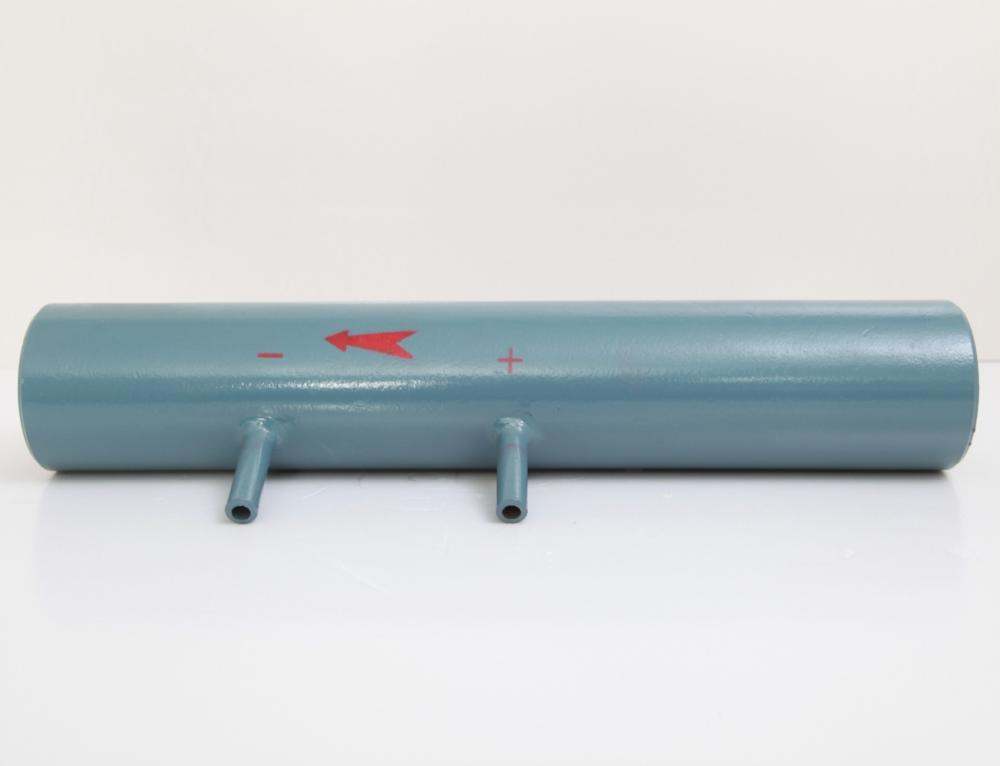

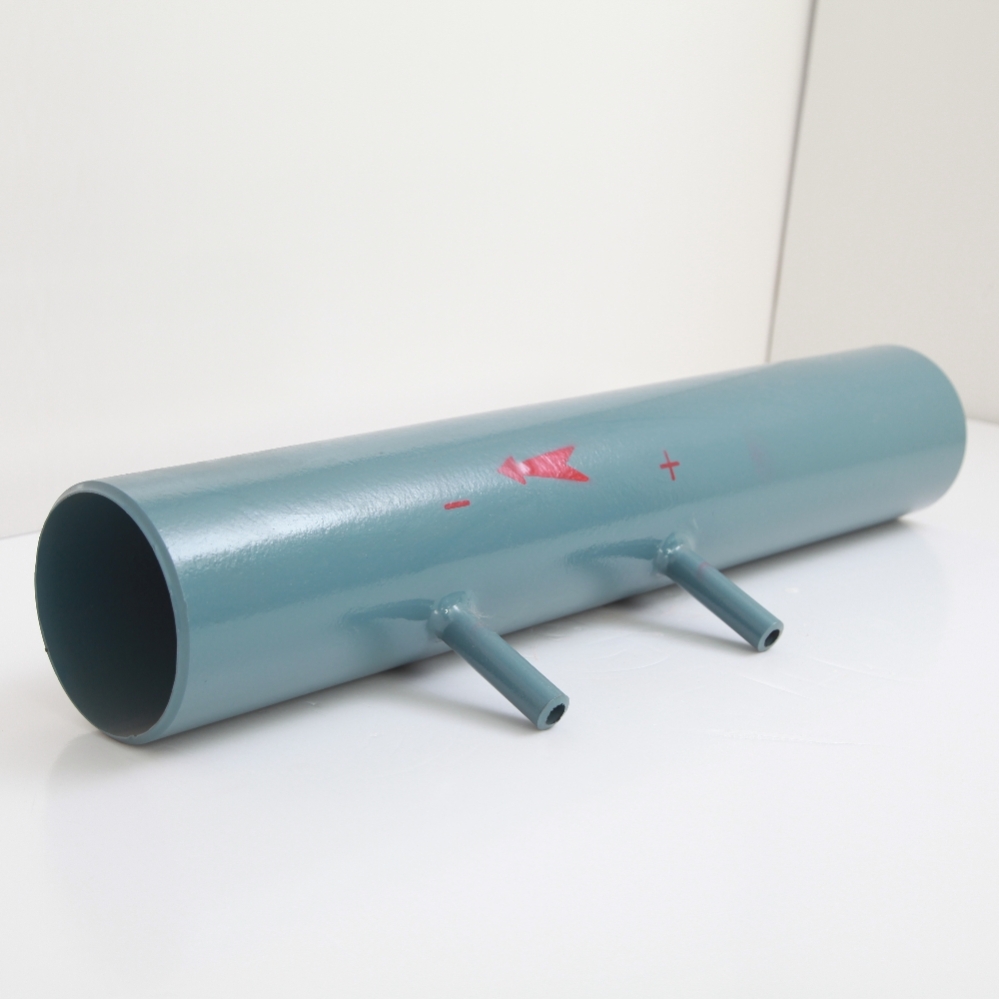

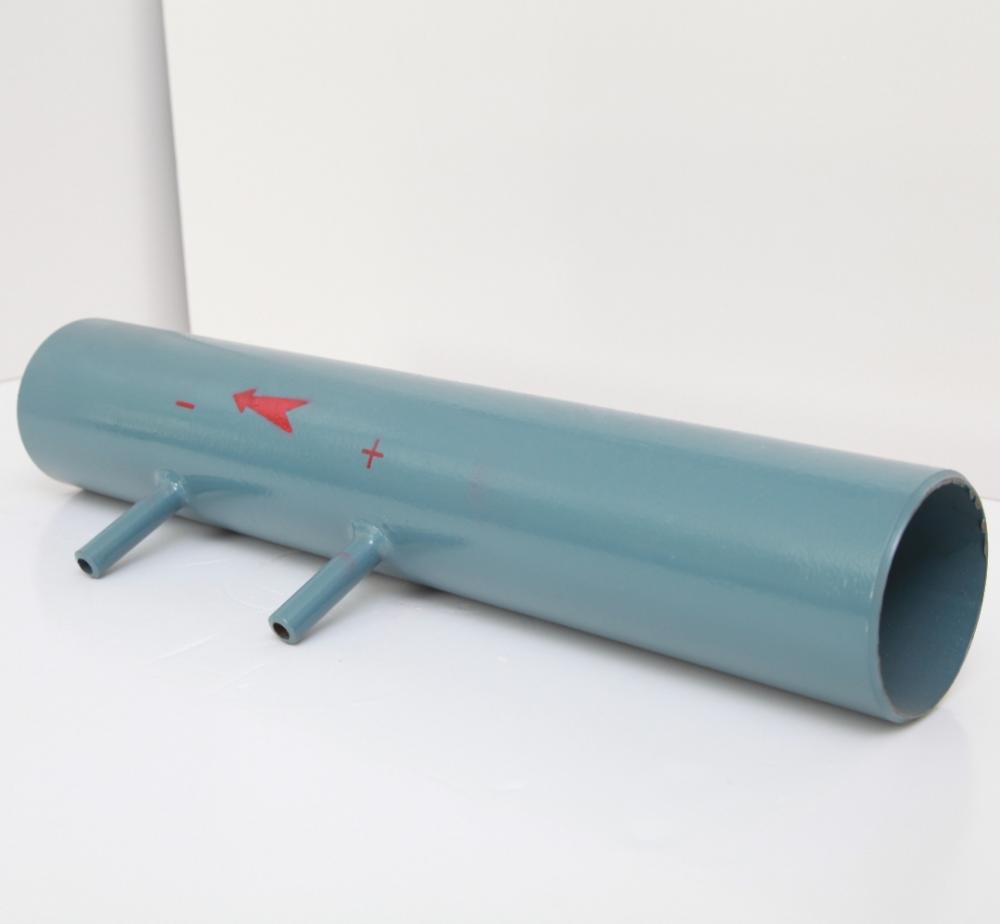

Nozzle flowmeter

Product Description:

Standard nozzle, also known as welding nozzle.  The measurement principle is: when the fluid filled with the pipe flows through the throttling device in the pipe.  The flow beam will form a local contraction at the throttling part of the throttling device, so that the flow rate increases, the static pressure is low, and the pressure drop is generated before and after the throttling part, that is, the pressure difference.  The greater the flow rate of the medium flow, the greater the pressure difference generated before and after the throttle part, so the standard nozzle can measure the size of the fluid flow by measuring the pressure difference.  Standard nozzle flow meter is based on the law of energy preservation and the law of flow continuity, and is used with the differential pressure transmitter to measure the flow of liquid, steam, gas, standard nozzle is widely used in petroleum, chemical industry, metallurgy, electric power, light industry and other fields.

Our company's electromagnetic flowmeter, precession vortex flowmeter, thermal gas mass flowmeter and other products are very high measurement accuracy, balance flowmeter, nozzle flowmeter are often used, our products are also very professional.

Product characteristics  :
1, the standard nozzle flow meter structure is simple, firm, easy to install, long service life

2, a wide range of applications, all single-phase flow can be measured, part of the miscible flow can also be applied

3, no real flow calibration and inspection, stable performance, continuous work for 5 years without adjustment
4, wide range, greater than 10:1.

5, high temperature and high pressure resistance, impact resistance, corrosion resistance, especially suitable for high temperature and high pressure media,

6, stable and reliable performance, can ignore the impact of temperature, static pressure, high measurement accuracy.

7, circular arc structure design can measure a variety of liquids, gases, steam and various dirty media
