Z1S Series Check Valve

Double Pilot Operated Check Valve Description:

Flanged Check Valve Sandwich plate valve.
Porting pattern according to ISO 4401.
One- and two-channel blocking function.
Perfect leak-tightness due to poppet made of highperformance plastic.
Corrosion-resistant surface on request.

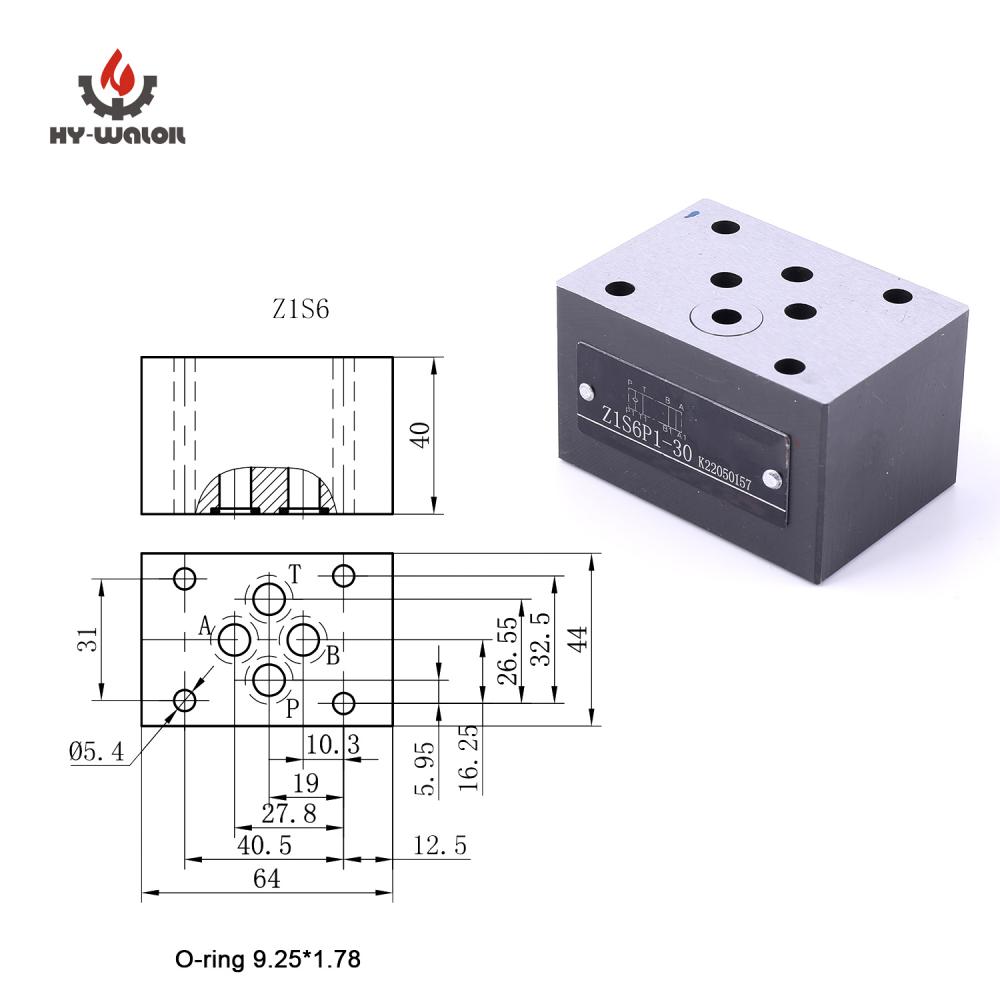

Z1S6 valve is a direct-acting check valve with superimposed structure.

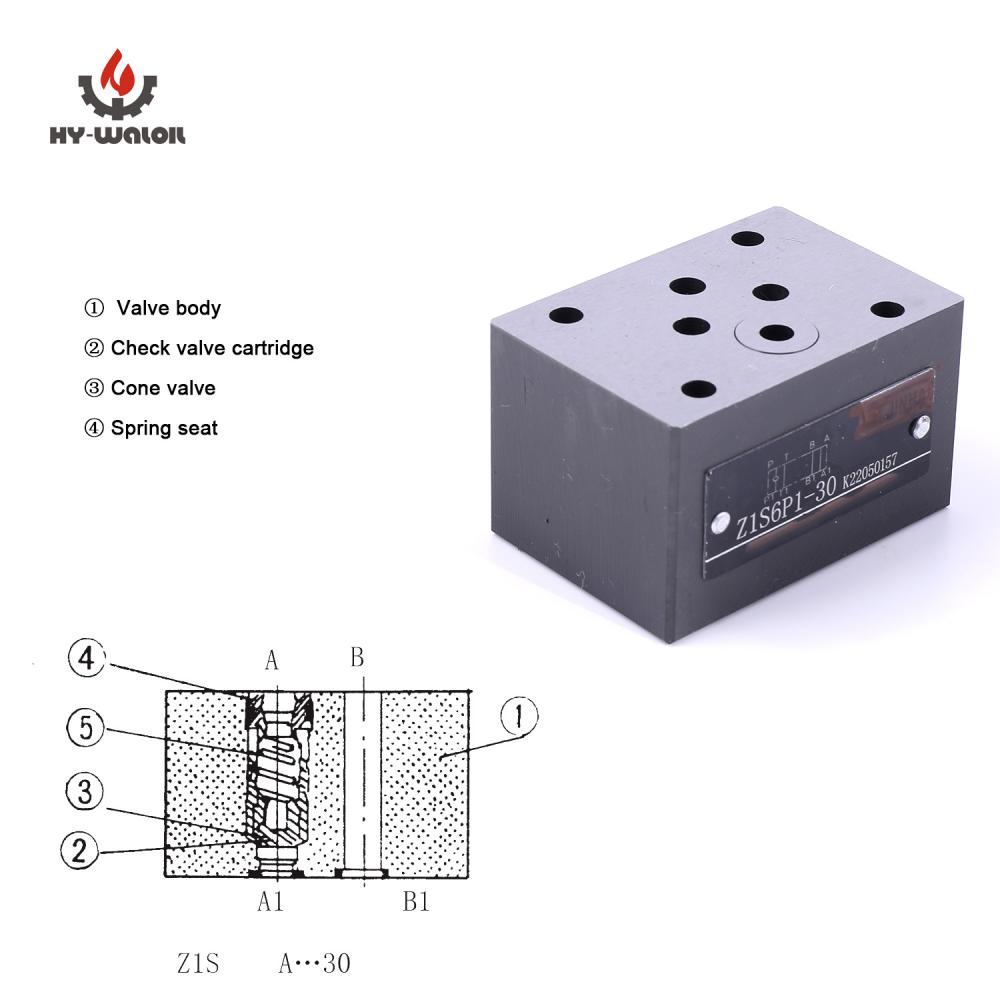

The check valve is closed without leakage in one direction and allows free flow in the other direction. The stroke of the taper spool is limited by the spring seat . The spring causes the tapered spool to close. When no flow passes through, the spring holds the spool in the closed position.

Our company is mainly engaged in the production and processing of relief valves, straight through check valves, throttle valves, electromagnetic relief valves, electromagnetic reversing valves, controllable check valves, manual reversing valves, right Angle check valves, hydraulic control check valves, pressure reducing valves, sequence valves, electro-hydraulic reversing valves, multi-way reversing valves, manual combination valves, superposition valves, pressure gauge switches, electromagnets, integrated blocks, hydraulic stations and other products.It has a complete and scientific quality management system.

 Hydraulic Check Valve Technical Parameter
