1/2'' Anti Corrosive UPVC Solenoid Valve For Chemical Acid Alkali Liquid 220V 110V 24V 12V

1/2'' Anti Corrosion CPVC Solenoid Valve 24VDC 220VAC

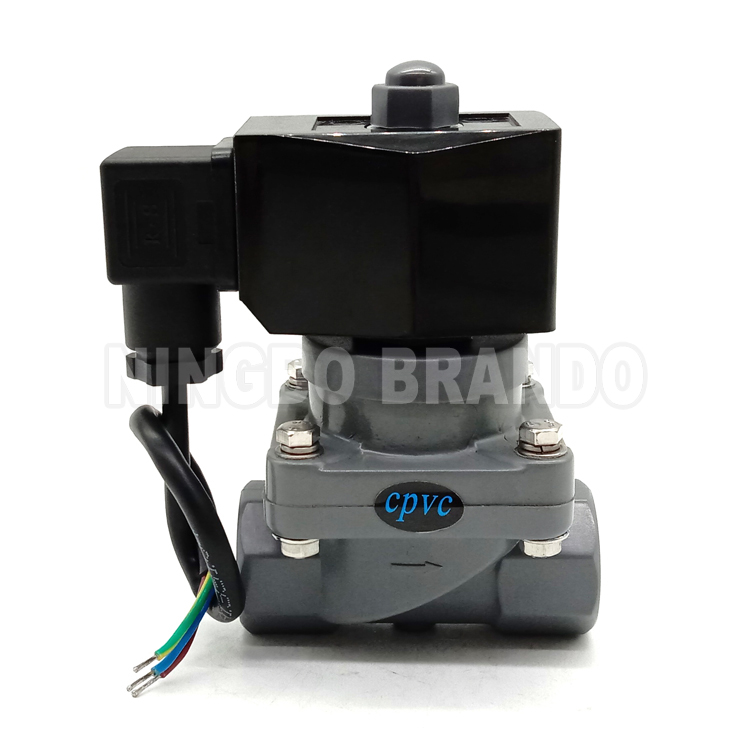

This is an anti corrosive CPVC solenoid valve, 1/2'' female threaded port size, 15mm orifice size, 2 way normally closed, piston pilot operated, 0.1 to 6 bar working pressure, can be EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Product Features:

1. Working Medium: Chemical, Acid, Alkali, Corrosive Liquid, etc
2. Working Pressure: 0.1 to 6 bar
3. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
4. Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
5. Body Material: CPVC
6. Seal Material: EPDM, FKM
7. Operation: Piston Pilot Operated
8. Function: 2 Way Normally Closed
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
