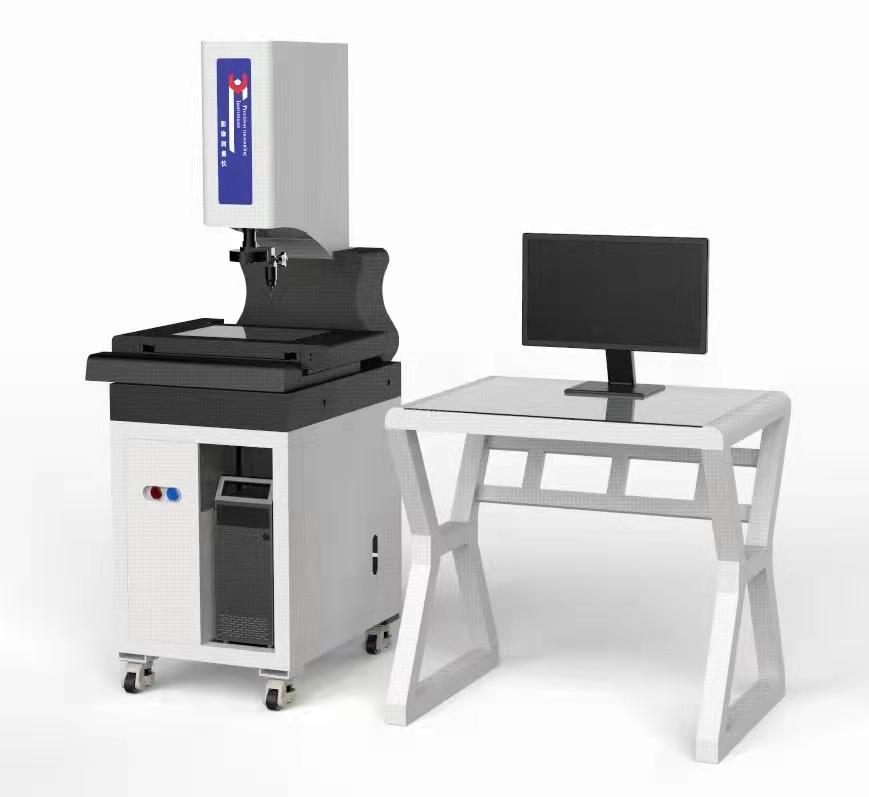

Fully automatic video measuring instrument

     A fully automatic Video Measuring Machine, which is an advanced stage of image measurement technology, is highly intelligent and automatic. The performance of its software and hardware makes the coordinate size measurement convenient, fast, and comfortable. It has an automatic learning function based on machine vision and process control. Relying on the high-speed and accurate micrometer-level displacement of digital instruments, it can self-learn and memorize the path of the measurement process, focusing, point selection, function switching, manual correction, light matching, and other operating processes. The full-automatic image measuring instrument can easily learn all the operator's practical operation processes, and achieve artificial intelligence by combining its automatic focusing, area search, target locking, edge extraction, and fuzzy operation of rational matching points. It can automatically correct the deviation caused by workpiece difference and displacement difference, and achieve accurate point selection, with high precision repeatability. Thus, the operators can be freed from the monotonous operations such as accurate visual alignment, frequent point selection, repeated displacement, function switching, and increasingly heavy tasks to be tested, and improve the efficiency of workpiece batch testing hundreds of times to meet the needs of industrial sampling inspection and mass testing.

The compact and portable appearance of the laser rangefinder and the "measurement and aiming integration" design make the laser and the line of sight in the same straight line, greatly reducing the error between the laser emission point and the line of sight, making the measurement results more accurate.

Main functions:

Point to point distance measurement+horizontal distance measurement+altitude measurement+pitch angle measurement

Optical magnification: 7 times;

Range in standard environment: 0-1000 m;

Ranging accuracy:+/- 30 cm;

Tilt range: ± 90deg

Tilt accuracy: ± 0.25deg

Units: feet, yards, meters, and degrees
