RCA102MM 4'' Manifold Flat Mount Remote Pilot Diaphragm Pulse Jet Valve For Dust Collector

2 year ago

13 0 

11 year

Product details

RCA102MM Goyen Type Remote Pilot Pulse Jet Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

1. Threaded Type
2. Straight Through Type
3. Dresser Nut Type
4. Flanged Type
5. Manifold Flat Mount Type

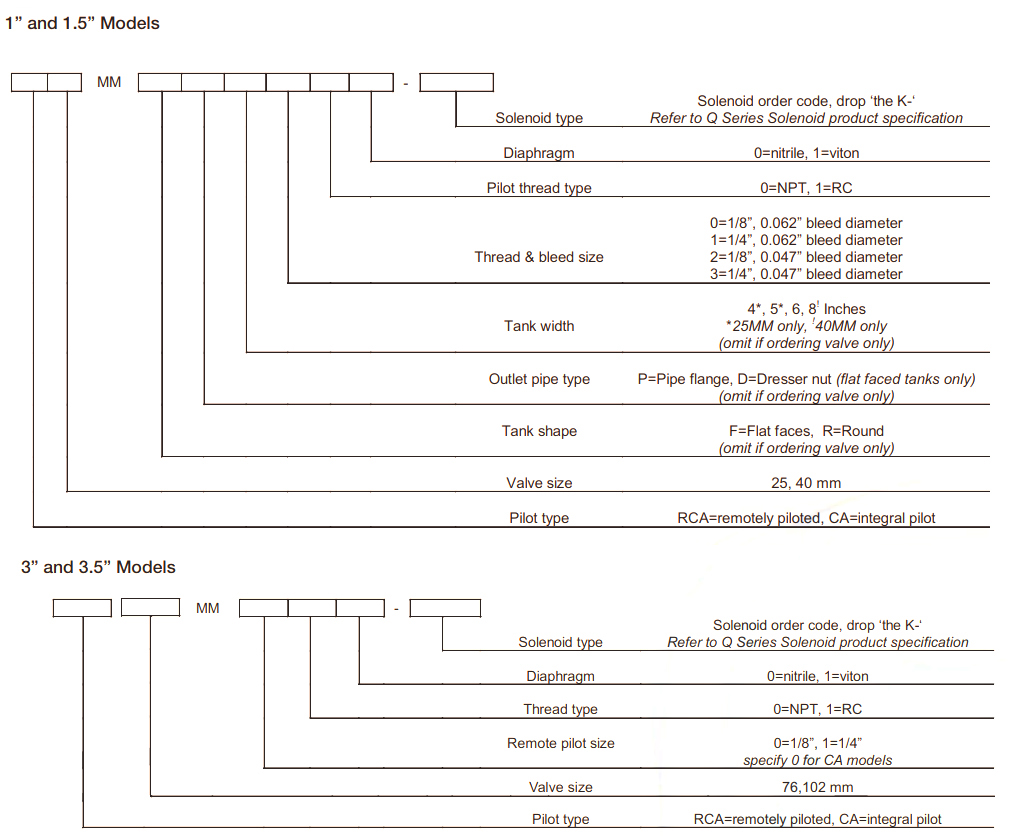

Order Code:

mm series order code

Technical Data:

Integral Pilot Model No	CA25MM	CA40MM	CA50MM	CA62MM	CA76MM	CA89MM	CA102MM
Remote Pilot Model No	RCA25MM	RCA40MM	RCA50MM	RCA62MM	RCA76MM	RCA89MM	RCA102MM
Pilot Size	1/8'', 1/4''
Port Size	1''	1 1/2''	2''	2 1/2''	3''	3 1/2''	4''
Orifice Size	25mm	40mm	50mm	62mm	76mm	89mm	102mm
Body Material	Aluminum (diecast)
Diaphragm Material	NBR (standard) FKM (optional)
Working Pressure	5 to 125 psi
Voltage	24VDC, 24VAC, 110VAC, 220VAC

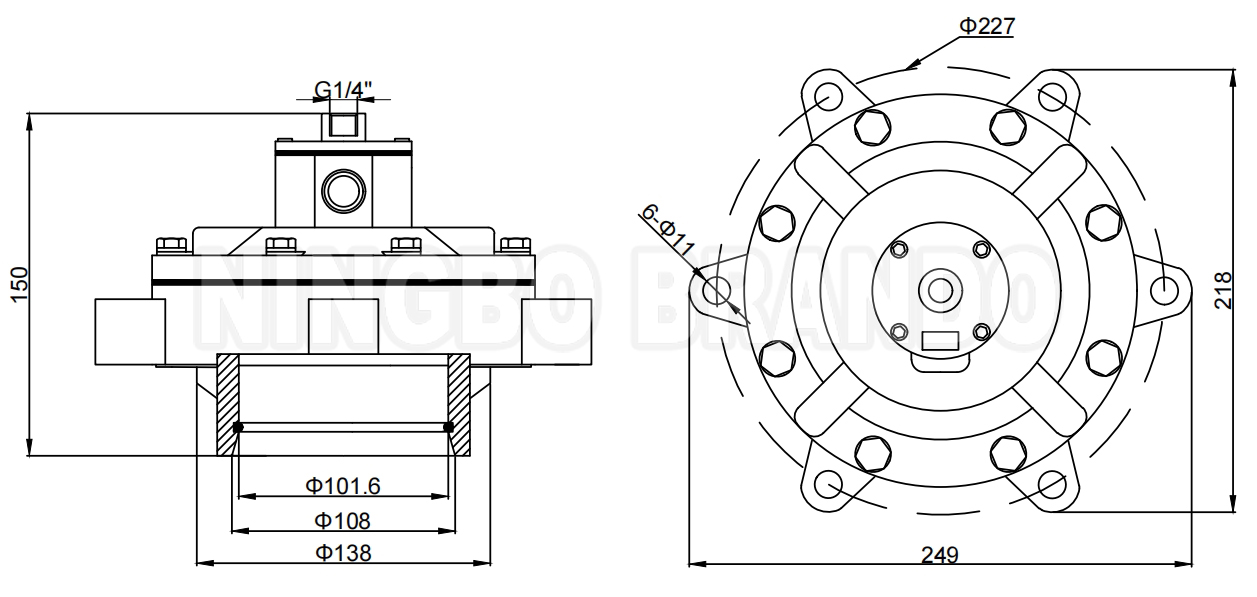

RCA102MM Dimension:

RCA102MM Dimension-LOGO

Our Production:

pulse valve production

Related Products:

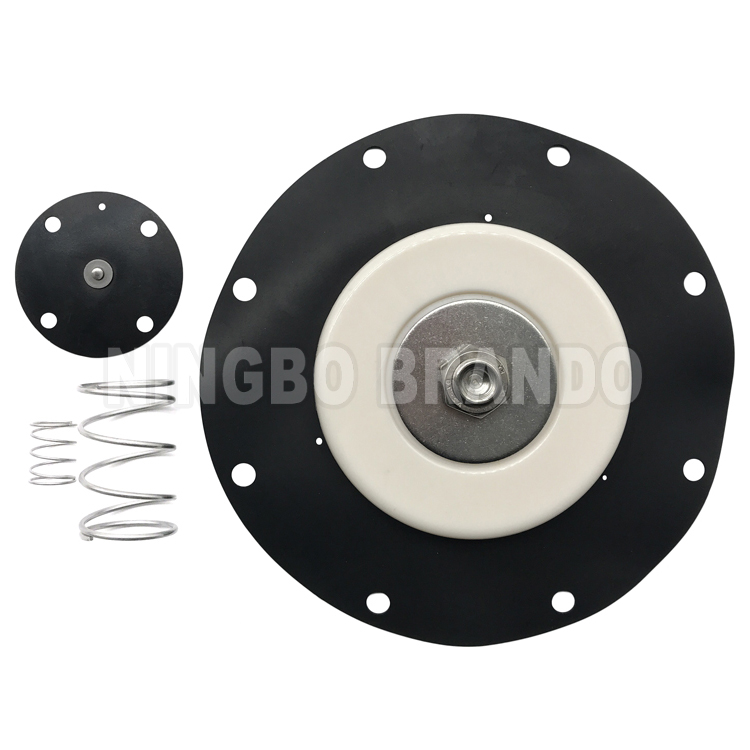

Pneumatic Fitting	Diaphragm	Remote Pilot Box	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change

√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
