MF-Y-25 1'' Submerged Remote Pilot Diaphragm Pulse Jet Valve For Dust Collector Tank

2 year ago

16 0 

11 year

Product details

BFEC MF-Y-25 1'' Submerged Remote Pilot Pulse Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

1. Right Angle Type
2. Submerged Type
3. Quick Mount Type
4. Straight Through Type
5. Flanged Type

Technical Data:

Integral Pilot Model No	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
					DMF-YA-76S	DMF-Y-102SA
					DMF-YB-76S	DMF-Y-102SE
Remote Pilot Model No	MF-Y-25	MF-Y-40S	MF-Y-50S	MF-Y-62S	MF-Y-76S	MF-Y-102S
					MF-YA-76S	MF-Y-102SA
					MF-YB-76S	MF-Y-102SE
Remote Pilot Size	1/8'', 1/4''
Port Size	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR (standard) FKM (optional)
Body Material	Aluminum
Working Pressure	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

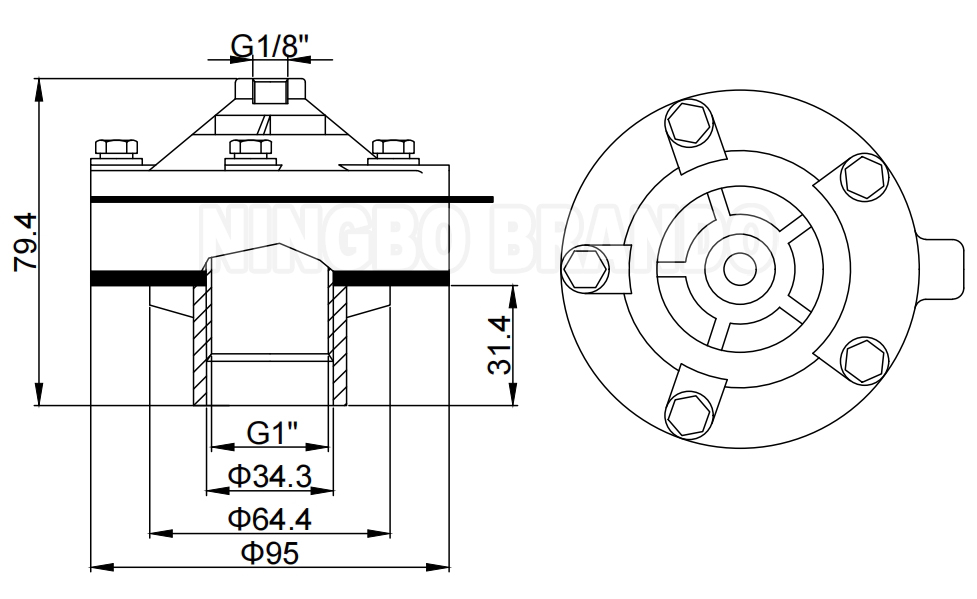

MF-Y-25 Dimension:

MF-Y-25 Dimension-logo

Our Production:

Pulse Valve Production

Related Products:


Pneumatic Fitting	Diaphragm	Remote Pilot Box	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change

√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
