3/4'' Chemical Acid Alkali Resistant Anti Corrosion PTFE Solenoid Valve 24V 110V 220V

3/4'' Corrosion Resistant PTFE Solenoid Valve 24V 220V

This is an anti corrosive PTFE solenoid valve, 3/4'' female threaded port size, 20mm orifice size, 2 way normally closed, piston pilot operated, 0.1 to 6 bar working pressure, can be EPDM, FKM or PTFE seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Product Features:
1. Working Media: Chemical, Acid, Alkali, Corrosive Liquids, etc
2. Working Pressure: 0.1 to 6 bar
3. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2''
4. Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 60mm
5. Body Material: PTFE
6. Seal Material: EPDM, FKM, PTFE
7. Function: 2 Way Normally Closed
8. Operation: Pilot Piston Operated
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

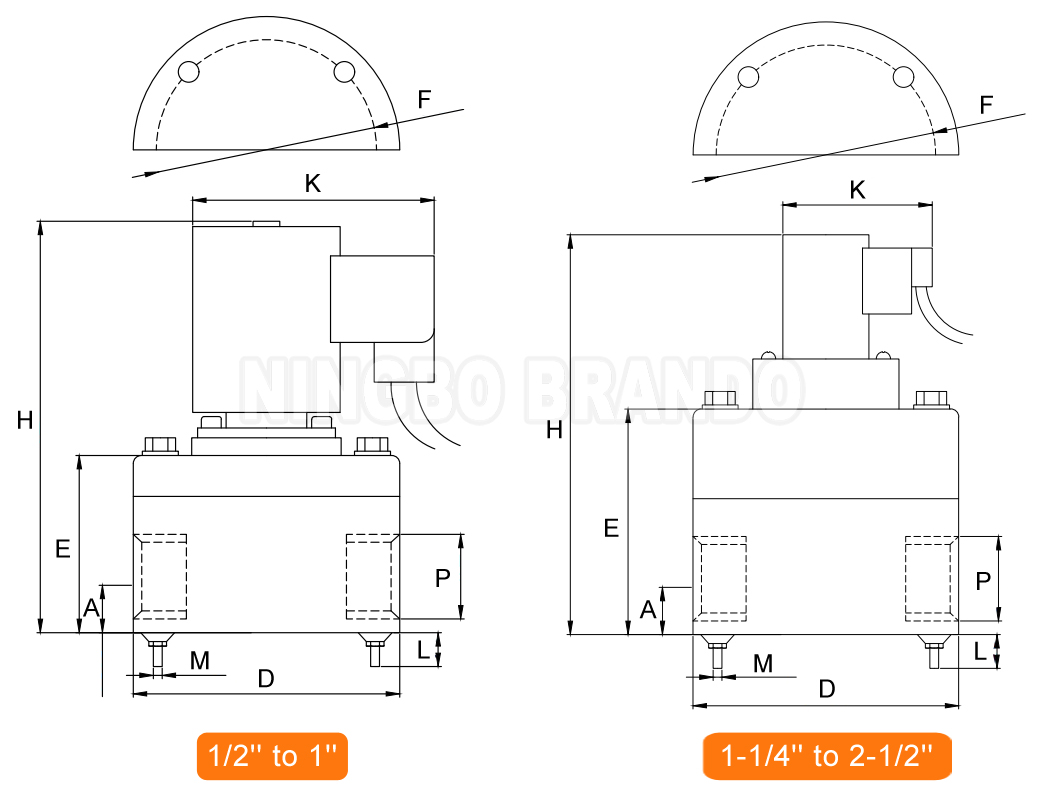

Technical Data:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
