2V025-06 Solenoid Valve For Air Water 1/8'' 12VDC 24VDC 24VAC 110VAC 220VAC
2 year ago
2V025-06 Solenoid Valve 1/8'' 12VDC 24VDC 110VAC 220VAC
This is 2V025-06 solenoid valve, 1/8'' port, 2.5mm orifice, 0 to 10 bar, plunger direct acting, 2 way normally closed, aluminum alloy body, NBR standard seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc, small and compact structure, high sensibility allows it to change direction quickly.
Technical Data:
|
Model No
|
2V025-06
|
2V025-08
|
|
Working Media
|
Air, Water, Gas, Liquid, Light Oil, etc
|
|
|
Operation
|
Direct Acting
|
|
|
Function
|
2 Way Normally Closed
|
|
|
Orifice Size
|
2.5mm
|
|
|
Cv
|
0.23
|
0.25
|
|
Port Size
|
1/8''
|
1/4''
|
|
Viscosity Limit
|
Under 20CST
|
|
|
Pressure Range
|
0 to 1 MPa (0 to 145psi)
|
|
|
Proof Pressure
|
1.5 MPa (215psi)
|
|
|
Body Material
|
Aluminum Alloy
|
|
|
Seal Material
|
NBR (Standard), EPDM, FKM (Optional)
|
|
|
Activating Time
|
0.05 sec and below
|
|

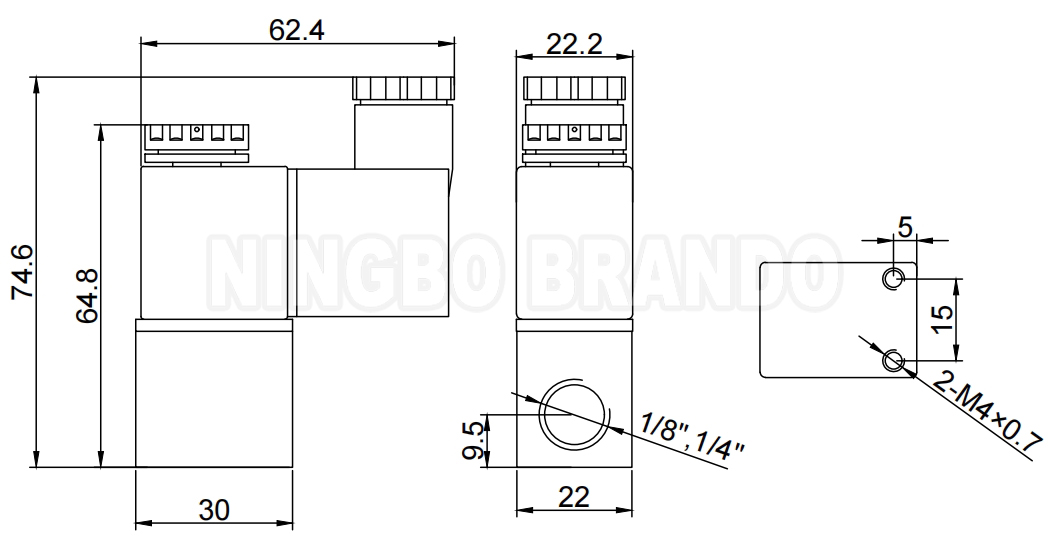

Main Dimension:
