DMF-Z-62S 2.5'' BFEC Solenoid Pulse Jet Diaphragm Valve For Dust Collector 24V 220V

BFEC DMF-Z-62S 2-1/2'' Integral Pilot Pulse Jet Valve

MF-Z-62S bag house pulse valve, DC24V DN62 2.5 inch diaphragm valve for dust collector. Right angle diaphragm valve system with special springless piston/diaphragm design offers highest peak pressure and best flow performance operating features required for dust collector applications. The high quality diaphragm guarantees a long operating life and a large temperature range.

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

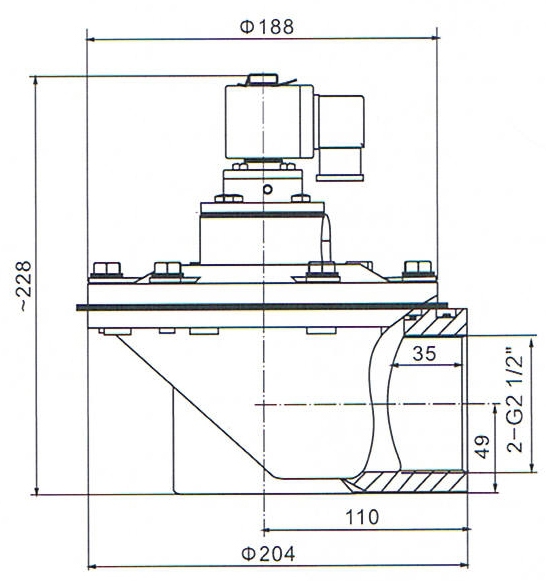

Main Dimension of DMF-Z-62S Dust Collector Pulse Valve:

Technical Data of Dust Collector Diaphragm Valve:

Model No	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1		2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Working Pressure Range	0.1 to 0.8 MPa
Coil Voltage	110VAC, 220VAC, 24VDC

More SBFEC Type Pulse Jet Valve for you to choose:

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type
Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
