9934 1/4'' Solenoid Valve For Steam Iron Boiler 24V 110V 120V 220V 230V
2 year ago

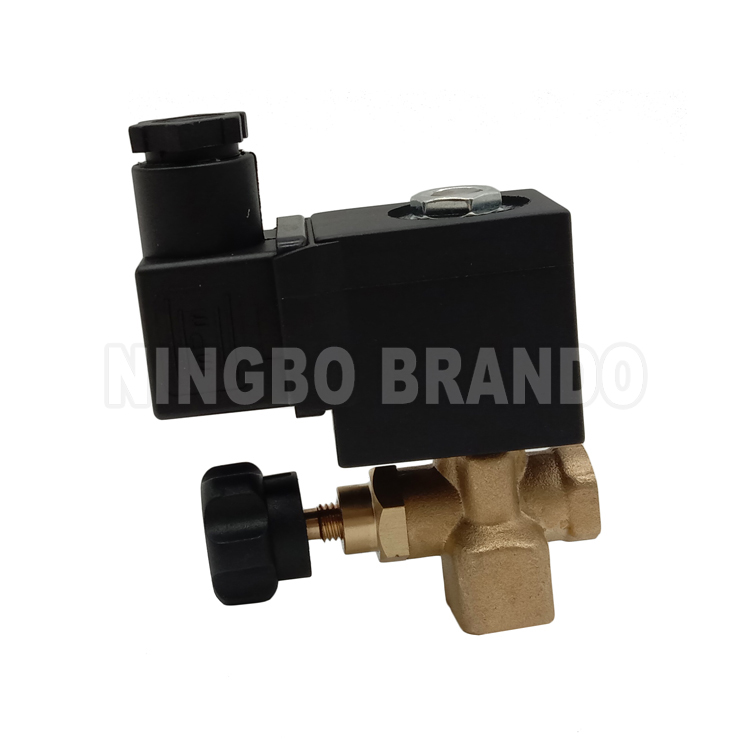

9934 CEME Type Steam Iron Machine Solenoid Valve
Product Features:
1. Model No: 9934
2. Port Size: 1/4''
3. Orifice Size: 2mm to 3mm
4. Body Material: Brass
5. Seal Material: EPDM, FKM
6. Working Medium: Steam
7. Working Temperature: EPDM: -30 ℃ to +120℃, FKM: -30 ℃ to +150℃
8. Working Pressure: 0 to 10 bar
9. Voltage: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)
10. Application: Steam Iron, Steam Boiler, etc

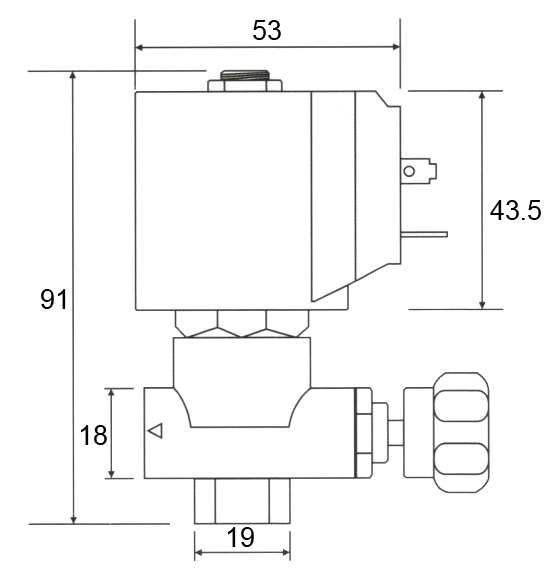

Dimension and Data of 9934 Solenoid Valve:
|
Model No
|
9934
|
|
Port Size
|
1/4''
|
|
Orifice Size
|
2mm to 3mm
|
|
Body Material
|
Brass
|
|
Seal Material
|
EPDM, FKM
|
|
Working Medium
|
Steam
|
|
Working Medium Temperature Range
|
EPDM: -30 ℃ to +120℃
FKM: -30 ℃ to +150℃ |
|
Working Pressure Range
|
0 to 10 bar
|
|
Operation
|
Direct Acting
|
|
Function
|
2 Way Normally Closed
|
|
Voltage
|
DC: 12V, 24V
AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)
|
BRANDO Solenoid Valve Production Video:

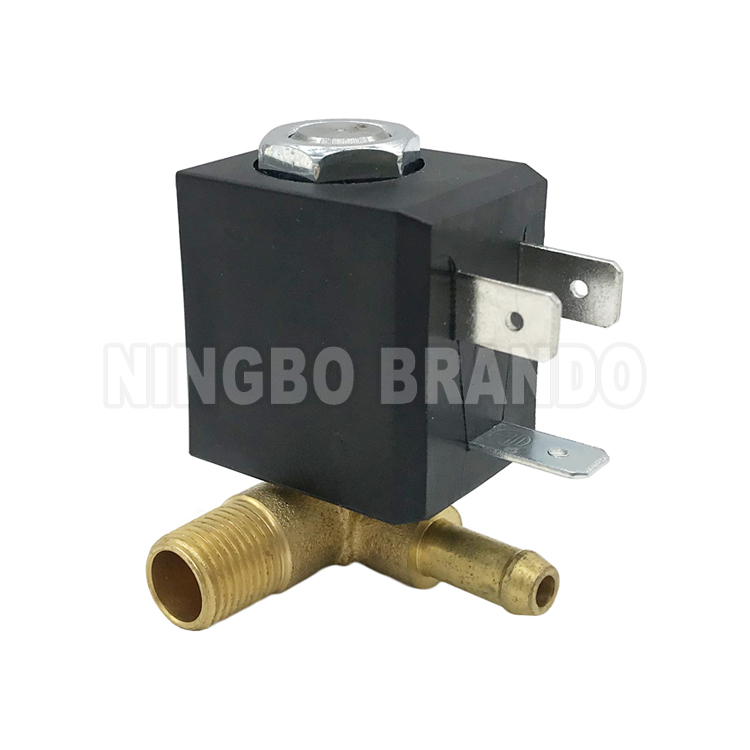

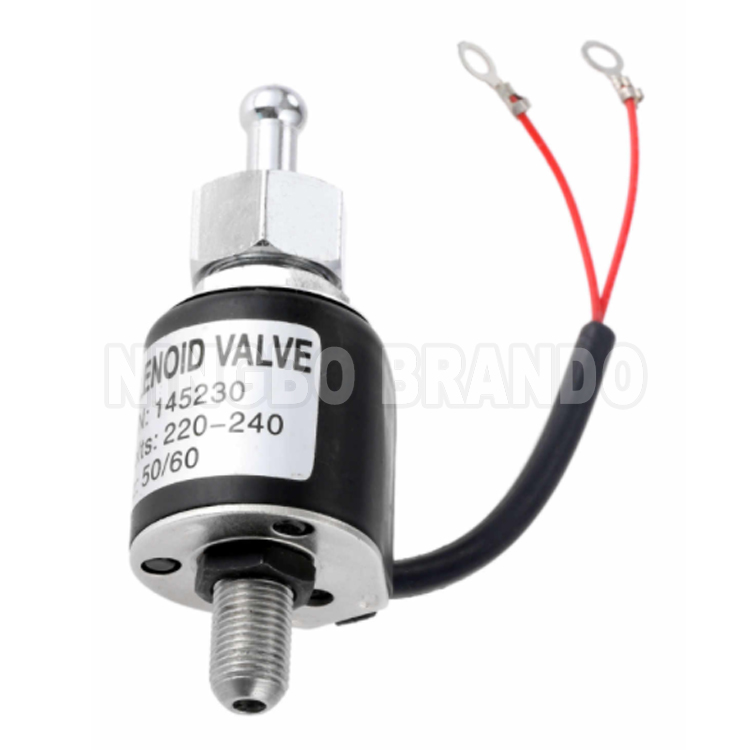

More Steam Iron Solenoid Valves for you to choose:
 |
 |
 |
