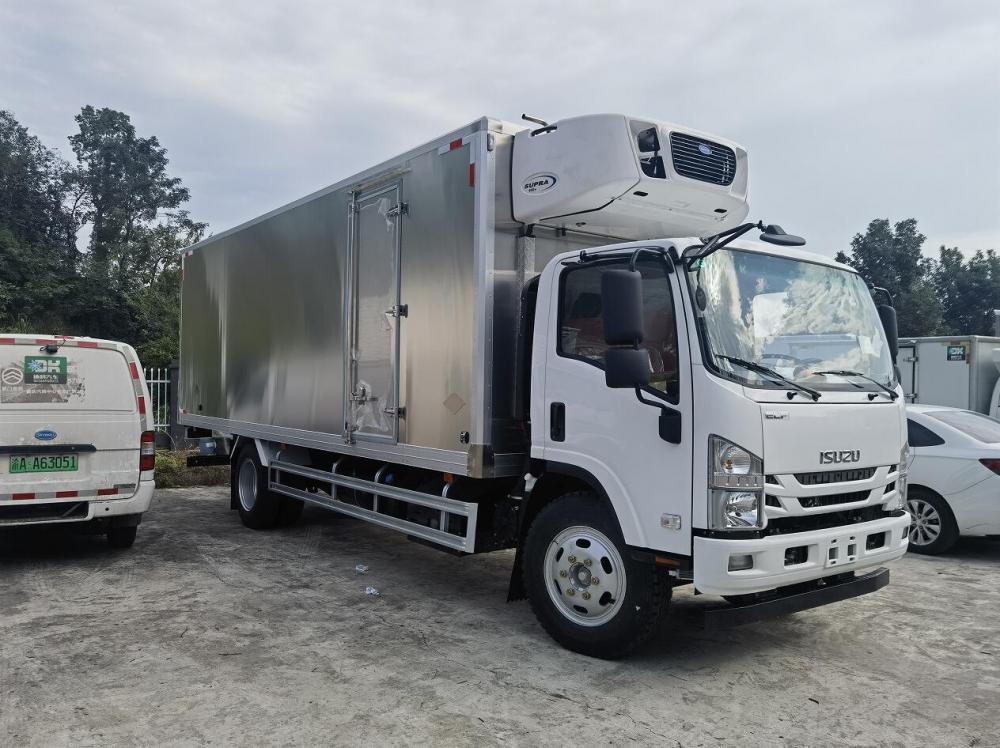

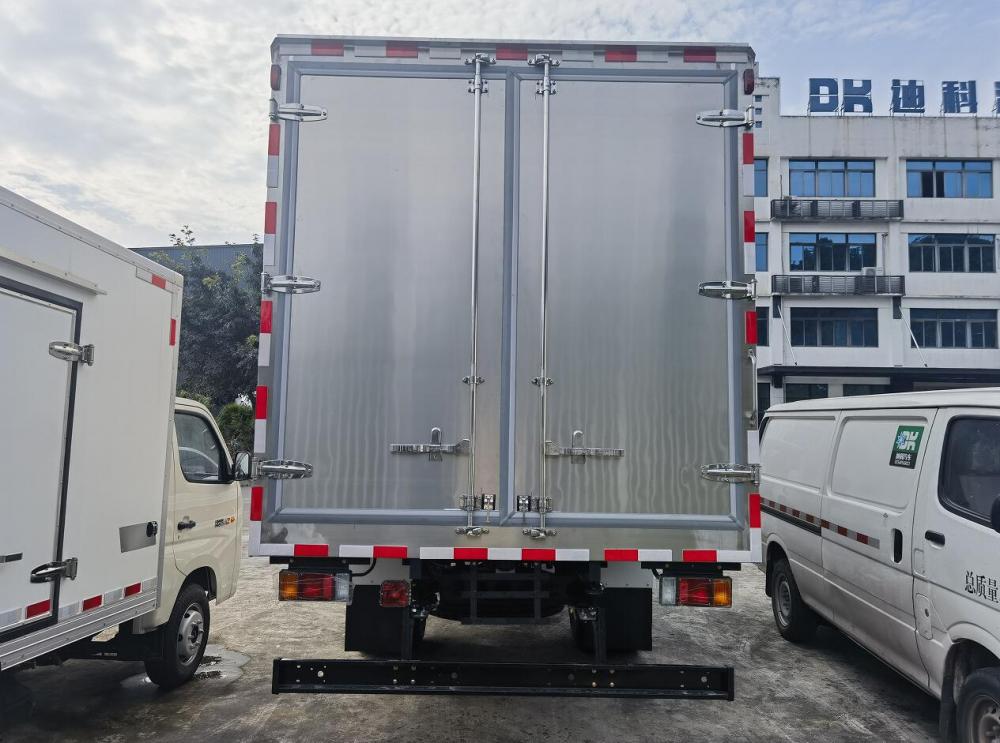

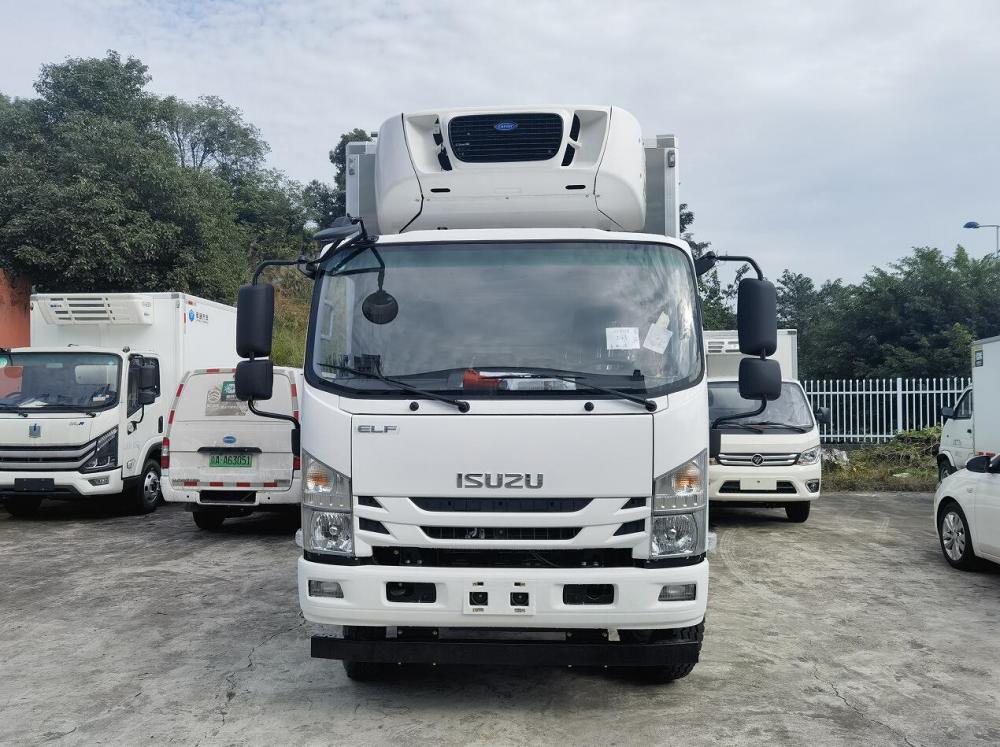

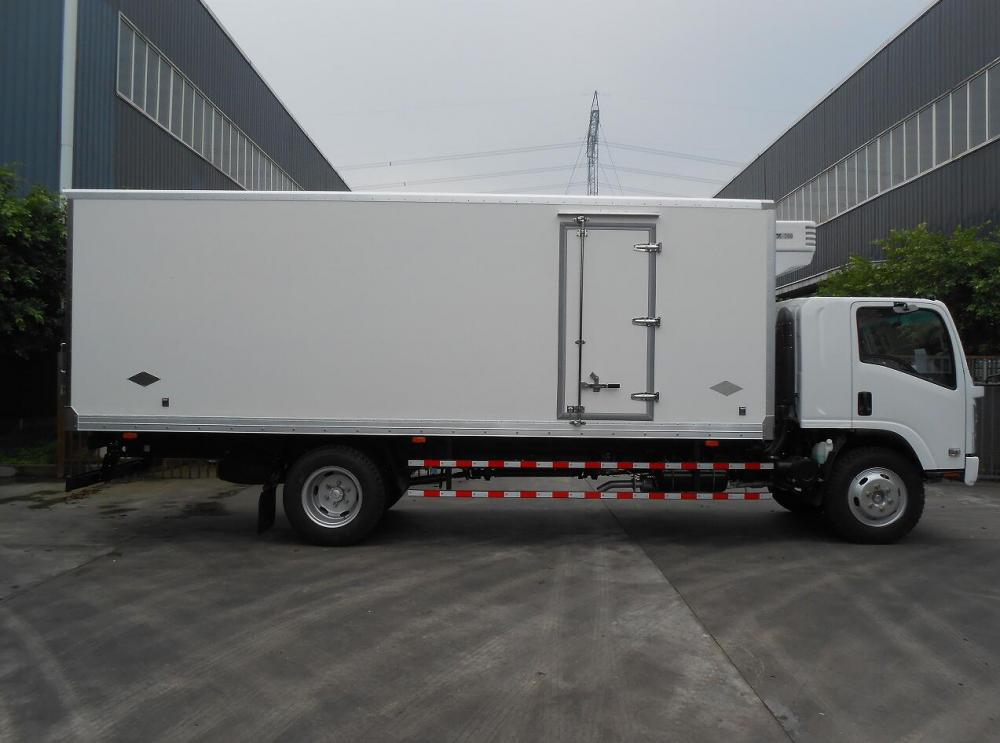

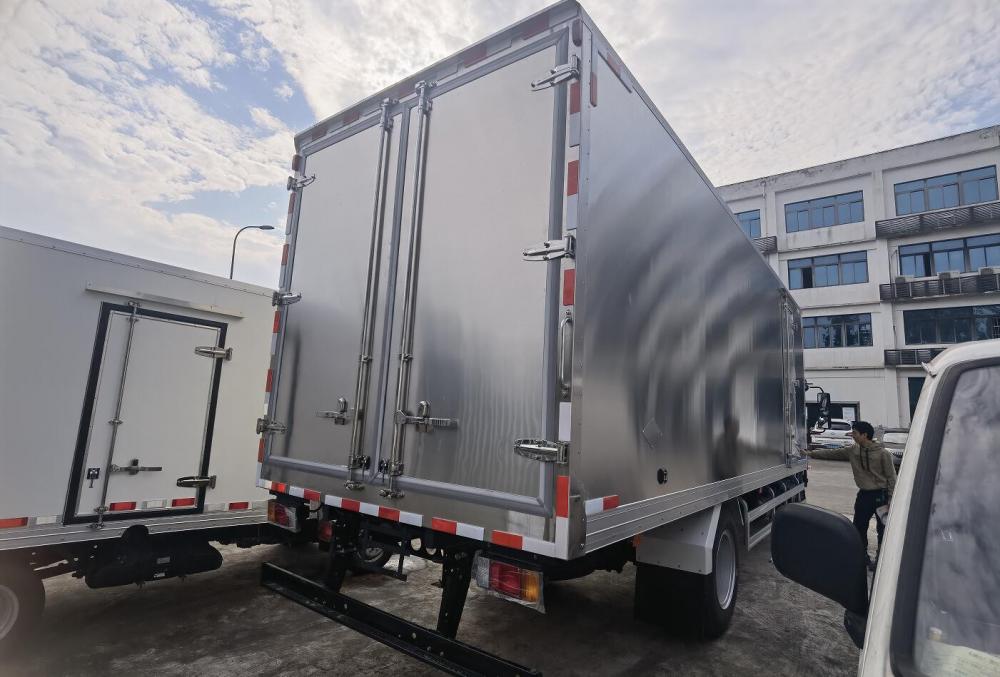

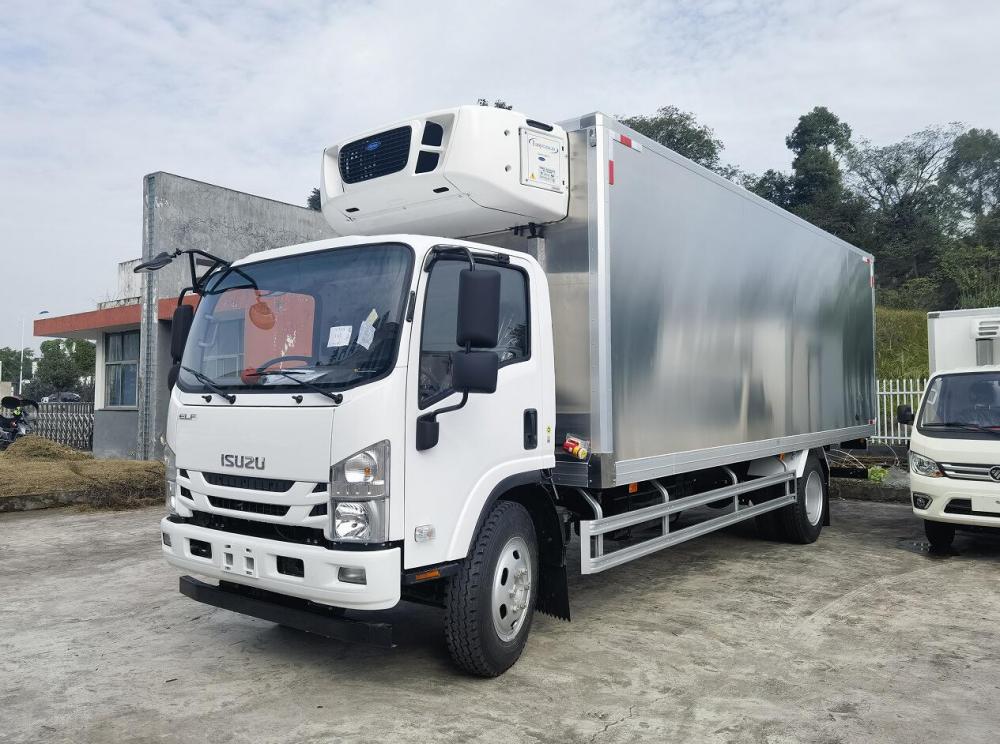

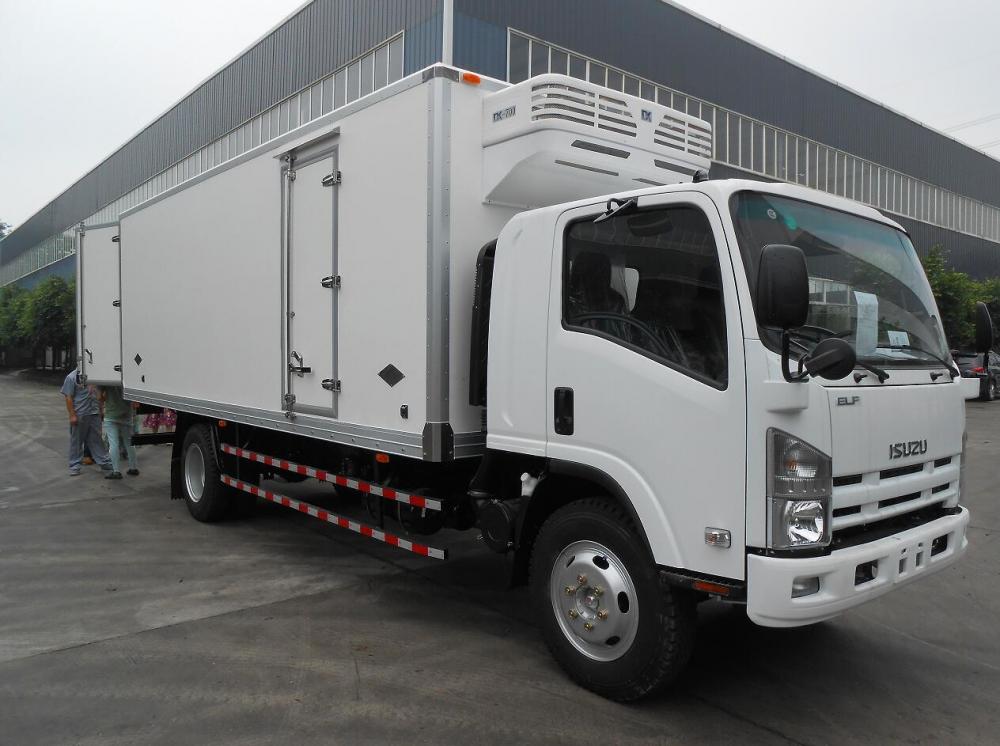

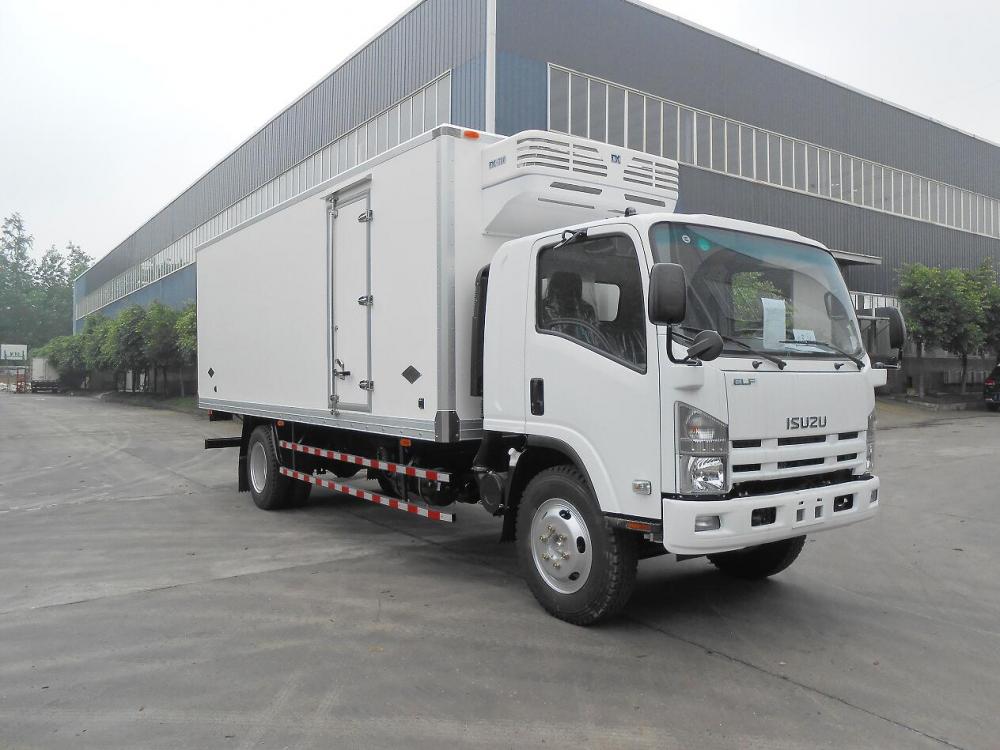

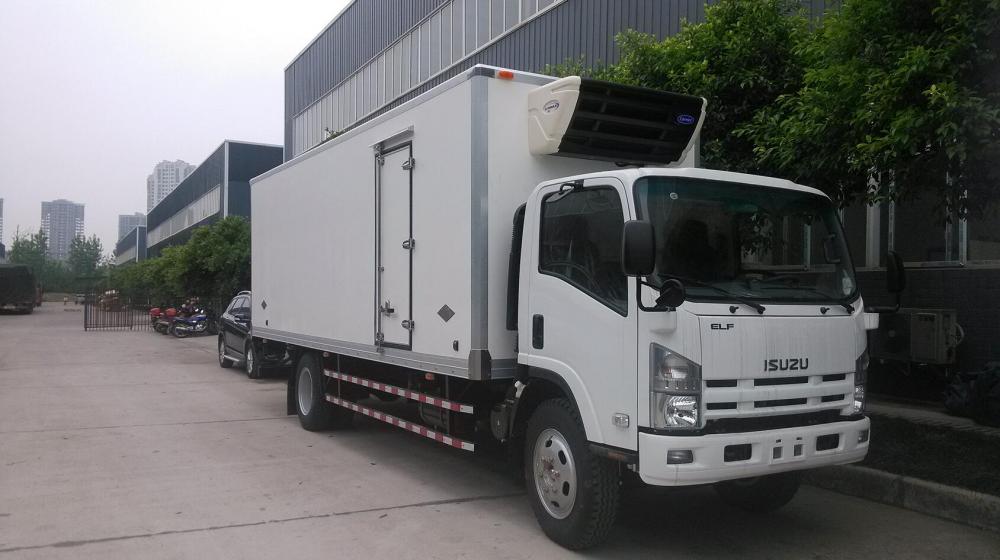

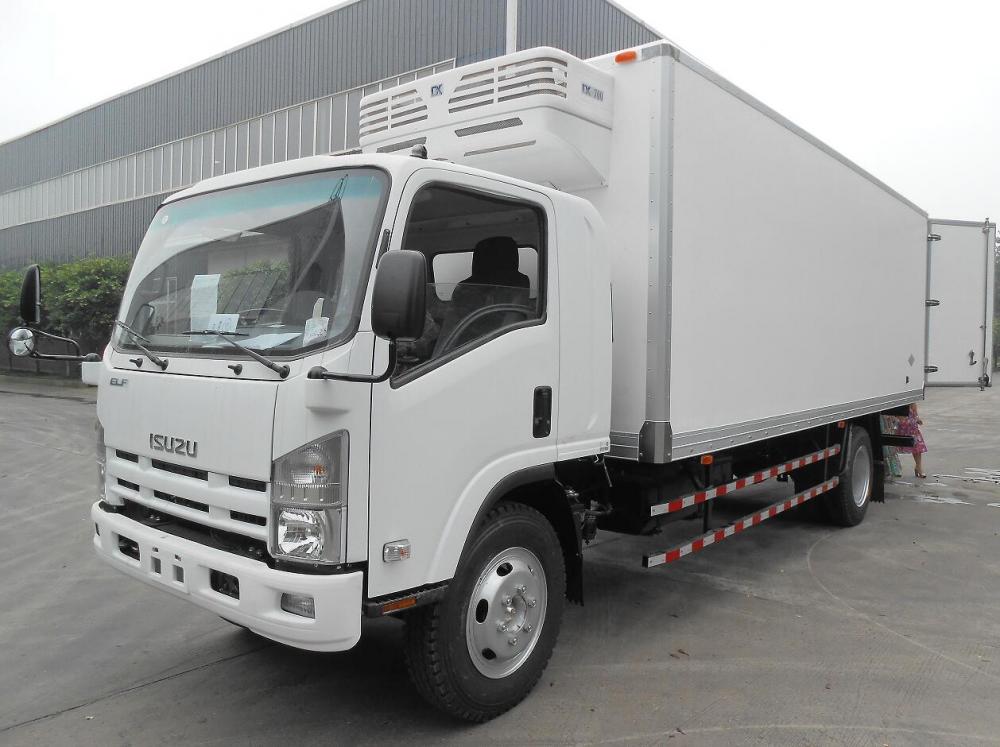

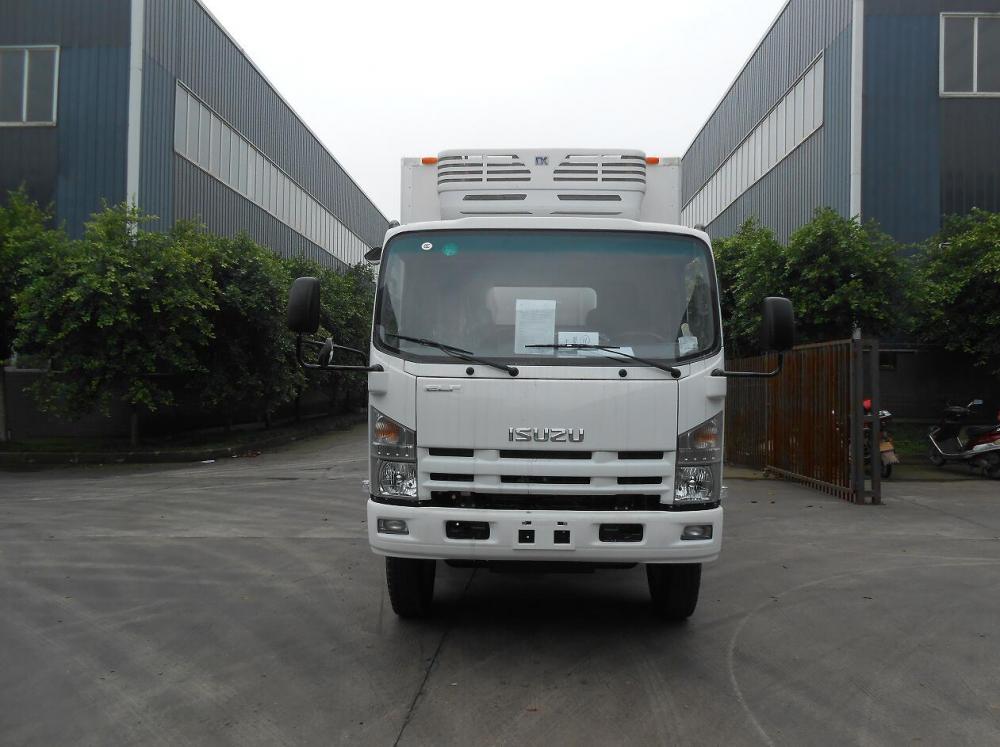

Isuzu 700p Refrigerated Truck
11 month ago

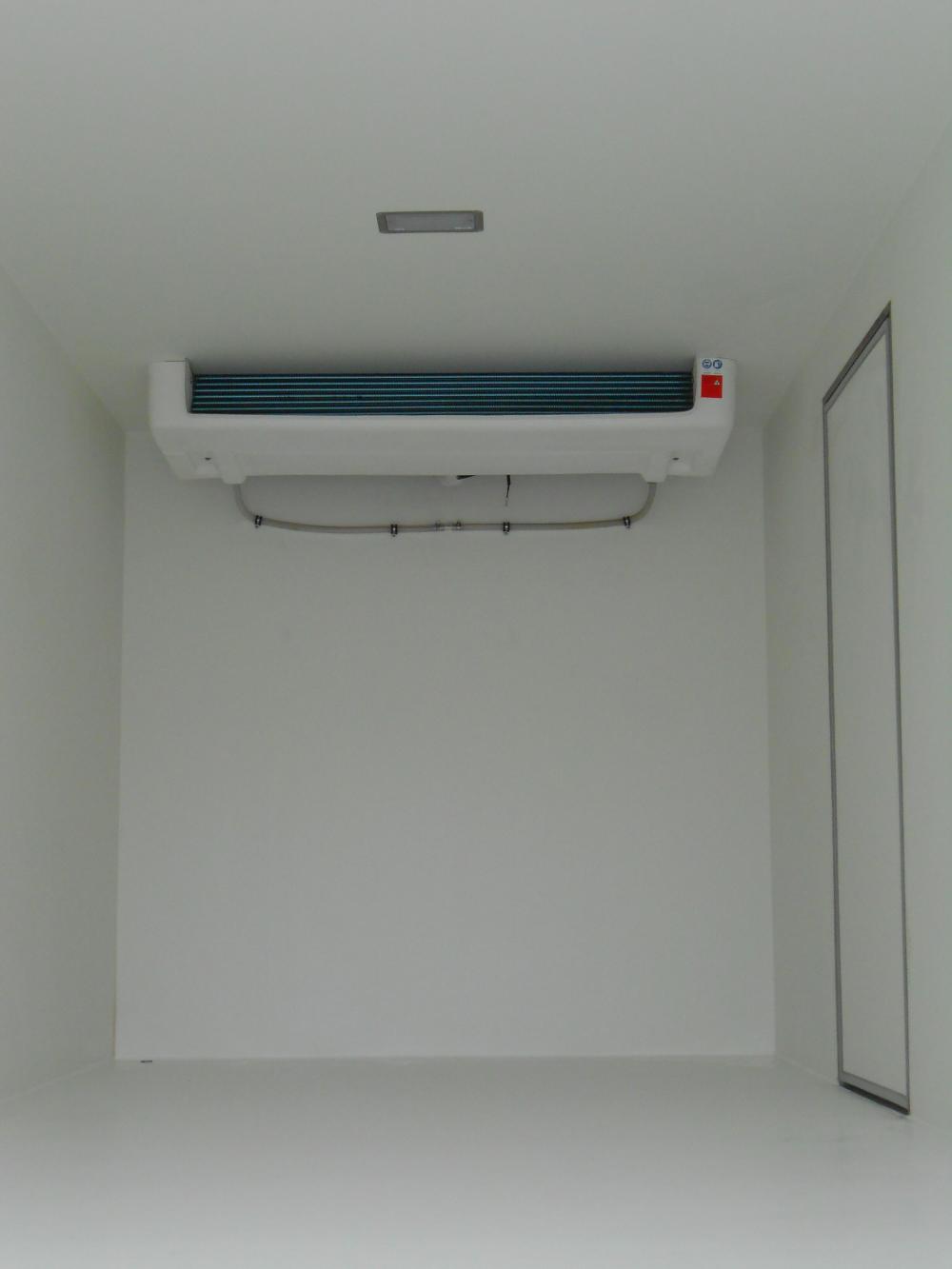

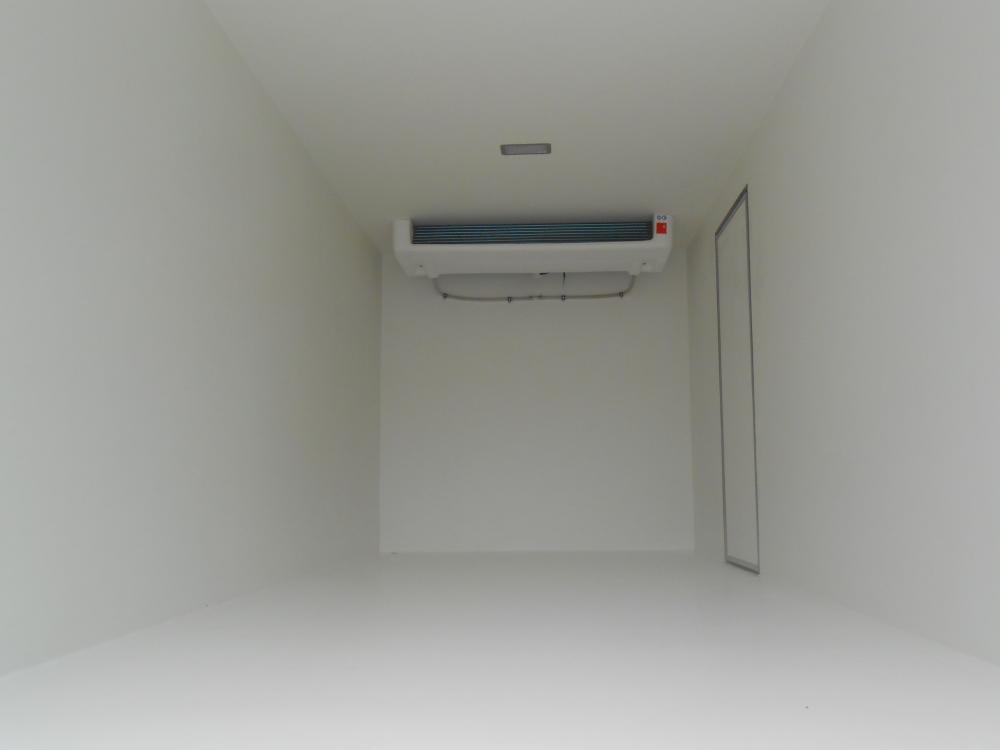

Many users of refrigerated trucks have a misconception that the refrigeration unit on the refrigerated truck can freely freeze or heat the goods loaded into the compartment to the desired temperature. Therefore, the goods that do not meet the temperature requirements for transportation are loaded into the carriage, and the refrigeration unit is set to the required transportation temperature. After a certain period of time, the temperature of the goods is reduced or increased to the required temperature. However, in reality, the opposite is true: not only does the temperature of the goods fail to drop (or rise), but it also damages or deteriorates the goods. Because the refrigeration unit of the refrigerated truck does not lower the temperature of the goods, but maintains the temperature of the goods. It is like the cotton quilt we used to sell cold drinks in the past, wrapping the goods. When the external cold (hot) source enters the compartment through radiation, conduction, and convection, the cold air blown out by the refrigeration unit is taken away, isolating the heat source from entering the goods.
|
Technical parameters of the entire vehicle |
|||
|
Product trademark |
Qingling brand |
product name |
refrigerated truck |
|
Total mass (Kg) |
10550 |
|
|
|
Rated load capacity (Kg) |
4805 |
External dimensions (mm) |
8955x2590,2270x3400,3480 |
|
Curb weight (Kg) |
5550 |

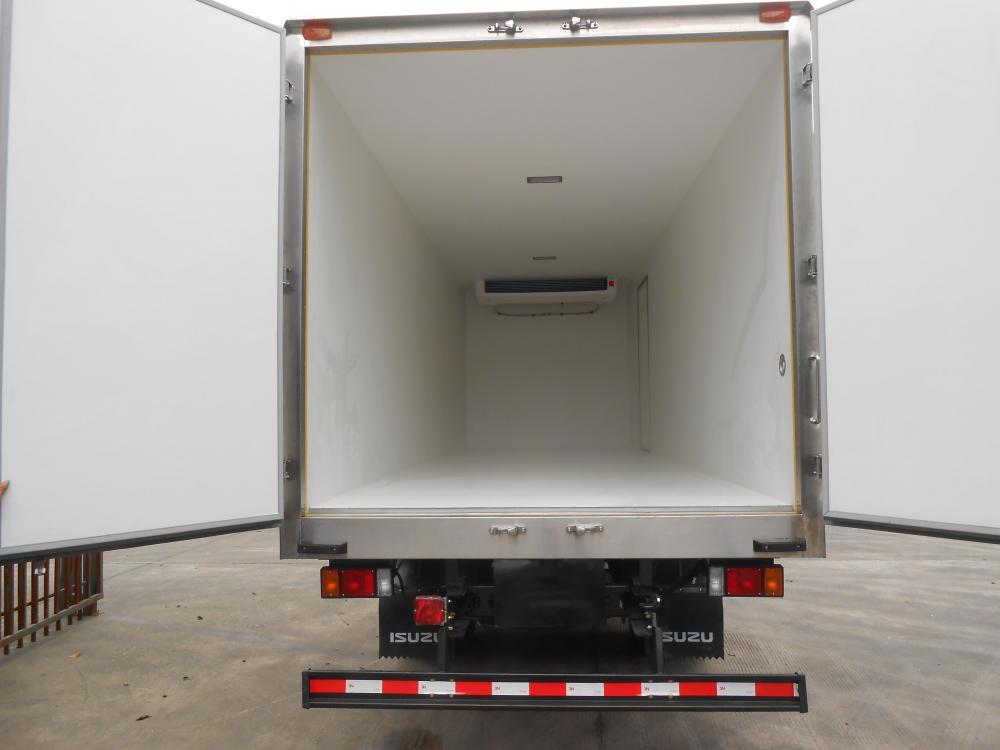

Cargo compartment size (mm) |
6890x2420,2100x2100 |
|
Approach angle/departure angle (°) |
16/10,19/13 |
Front/rear suspension (mm) |
1110/2645 |
|
Axle load (Kg) |
3500/7050 |
Maximum speed (km/h) |
110 |
|
notes |
1. The net power of the engine of the car is 138kw, the engine model is 4HK1-TCG61, the fuel consumption value is 17.8L/100km, and the corresponding VIN is LWLDAANK XXXXXXXXXXXXXXXXXX; 2. The top of the box truck is closed and cannot be opened; 3. It is allowed to install single side door opening or not; Optional tires are installed with the chassis. When 8.25R20 14PR tires are installed, the vehicle height is 3480mm, and when 235/75R17.5 16PR tires are installed, the vehicle height is 3400mm; 4. Side protection material: steel plate Q235, connection method: bolted to the bottom plate of the carriage; Rear protection material: steel plate SAPH440 with a thickness of 3.2mm, connection method: The rear protection bracket is connected to the rear end of the longitudinal beam of the frame with bolts. The size of the rear protection section is 140 × 50 (mm), and the ground height is 480mm; 5. The vehicle is equipped with ABS, and the ABS and controller model is APG3550500H1. The manufacturer is Zhejiang Asia Pacific Electromechanical Co., Ltd; 6. Optional engine 4HK1-TCG60, with a net power of 150kw and a fuel consumption value of 17.8L/100km, corresponding to VIN: LWLDAAJK xxxxxxxxxxxxxxxx; 7. Optional rearview mirror style and "NQR" badge with chassis; 8. Different units with equivalent power from different manufacturers can be optionally installed; 9. This vehicle model can be equipped with ETC onboard device. 10. Hydraulic lifting tailboard is optional. The tailboard has a mass of 450kg and a retracted extension of 280mm. The rear protective material is steel plate SAPH440 with a thickness of 3.0mm. The connection method is to connect the rear protective bracket to the rear end of the longitudinal beam of the frame with bolts. The size of the rear protective section is: φ 114 x 3.0 (mm), ground height: 405mm. |
||
|
manufacturing enterprise |
Qingling Motors Company Limited |
Chassis brand |
Isuzu |
|
number of axles |
2 |
Number of tires |
6 |
|
wheelbase |
5200 |
||
|
Tire Size |
235/75R17.5 16PR,8.25R20 14PR |
||
|
Number of steel plate springs |
8/10+6 |
||
|
Front wheelbase (mm) |
1680 |
Rear wheelbase (mm) |
1650 |
|
fuel type |
diesel oil |
Emission standards |
GB17691-2018 National VI |
|
Engine model |
Engine Manufacturer |
Displacement (ml) |
Power (Kw) |
|
4HK1-TCG61 |
Isuzu (China) Engine Co., Ltd
Isuzu (China) Engine Co., Ltd |
5193 |
139 |
