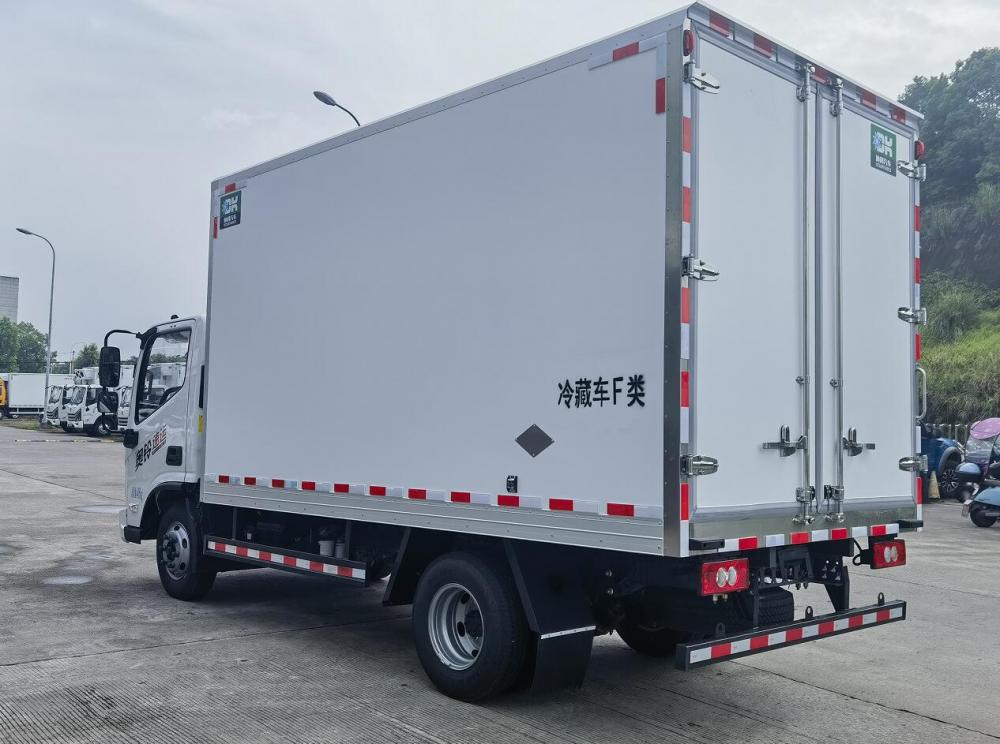

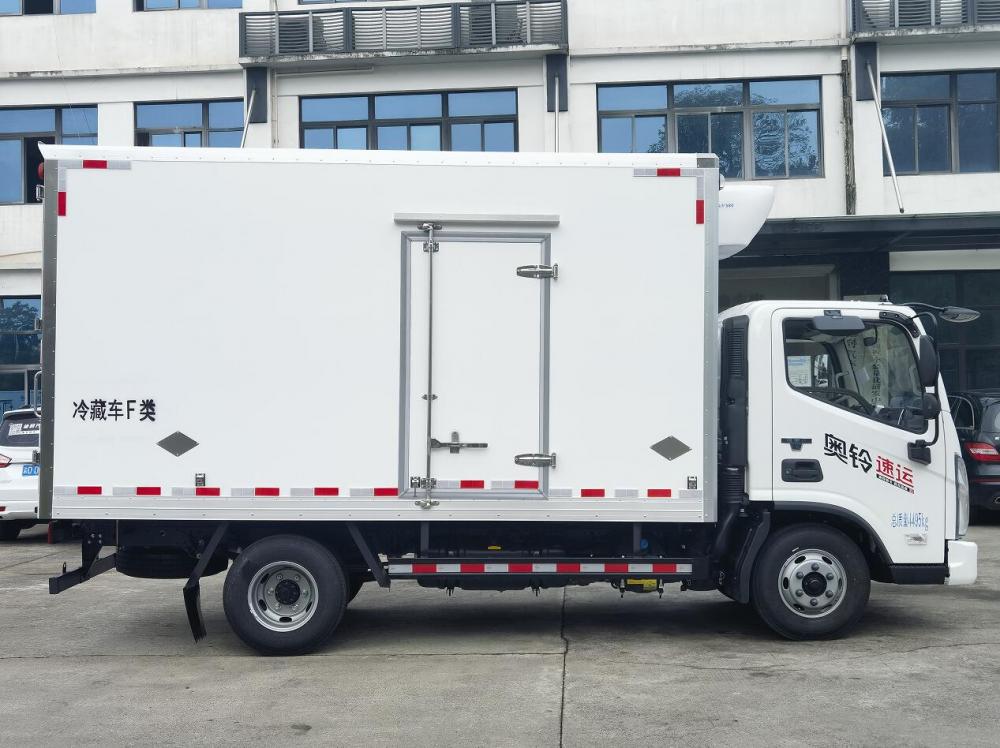

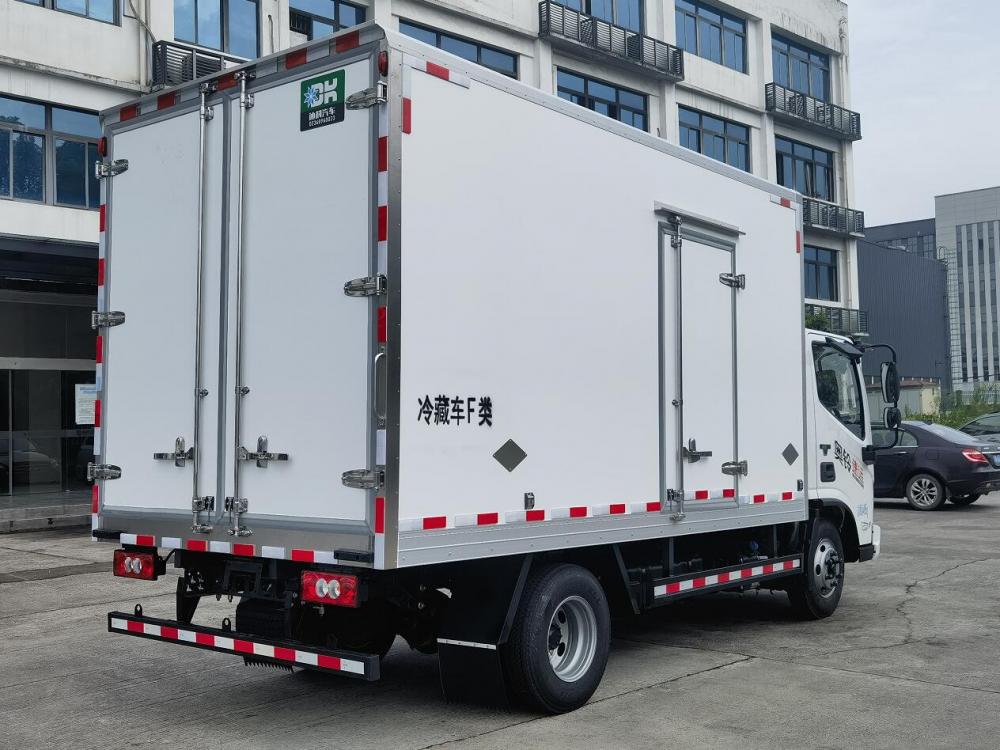

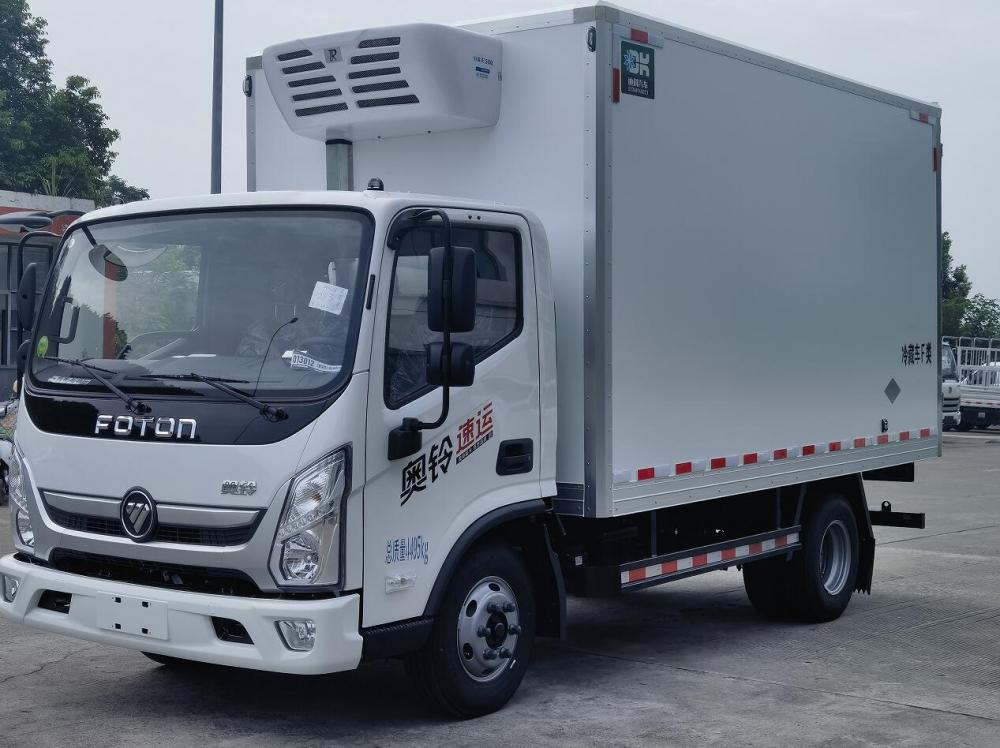

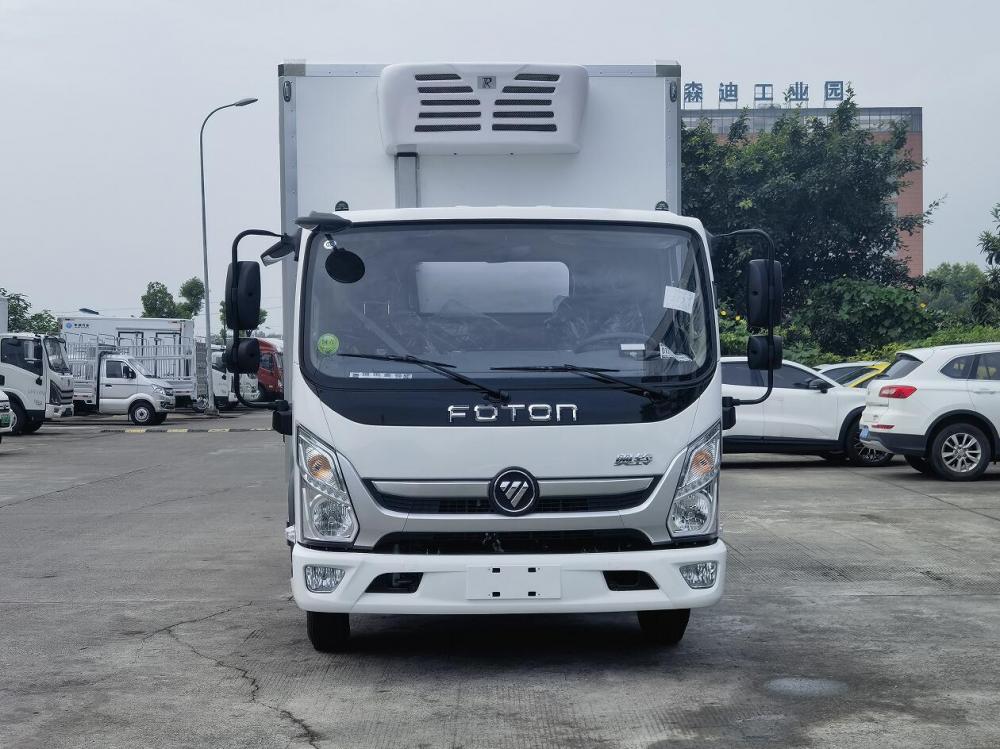

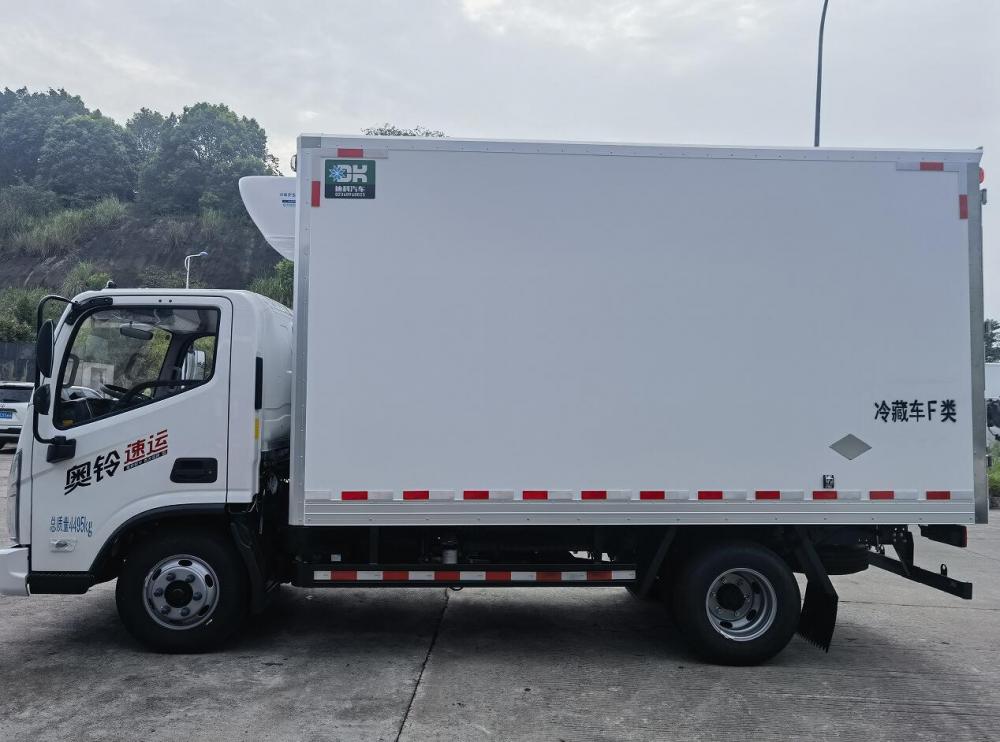

Fukuda Aoling Refrigerated Truck
11 month ago
characteristic

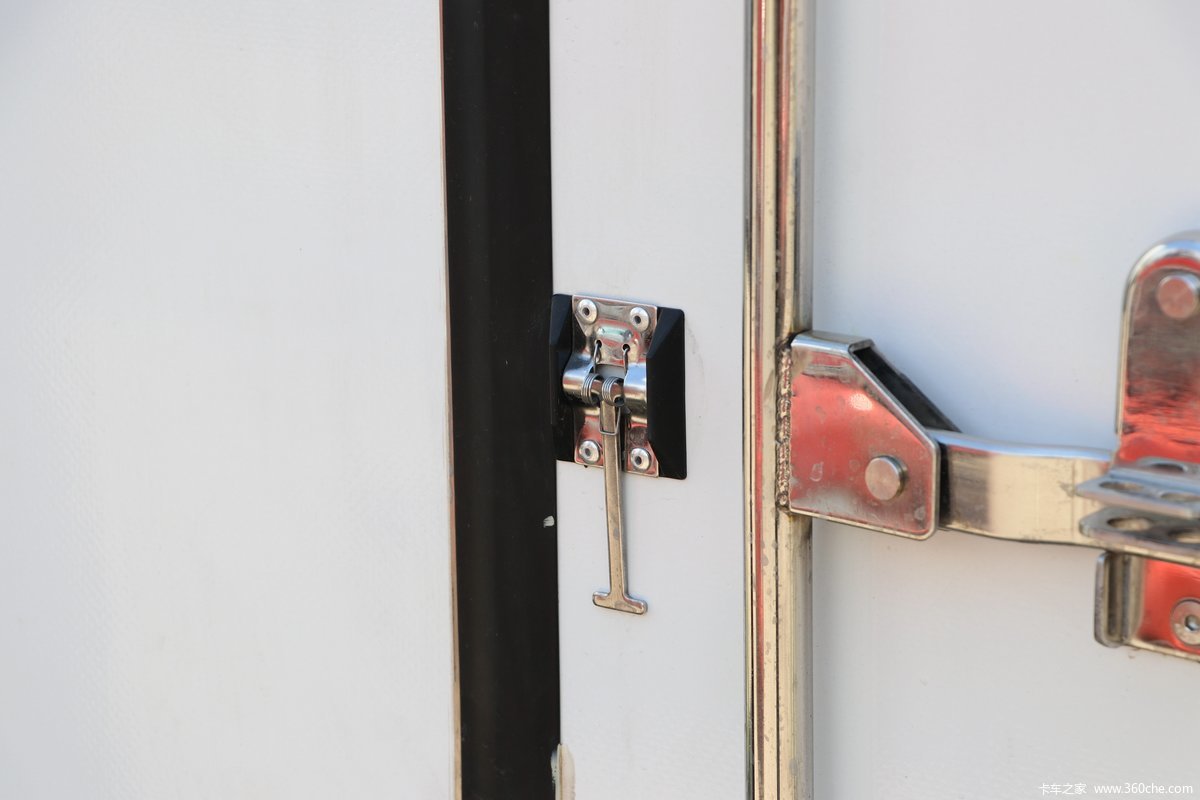

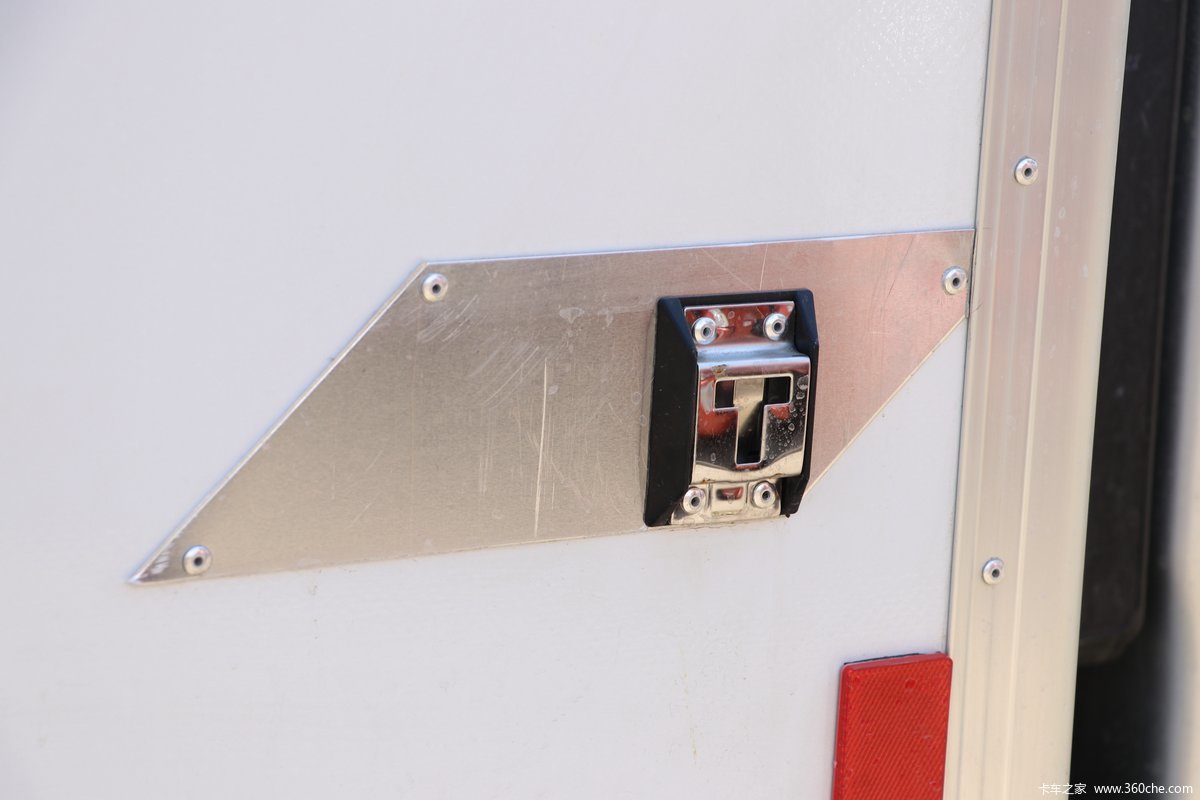

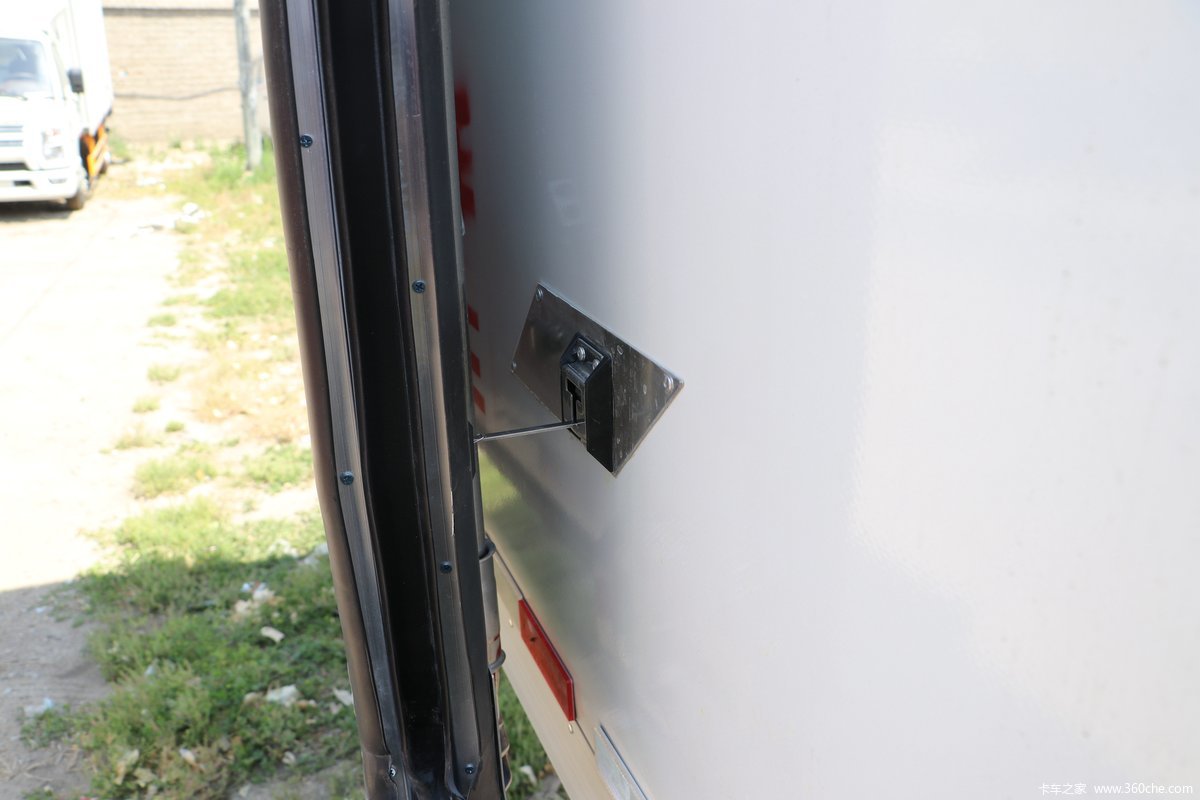

The container of a sealed refrigerated truck needs to be tightly sealed to reduce heat exchange with the outside world and maintain a lower temperature inside the refrigerated container.
Refrigerated truck

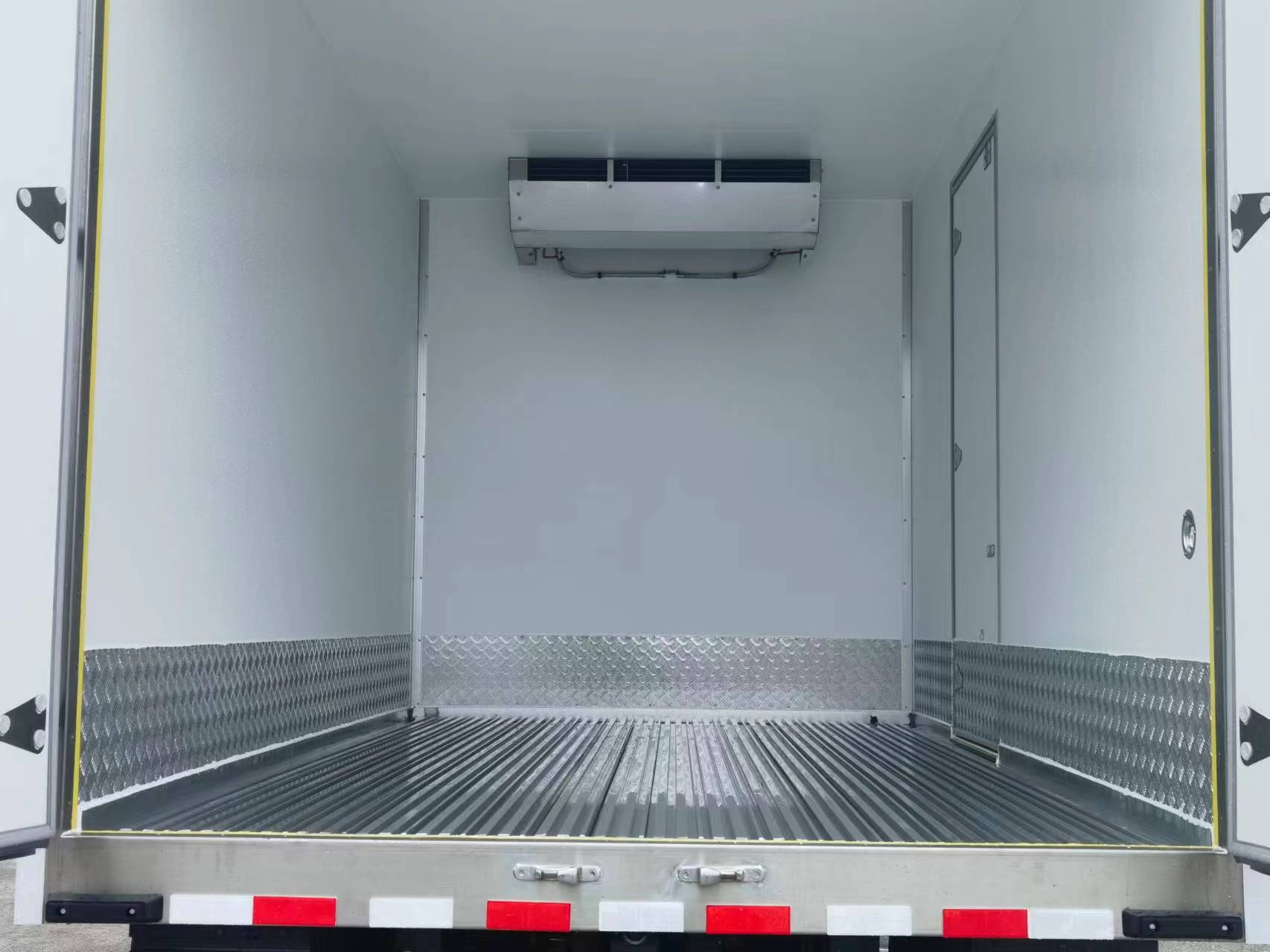

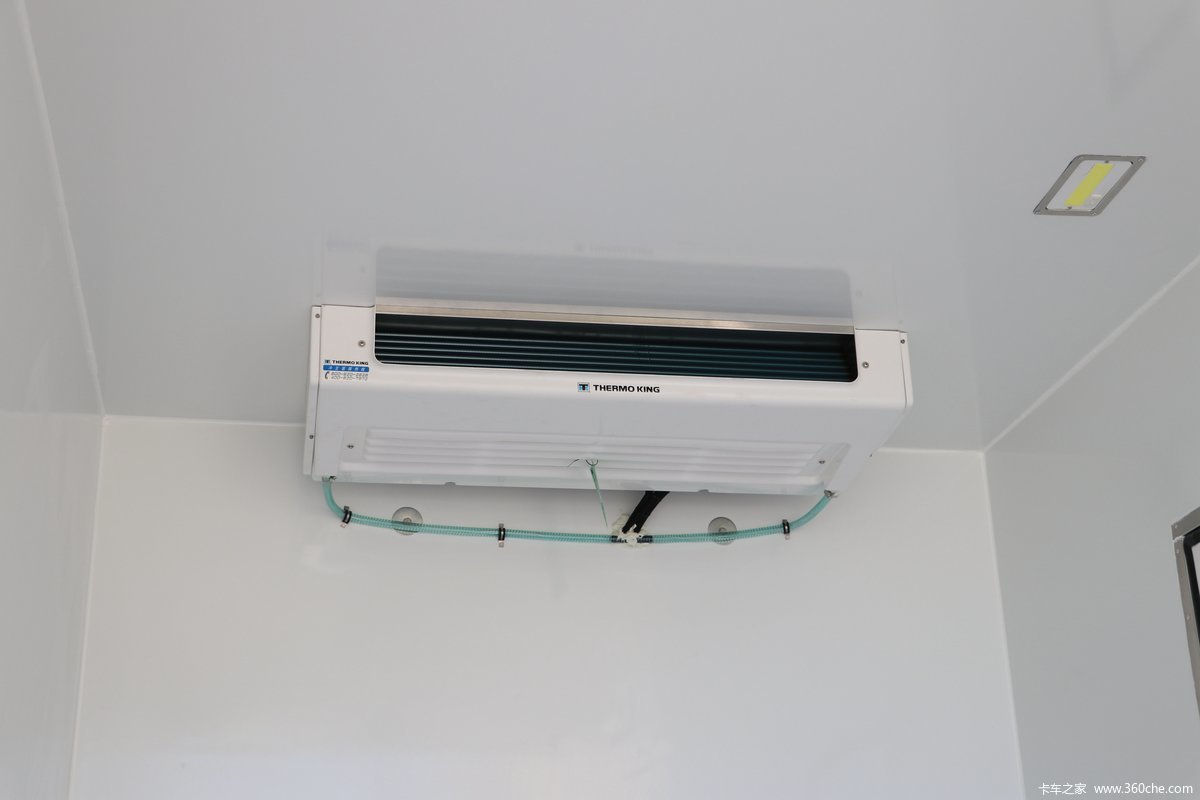

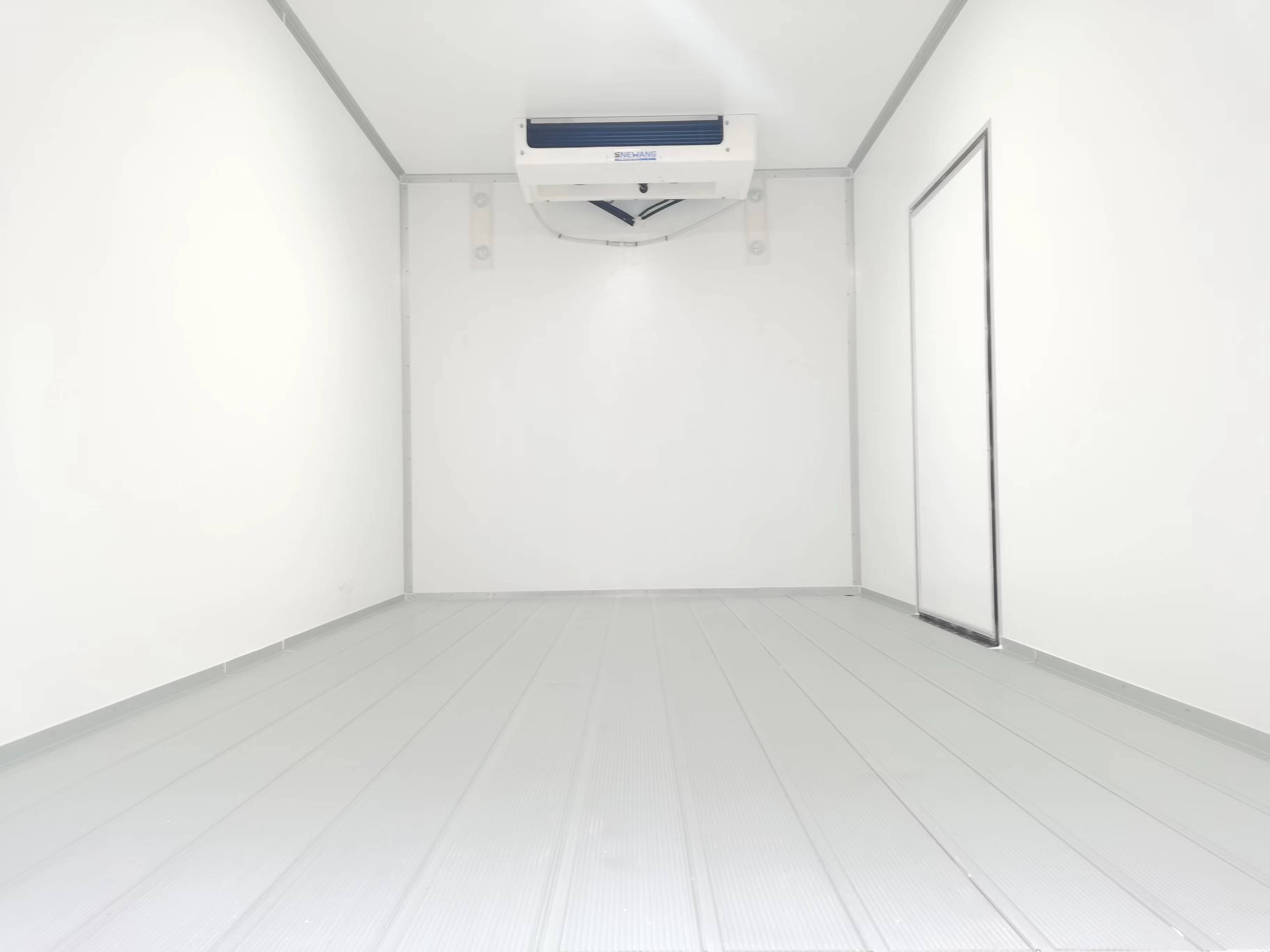

The refrigeration equipment equipped with refrigeration is connected to the container and provides a continuous source of cooling, ensuring that the temperature of the container is within the allowable range of the goods.
The goods transported by lightweight refrigerated trucks are usually items that cannot be stored for a long time. Although there is refrigeration equipment, they still need to be delivered to the destination quickly.

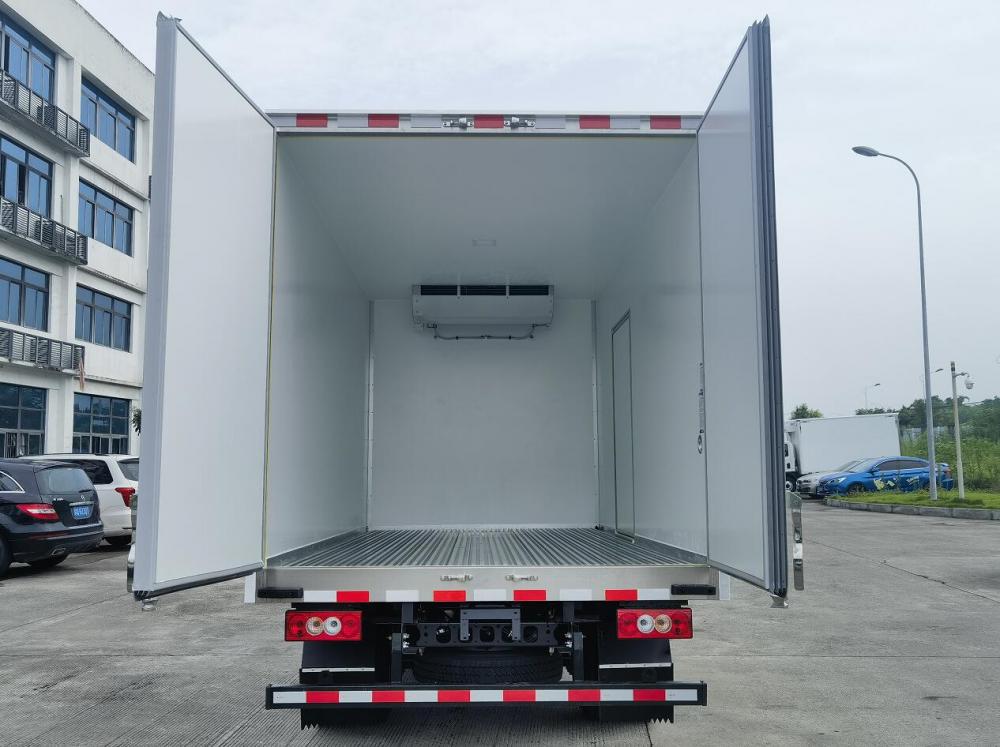

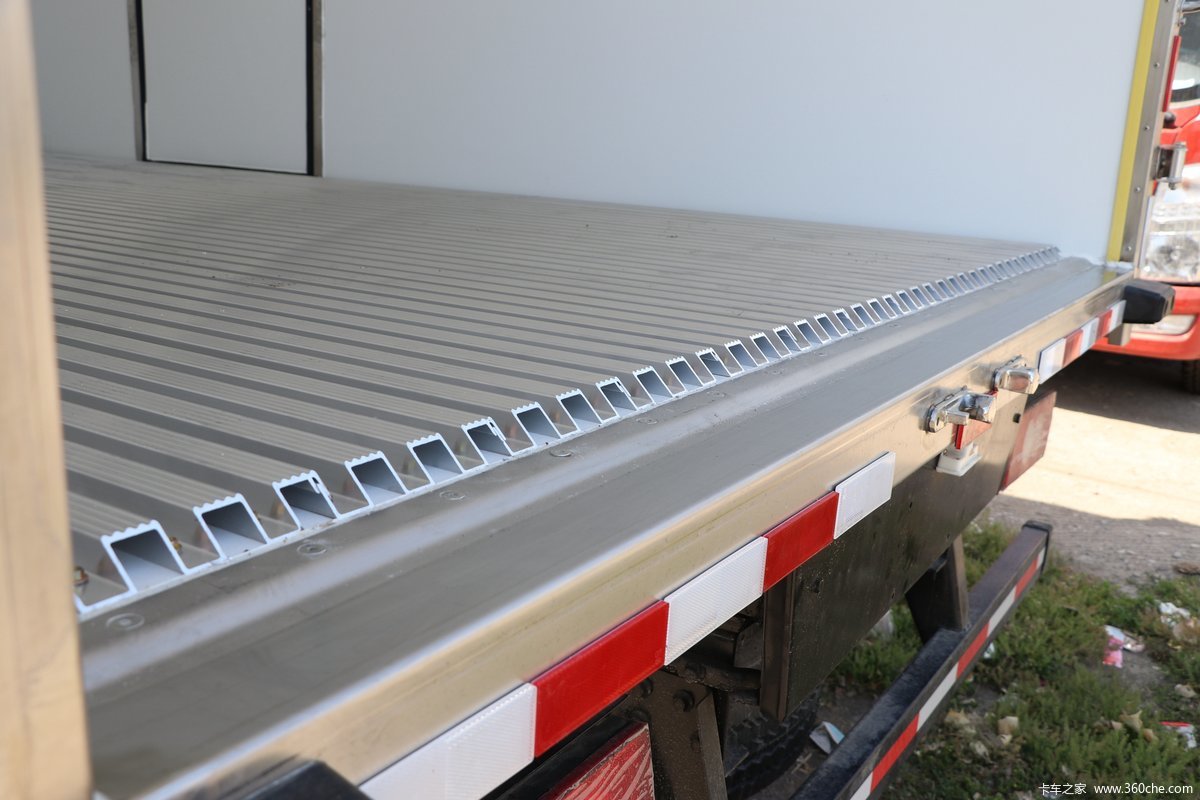

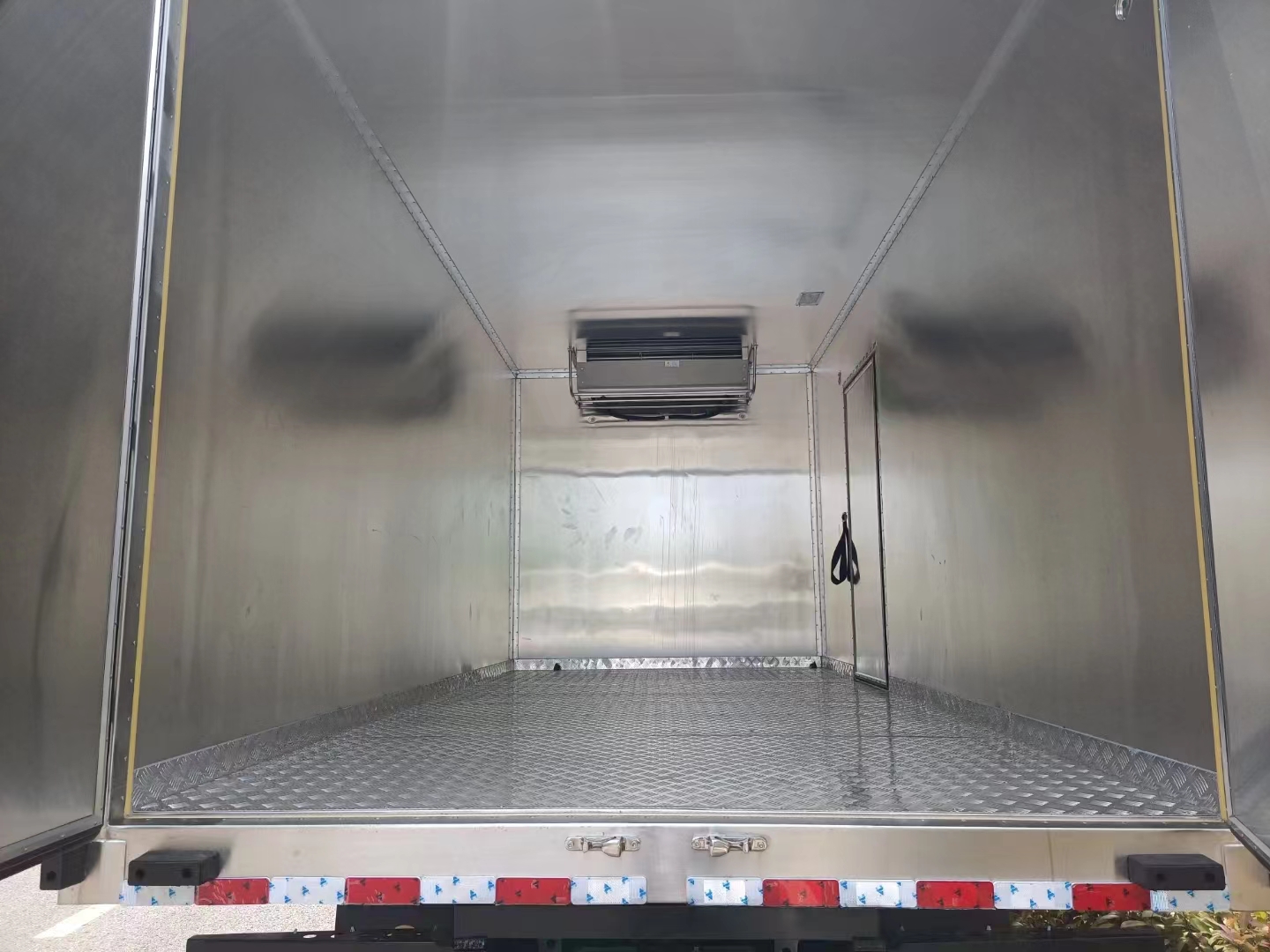

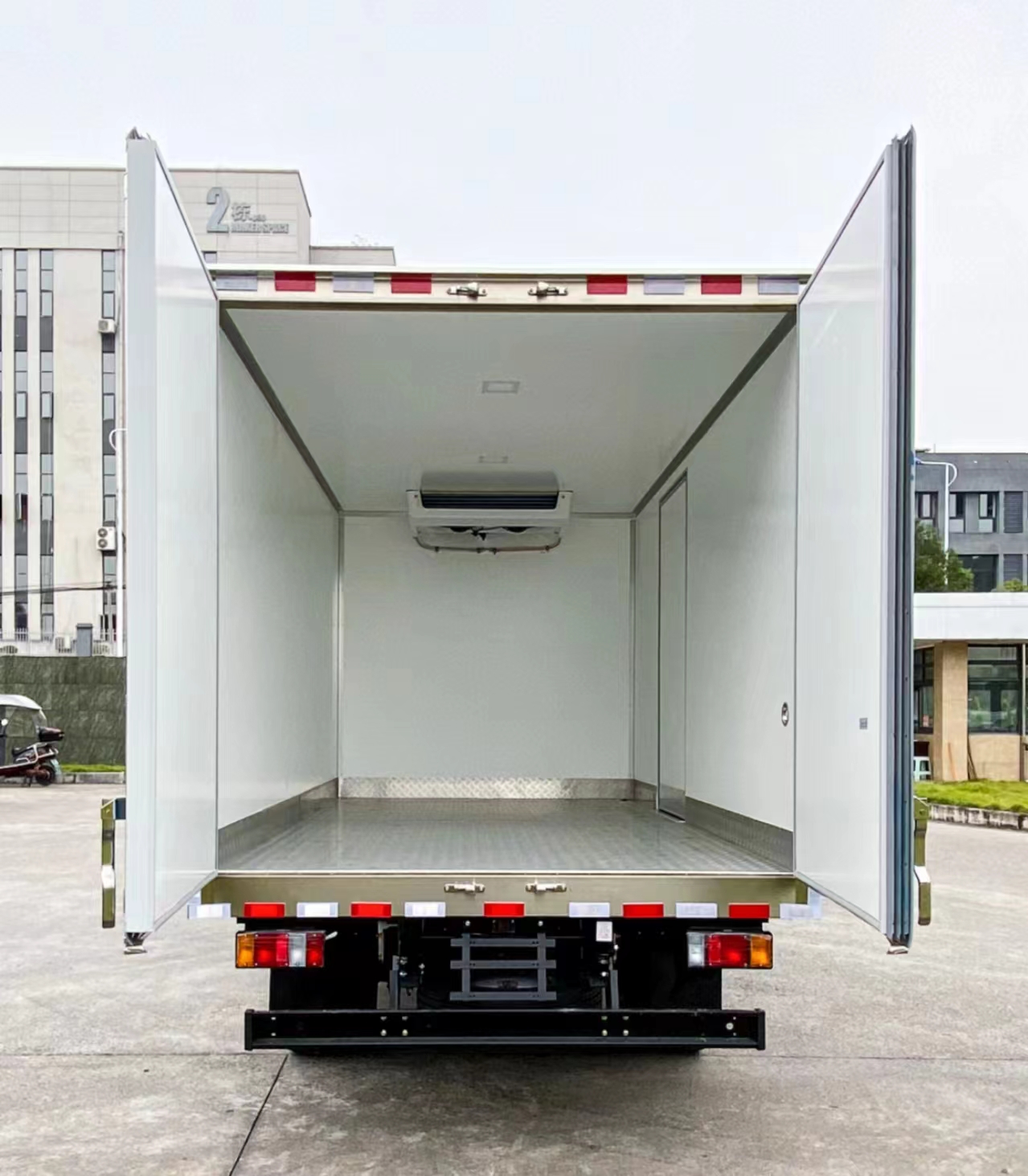

The containers of insulated refrigerated trucks are similar to containers, but are made of materials with better insulation effects, reducing heat exchange.
| Basic Information | |||
| Announcement Model: | DKV5040XLCBJ6BF | Type: | Refrigerated Truck |
| Driving Form: | 4X2 | Wheelbase: | 3360mm |
| Box Length Level: | 4080,3700mm | Engine: | Foton Cummins F2.5ns6b160, D25tcif1, 4f25tc, Etc |
| Transmission: | 6-Speed Transmission | Rear Axle Speed Ratio: | 4.33 |
| Body Length: | 5995mm | Vehicle Width: | 2110,2250mm |
| Body Height: | 2750,2800,2850,2950,3050,3220,3250,2520,2200,3290(mm)mm | Front Wheelbase: | 1590,1725,1705,1600,1750(mm) |
| Rear Wheelbase: | 1590,1615,1700,1800,1715,1710(mm) | Vehicle Weight: | 3200(Kg) |
| Rated Load Capacity: | 1100(Kg) | Total Mass: | 4495(Kg) |
| Maximum Speed: | 105KM/h |
Origin: |
D41 Factory Building (Southeast Side), Xipeng Industrial Park, No. 6 Sendi Avenue, Xipeng Town, Jiulongpo District, Chongqing |
| Tonnage Level: | Light Truck | Approach Angle: | 19 Degrees |
| Departure Angle: | 16 Degrees | Front/Rear Suspension: | 1110/1525(mm) |
| Engine Parameters | |||
| Engine Model: | Foton Cummins F2.5ns6b160 | Engine Brand: | BFCEC |
| 发动机俗称： |
Fukang F2.5N |
Number Of Cylinders: | 4 |
| Fuel Type: | Diesel Oil | Cylinder Arrangement: | Inline |
| Displacement: | 2.498L | Emission Standards: | National Vi |
| Maximum Output Power: | 115kw | Maximum Horsepower: | 160 Horsepower |
| Container Parameters | |||
| Container Form: | Box Type | Container Length: | 4080,3700mm |
| Box Width: | 1960,2100mm | Container Height: | 1800,1900,2100,1350,1400,1510mm |
| Cabin Parameters | |||
| Driver'S Cab Width: | 2060mm | Number Of Passengers Allowed: | 3 People |
| Seating Arrangement: | Single Row | ||
| Transmission Parameters | |||
| Transmission Model: | 6-Speed Transmission | Shift Mode: | Hand Movement |
| Forward Gear: | 6th Gear | Reverse Gears: | 1 Unit |
| Chassis Parameters | |||
| Front Axle Allowable Load: | 1575KG | Rear Axle Allowable Load: | 2920KG |
| Speed Ratio: | 4.33 | Number Of Springs: | 3/5+2 |
| Tire | |||
| Tire Specifications: | 7.00R16LT 8PR | Tire Type: | Tubeless |
| Number Of Tires: | 6 Unit | ||
| Brakes | |||
| Braking Form: | Air Braking | ||
| Handling Configuration | |||
| Abs Anti Lock Braking: | ● | ||
| Internal Configuration | |||
| Multifunction Steering Wheel： | ● | Air Conditioning Regulation Form: | Hand Movement |
| Power Windows: | ● | Electronic Central Locking: | ● |
| Multimedia Configuration | |||
| External Audio Source Interface (Aux/Usb/Ipod, Etc.): | ● | Bluetooth/Car Phone: | ● |
| Lighting Configuration | |||
| Adjustable Headlight Height: | ● | ||
| Brake Braking | |||
| Vehicle Braking Type: | Pneumatic Brake | Parking Brake: | Air Brake |
| Intelligent Configuration | |||
| Cruise Control: | ● |
Chongqing Dike Automotive Technology Group Was Founded In September 2000. The Company Mainly Engages In Automotive Project Planning And Vehicle Research And Development, Manufacturing And Sales Of Intelligent Connected Special Vehicles, And Development And Application Of Intelligent Networking Technology. Dike Automobile Is One Of The Key Manufacturing And Service Enterprises In Chongqing, As Well As A High-Tech Enterprise, Specialized And Innovative Enterprise. It Has A Municipal Industrial Design Center And A Municipal Enterprise Technology Center. The Company Has Received Numerous Honors And Holds Over 100 Patents And Software Copyrights. After Years Of Hard Work, The Company Has Built An Industrial Chain For The Cross-Border Integration And Development Of The Automotive And Ict Industries, Forming An Industrial Chain System That Includes Research And Development Design, Production And Manufacturing, Sales And Operation, Smart Car Connectivity, And Application Software System Services.
The Team Of Dike Automotive Research Institute Is The First Private Automotive Research And Development Service Institution Established In China, With 24 Years Of Experience In Vehicle Research And Development, Providing Technical Support For Vehicle Research And Development To Multiple Well-Known Domestic Automotive Oems.
The Dico Automotive Team Adheres To The Principle Of "Personalized Customization And Precise Service", With 16 Years Of Manufacturing Experience, To Manufacture New Intelligent Connected Special Vehicles With A Good Experience For Customers.
The Marketing Team Of Dike Automobile Collaborates With Well-Known Domestic Automotive Companies Such As Changan Automobile, Qingling Automobile, China National Heavy Duty Truck, Beiqi Foton, Dongfeng Automobile, Jianghuai Automobile, Chery Automobile, Geely Automobile, China Crrc And Other Commercial Vehicle Companies To Build A Segmented Service Chain, Share Sales Networks, And Expand Domestic And Foreign Markets.
