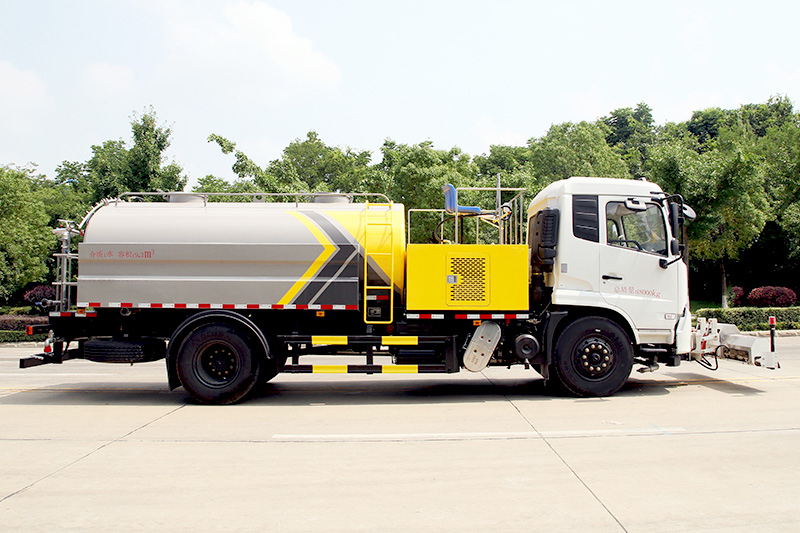

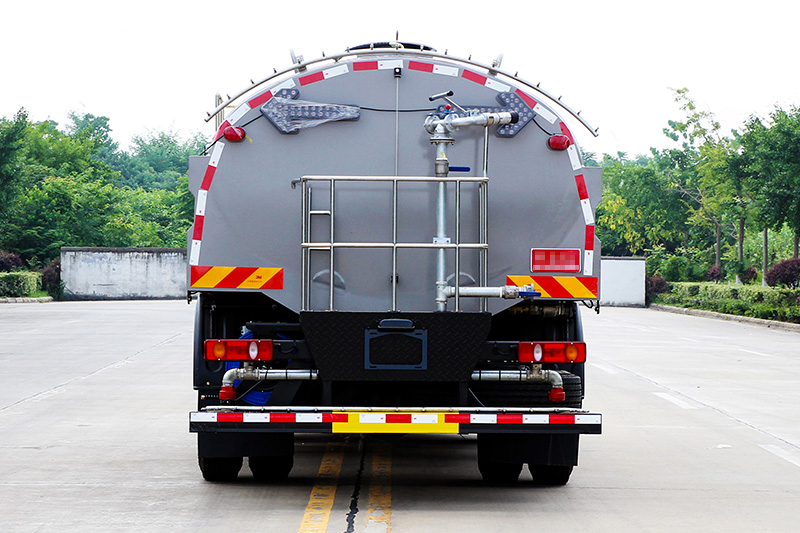

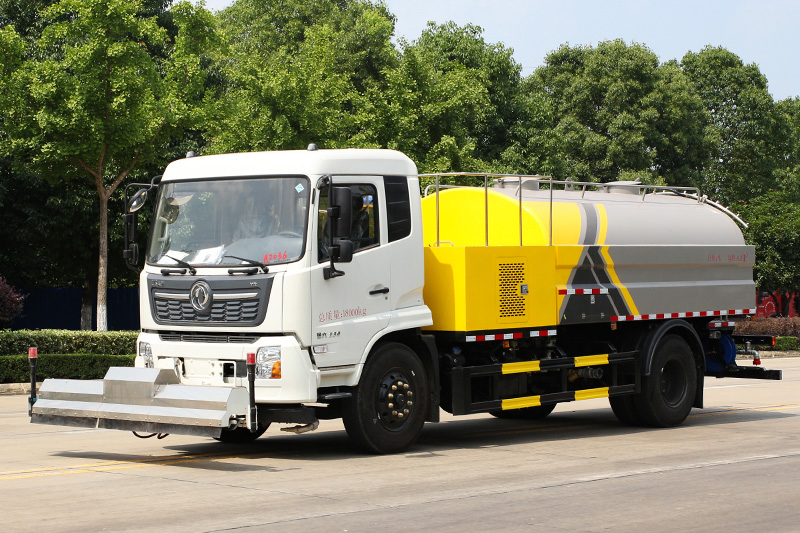

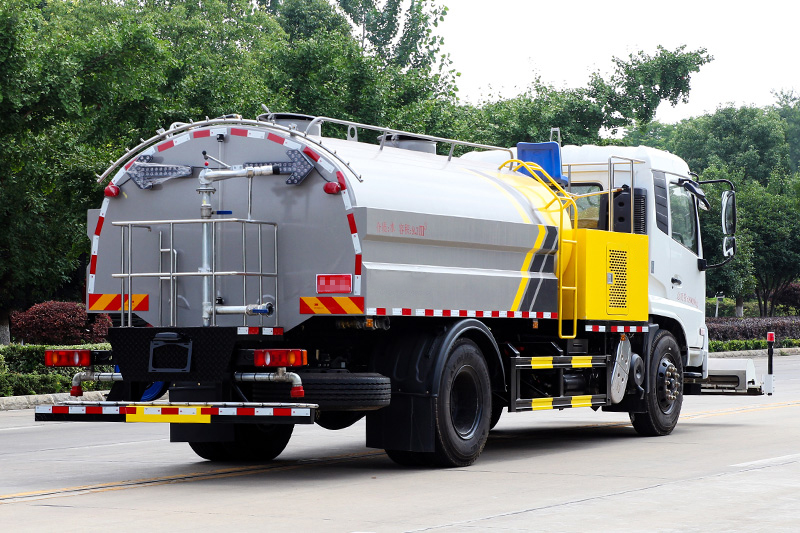

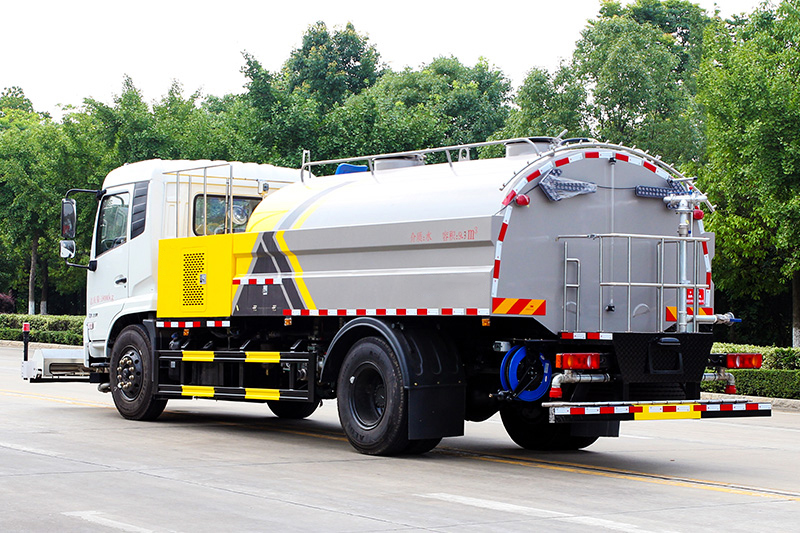

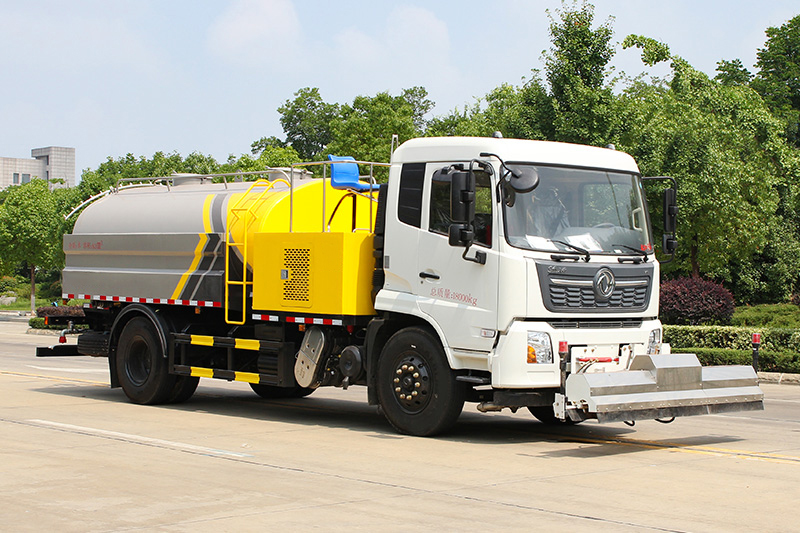

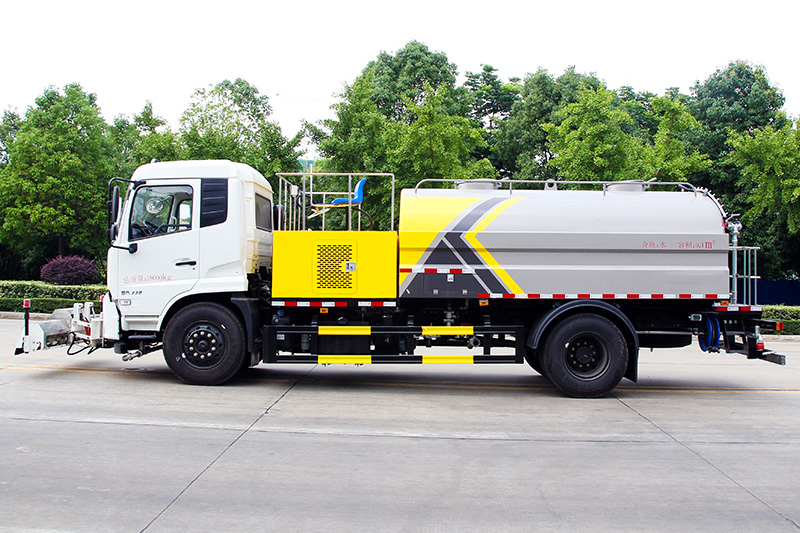

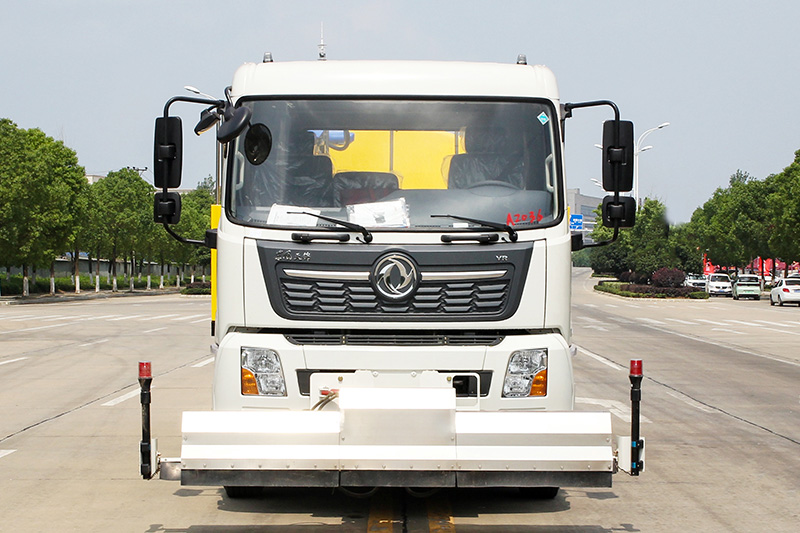

Dongfeng Tianjin Road Cleaning Vehicle 9.3m ³
9 month ago
A special structural specialized operation vehicle equipped with road maintenance devices, etc., used for repairing road potholes and performing minor surface repairs.
Car chassis chassis model DKV1180EX8
Engine model B6.2N56B210/D6.7N56B230
Engine rated power/kW 154/169
Tire 10.00R20
Bear oil type diesel
Auxiliary engine and transmission system auxiliary engine model (Jiangling 87 horsepower/Yuchai 102 horsepower)
Rated power 64kw/3600/r/min
High pressure water pump type for high-pressure waterway system, column type
Brand German Pinfu
Pressure 16MPa
Flow 153
Water valve type pneumatic high-pressure ball valve
Pressure 16MPa
Spray rack nozzle type high-pressure washing type
Corner nozzle type high-pressure washing type
Spray dancing nozzle type: Fine dancing type
Water filter type: filter screen type
Low pressure water system, low-pressure water pump type, two-stage impeller, centrifugal type
Model 800ZB (F) -60/90
Lift 90m
Rotating speed 1480r/min
Water valve pneumatic control ball valve
Hydraulic system type: open type, electro-hydraulic control
Main components: gear pump, hydraulic cylinder, electric collision cabinet
The maximum system pressure is 16MPa
Hydraulic oil tank capacity 65L
Electrical system type: unidirectional DC 24V (bottom salt) and unidirectional DC 12V (secondary generator), with negative grounding
Qian Battery 6-QW-100MF (chassis), 75D31R (secondary engine)
