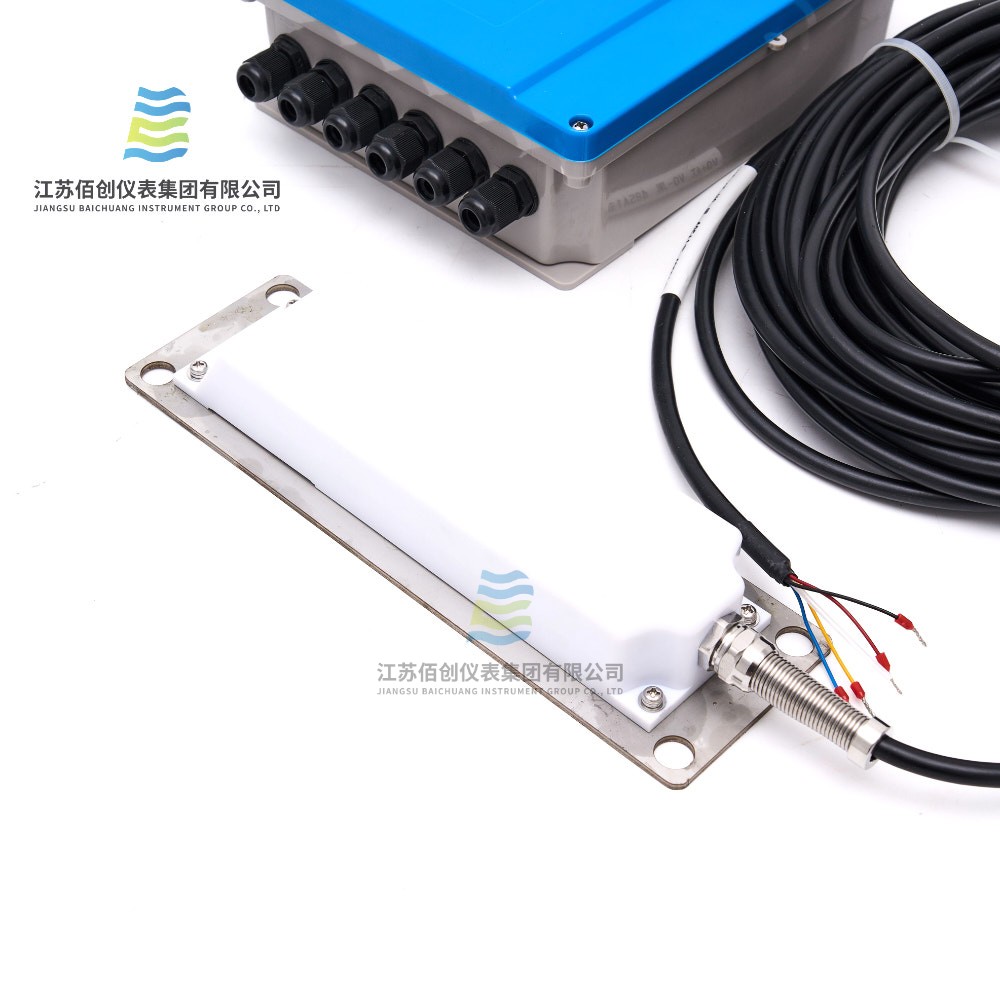

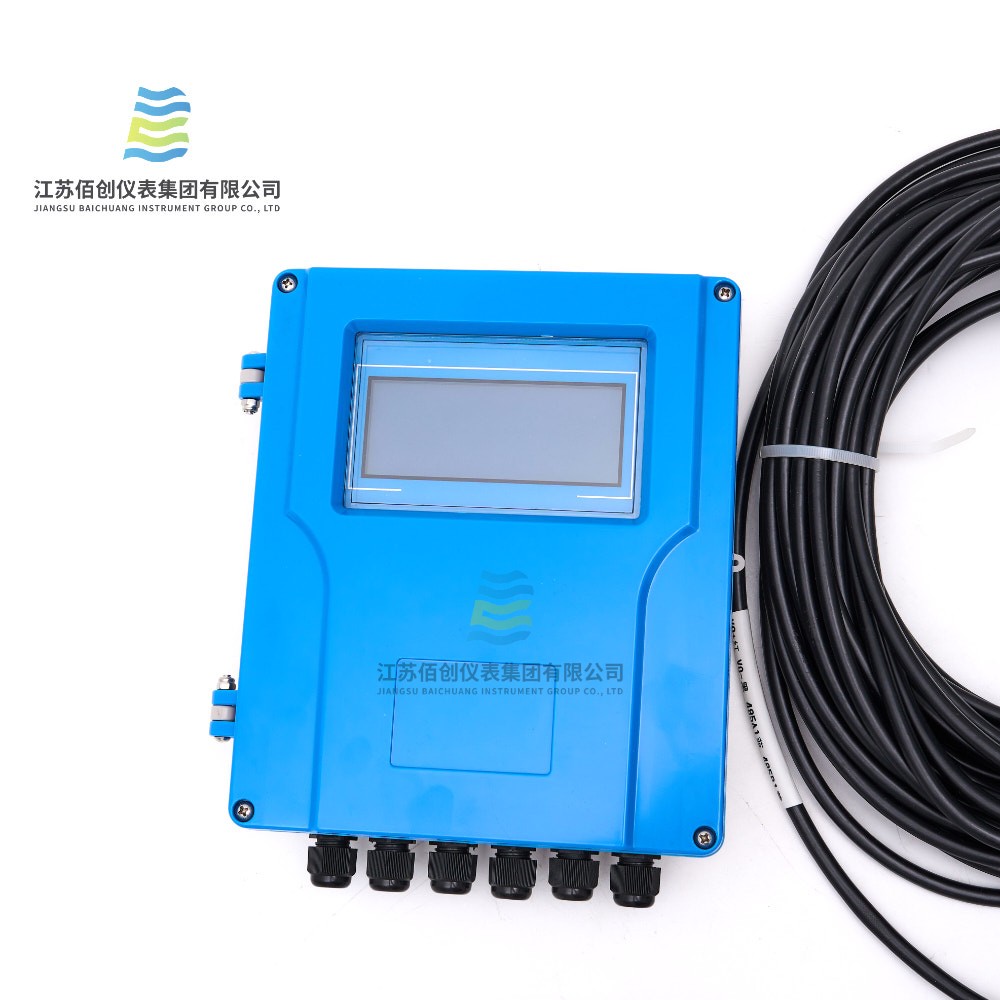

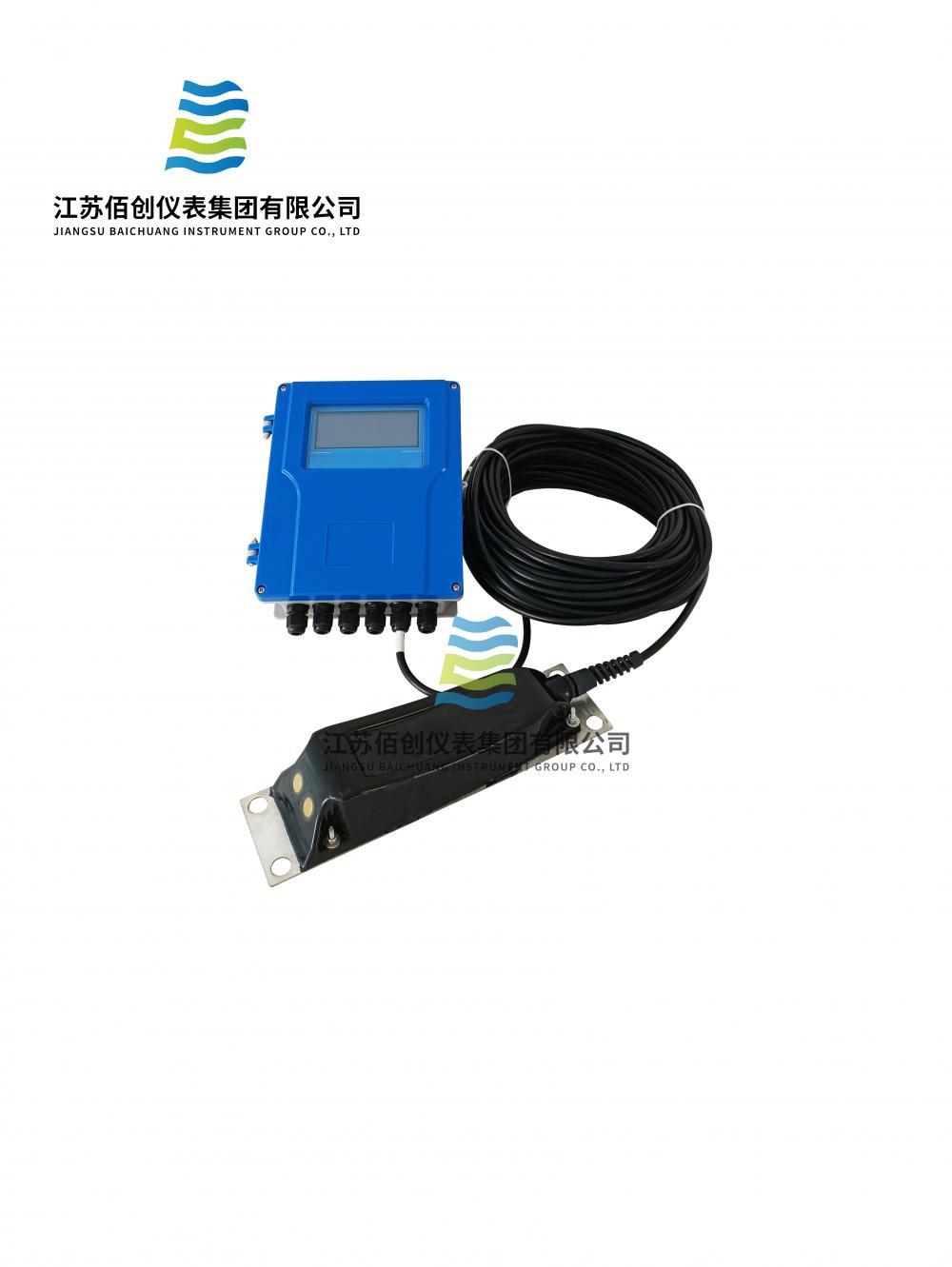

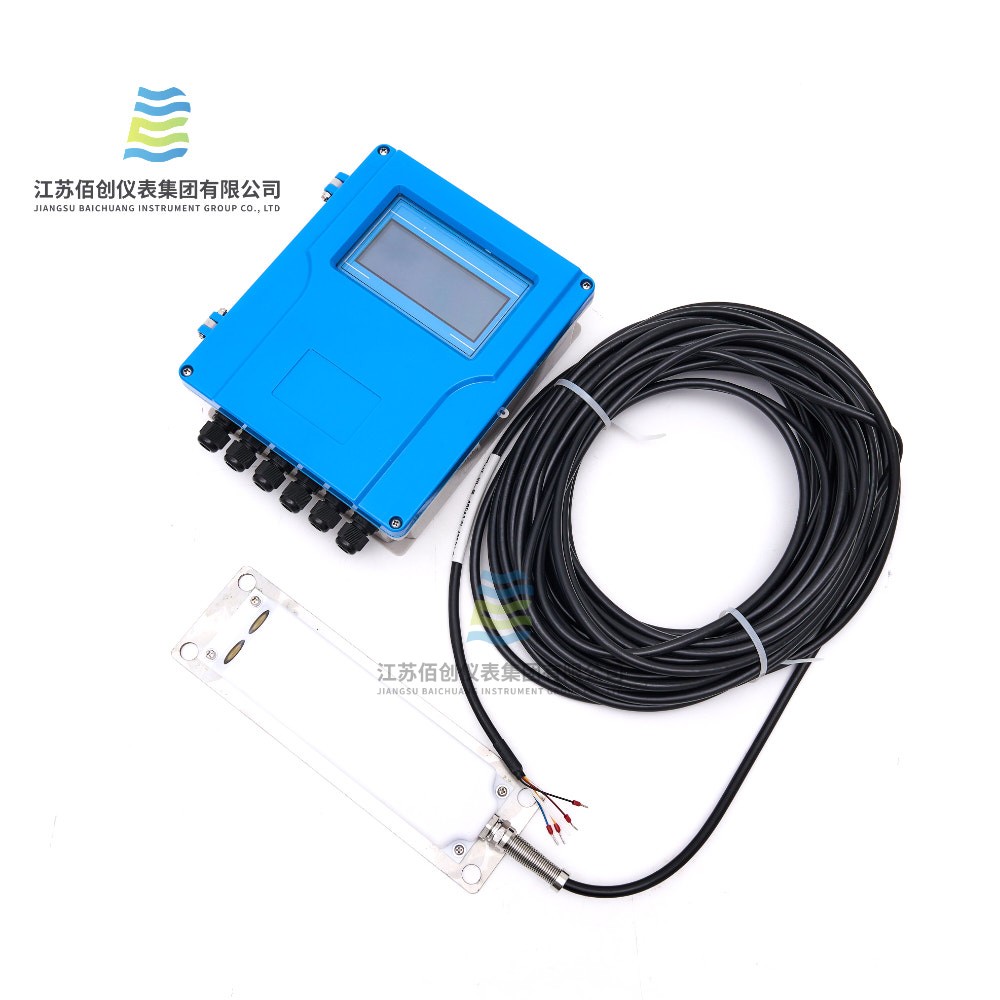

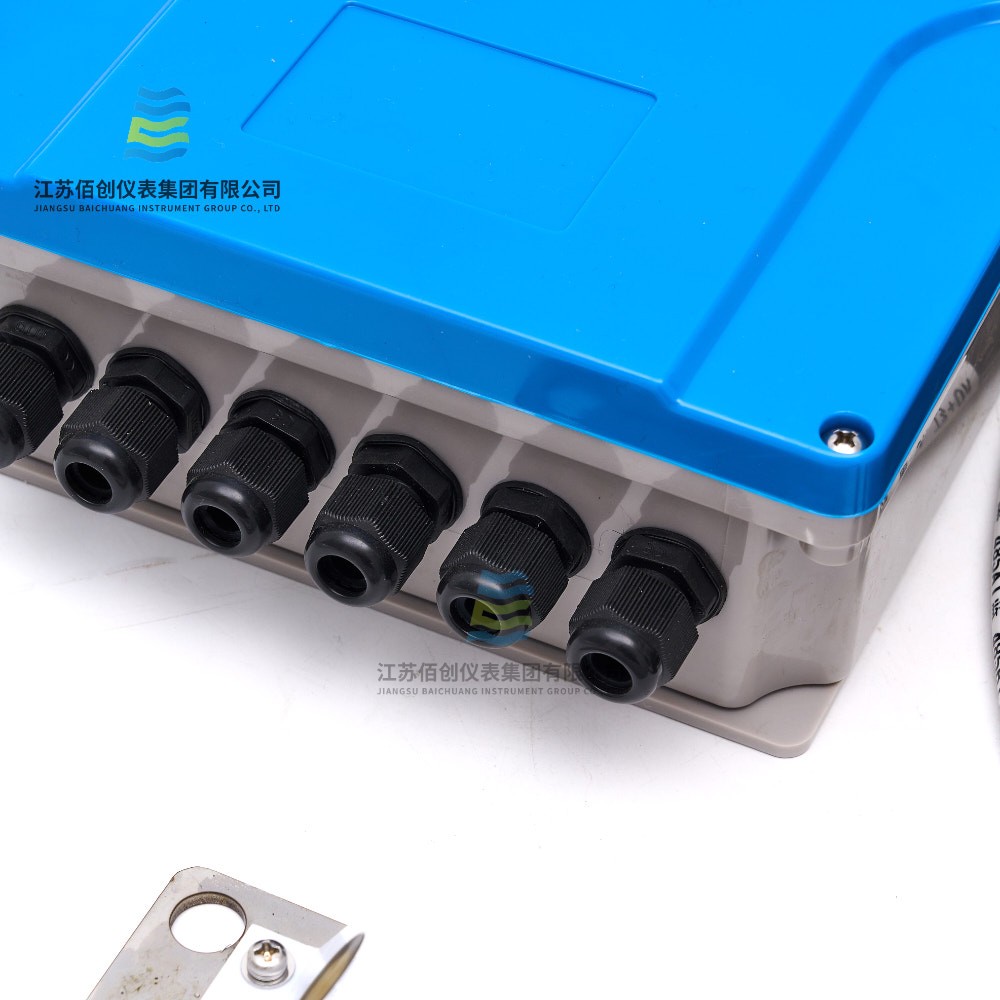

Doppler ultrasonic flowmeter
2 year agoCPU working frequency: 133MHZ, standard operating system: EP2C8Q208C8N operating system, which is better than the ordinary microcontroller working mode, with reliable operation and stronger data processing capabilities.
Instrument power supply: AC220V, DC12-36V, solar power supply
Display: TFT touch screen, 4.3 inches
Flow velocity range: Flow measurement range: 0.02~10.00m/s (section average flow velocity measurement display)
Resolution: 1mm/s Accuracy: +/-1%
Water depth range: 0~5m (minimum water depth: 5cm) Resolution: 2mm Accuracy: +/-0.2%
Temperature range: 0~65ºC Resolution: 0.1ºC
Flow calculation: flow rate, total flow water channel type: pipe (round pipe, egg-shaped pipe or other special-shaped pipes are optional)
Channel (round channel, rectangular channel or other special-shaped channel optional)
natural rivers and streams
Records: Built-in memory: 512M (2 months history)

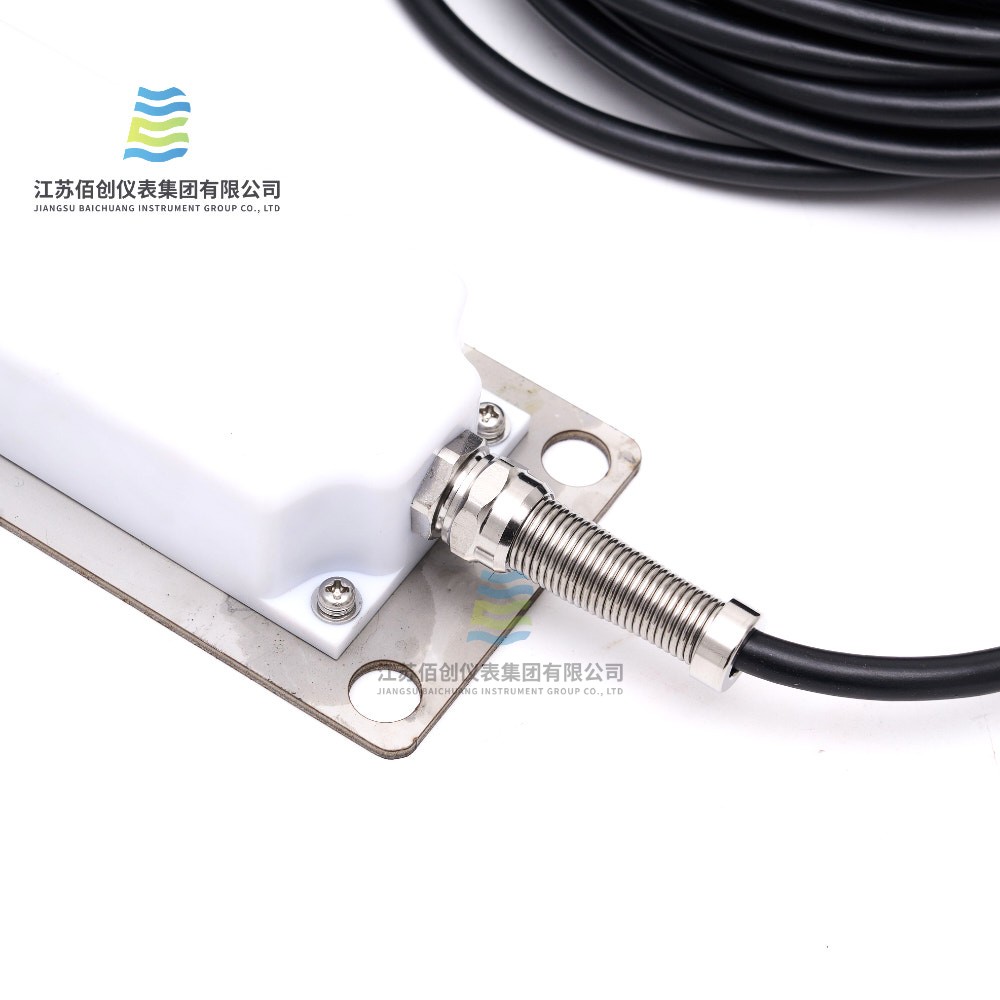

Data output: Lightning-proof isolated RS485 port, standard MODBUS-RTU format, can be connected to wireless data transmission radio or GPRS, CDMA network communication module to achieve remote data transmission. The sensor has an IP68 protection level and can operate under 20 meters of water (sensor cable comes standard with 20 meters, length: maximum 1000m)
Measurement occasions: suitable for various natural water flow process monitoring, sewers, open channel sewage treatment, water conservancy channel process monitoring, road culverts, etc. flow velocity, flow rate, water level, water temperature measurement.
Our company's main products include Electromagnetic flowmeter、Ultrasonic cold or heat flowmeter、Open channel flowmeter、Electromagnetic cold or heat flowmeter.
