1'' CA25DD Goyen Type Pulse Jet Solenoid Valve
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
* Threaded Type
* Manifold Flat Mount Type
* Dresser Nut Type
* Straight Through Type
* Flanged Type
Technical Data of DD Series Dust Collector Pulse Valve:
|
Model No
|
CA20DD
|
CA25DD
|
CA45DD
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
|
Pipe Connection
|
Dresser Nut
|
||
|
Diaphragm Number
|
1
|
1
|
2
|
|
Working Pressure Range
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
||
|
Valve Body Material
|
Aluminum Alloy
|
||

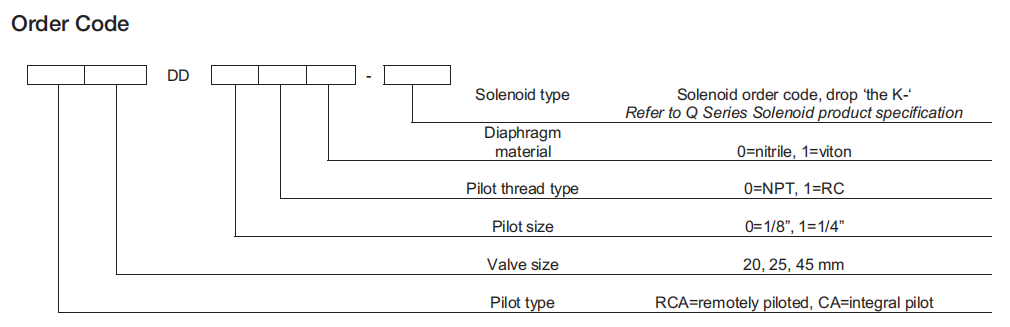

Ordering Code of DD Series Dresser Nut Pulse Jet Valve:

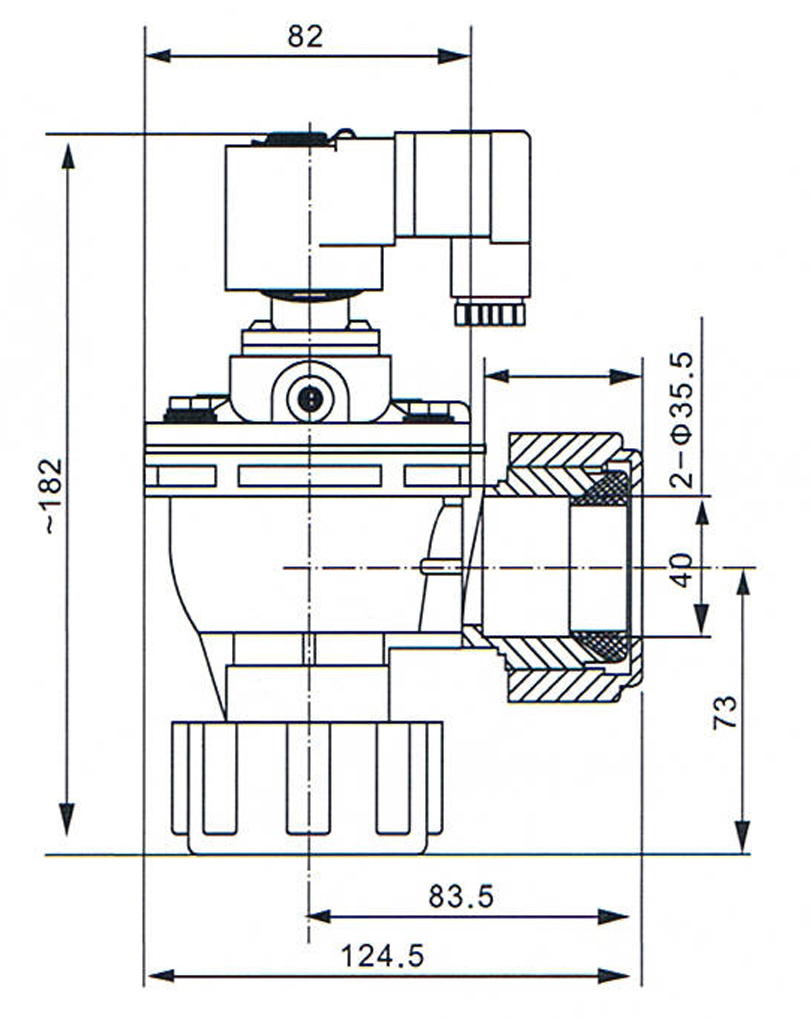

Dimension of CA25DD Dust Collector Diaphragm Valve:
More Goyen Type Pulse Jet Valve for you to choose:
 |
 |
 |
 |
| T Series | DD Series | FS Series | MM Series |
 |
 |
 |
 |
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
