200 bar Water Air Gas High Pressure Solenoid Valve 1/8'' 1/4'' 12VDC 24VDC 110VAC 220VAC

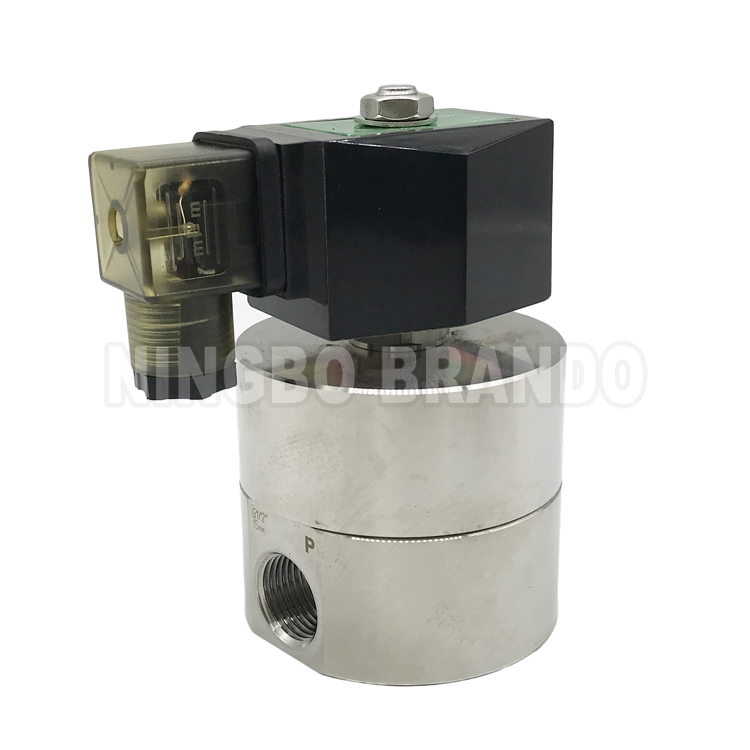

200 bar High Pressure Solenoid Valve 1/8'' 1/4''

Specifications:

1. Working Medium: Air, Water, Gas, Liquid, etc
2. Working Pressure: 0 to 200 bar
3. Medium Temperature: -10 to +180℃
4. Port Size: 1/8'', 1/4''
5. Orifice Size: 1.2mm, 2mm
6. Body Material: Stainless Steel 304
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Products:

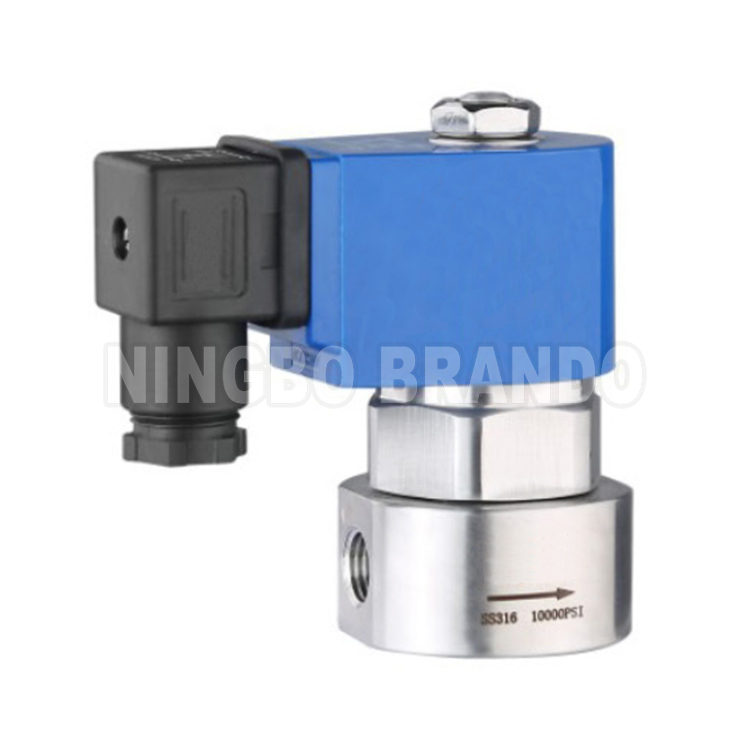

Max 200 bar	Max 200 bar	Max 300 bar	Max 700 bar
