sand casting-bronze fittings
5 year ago

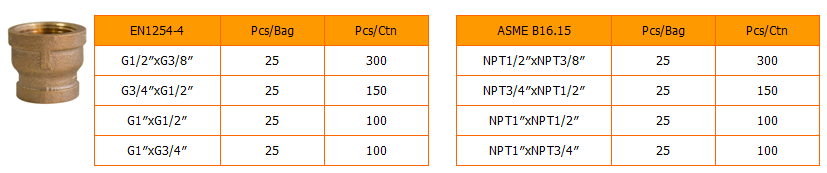

Cast Bronze Fitting Reducer
-
Description:Cast Bronze Fitting Reducer,Bronze Fittings/Marine Boat Reducer Coupling Bronze/Brass Threaded Reducer Coupling,Lead Free & No lead Bronze with thread connection type.
The bronze reducer use sand mould to shape,and CNC machines to thread.The surface is sand blasted.Runde supply wide range bronze fittings.All the fittings can process BSPT NPT, NPSM, BSP thread.And we can cast the material according to the customized metal grad.
Runde bronze fittings' quality is same as yorkshire bronze fittings ,pegler bronze fittings,connex bronze fittings,kembla bronze fittings.The cast bronze fitting reducer know as gunmetal fittings has flange at the edges,The thread meet ISO228 and 7-1 as well as ASME B1.20.1.
-
Production Standard:
1.BS EN1254-4:1998 Copper and copper alloys-Plumbing fittings
Part 4: Fittings combining other end connections with capillary or compression ends
2.ANSI B16.15-2006 Cast Bronze Threaded Fittings
3.ISO228-1 Pipe Threads Where Pressure-tight joints are not made on the threads
4.ISO 7-1(EN10226-1&2 R,Rp,Rc) Pipe threads where presssure-tight joints are made on the threads- Part 1:Dimensions,tolerances and designation
5.ASME B1.20.1 Pipe Threads,General Purpose(Inch)
-
Material:
Bronze Part:
1.CC491K(Cusnzn5pb5-C)(Cu 83-87% Ni≤2% P≤0.1% Pb≤6% Sn 4-6% Zn 4-6% Al≤0.01 Fe≤0.3% S ≤0.1% Sb≤0.25% Si≤0.01%)
2.CC499K(Cusnzn5pb2-C)(Cu 84-88% Ni≤0.6% P≤0.04% Pb≤3% Sn 4-6% Zn 4-6% Al≤0.01 As≤0.03% Bi≤0.02% Cd≤0.02% Cr≤0.02% Fe≤0.3% S ≤0.04% Sb≤0.01% Si≤0.01%)
3.C83600(CU84-86%,SN4-6%,PB4-6%,AL≤0.005% ,NI≤1% ,ZN4-6%,FE≤0.3%,S≤0.08% ,P≤0.02% ,SI≤0.005)
4.C84400(CU78-82%,SN2.3-3.5%,PB6-8%,7-10% ,AL≤0.005% ,FE≤0.4% ,NI+CO≤1%,SB≤0.25%,S≤0.08% ,SI≤0.005%,P≤0.02%)
5.C89844(No Lead)(CU83-86%,SN3-5%,PB0%,AL≤0% ,NI0% ,ZN7-10%,FE≤0.3%,S≤0.08%,P≤0.05% ,SI≤0.005,SB0.2%)
-
Application: Industrial or Residential Water and plumbing,drinking supply,cold and hot water supply, heating supply, fire protection,gas supply, industrial petroleum pipeline system etc.Suit Medium:Cold Water, Hot Water, Compressed Air, Gas, Oil Etc.
