DMF-Z-76S

4 year ago

55 0 

11 year

Product details

DMF-Z-76S Bag Filter Solenoid Valve BFEC 24VDC

DMF Series BFEC Pulse Jet Valve:
1. Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
2. Quick Mount Pulse Jet Valve: DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B
3. Immersion (Embedded) Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE
4. Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S
5. Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S

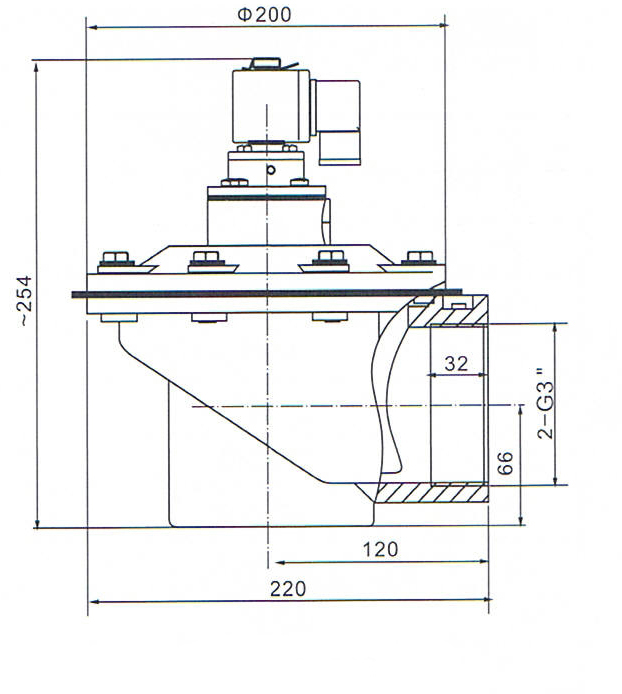

Main dimension of DMF-Z-76S Pulse Jet Valve:

DMF-Z-76S Pulse Jet Valve

Technical parameters of DMF Series BFEC Pulse Jet Valve:

Model	Nominal diametrer		Number of diaphragms	Inlet	Outlet	Weight (kg)
Model	mm	inch	Number of diaphragms	Inlet	Outlet	Weight (kg)
DMF-Z-20	Φ20	3/4''	1	G3/4''	G3/4''	0.65
DMF-Z-25	Φ25	1'''	1	G1''	G1''	0.8
DMF-Z-40S	Φ40	1 1/2''	2	G1 1/2''	G1 1/2''	1.4
DMF-Z-50S	Φ50	2''	2	G 2''	G2	2.4
DMF-Z-62S	Φ62	2 1/2''	2	G2 1/2''	G2 1/2''	3.5
DMF-Z-76S	Φ76	3''	2	G3''	G3''	4.3
DMF-Z-90S	Φ90	3 1/2''	2	G3 1/2''	G3 1/2''	5.75
DMF-Z-102S	Φ102	4''	2	G4''	G4''	7.3
DMF-20L-B	Φ20	3/4''	1	G3/4''	Φ27	0.75

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Coil and Solenoid Valve Armature Assembly.

List of All DMF Series BFEC Pulse Jet Valve:

Right Angle Valve	3/4''	1''	1.5''	2''	2.5''	3''	4''
Right Angle Valve	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Quick Mount Valve	3/4''	Inlet φ27	1''		1.5''
Quick Mount Valve	DMF-ZM-20	DMF-ZL-B	DMF-ZM-25		DMF-ZM-40S
Flanged Valve	1''			1.5''
Flanged Valve	DMF-ZF-25			DMF-ZF-40S
Immersion Valve	1''	1.5''	Outlet φ62mm	Outlet φ75	Outlet φ89	Outlet φ114	Outlet φ102
Immersion Valve	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S	DMF-Y-102SA

Brando Supply:

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
