Refrigeration Solenoid Valve Coil HM4 DC12V DC24V AC24V AC110V AC220V AC380V

Refrigeration Solenoid Valve Coil HM4 AC220V 16VA

This HM4 solenoid coil is popularly used in refrigeration solenoid valves, which is a clip on version coil and can be fitted without use of tools.  The standard voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC or 380VAC, the standard power is 13W, 18W, 13VA, 16VA or 18VA, other voltages and powers can be customized as your request, IP65 protection class, Class F insulation.

Technical Data:

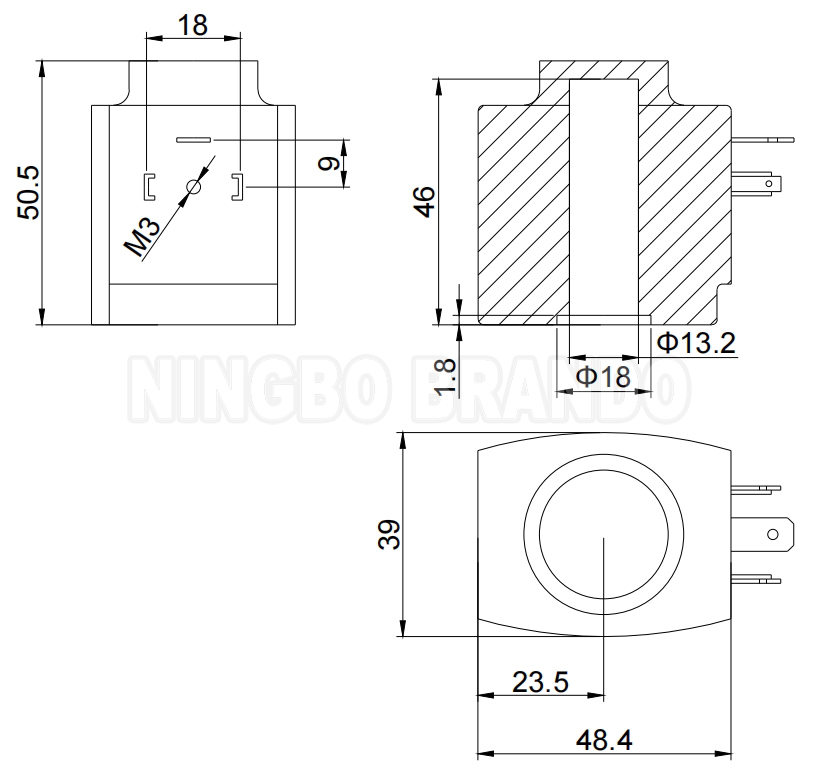

Main Dimension:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
