3/8'' Stainless Steel Steam Solenoid Valve
4 year ago

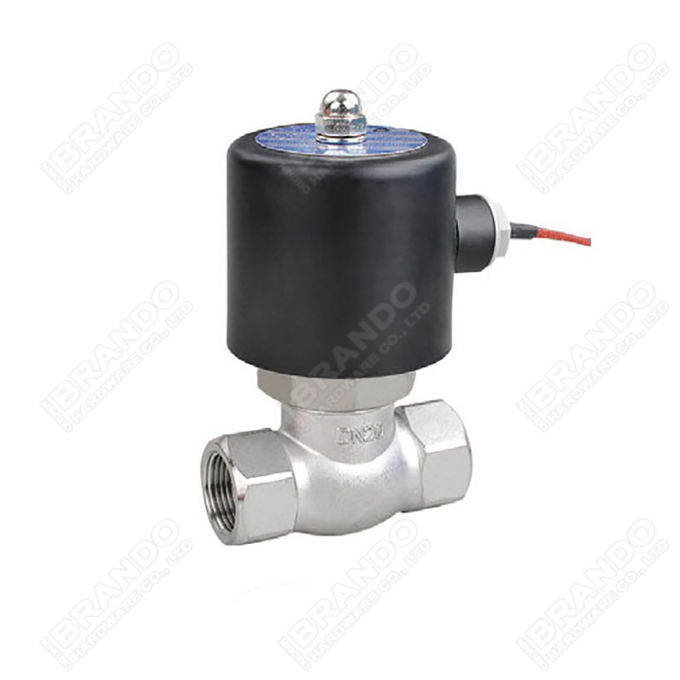

1/2'' High Temp Stainless Steel Steam Solenoid Valve
Product Features:
1. Working Medium: Steam, High Temperature Liquid, etc.
2. Working Meidum Temperature Range: 0 to +180℃
3. Working Pressure Range: 0.1 to 16 bar
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Piston Pilot Operated
6. Body Material: Brass, Stainless Steel
7. Seal Material: PTFE
8. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

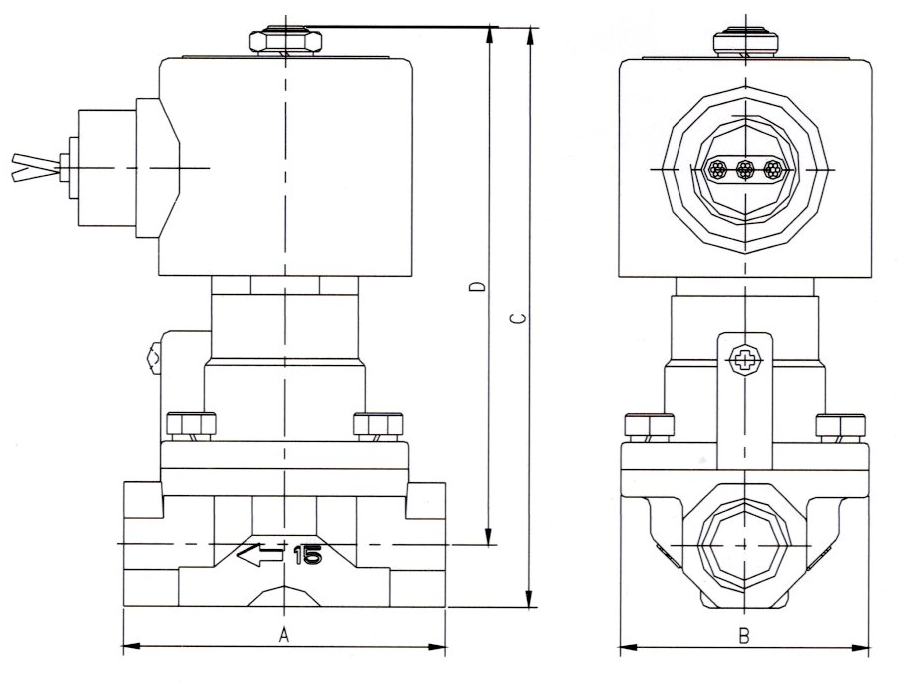

Overall Dimension of Stainless Steel Solenoid Valve:
|
Model
|
A
|
B
|
C
|
D
|
|
|
PS-10
|
PS-10J
|
70
|
53
|
135
|
122.5
|
|
PS-15
|
PS-15J
|
70
|
53
|
135
|
122.5
|
|
PS-20
|
PS-20J
|
74
|
57
|
142
|
125.5
|
|
PS-25
|
PS-25J
|
92
|
69
|
150
|
130
|
|
PS-32
|
PS-32J
|
110
|
85
|
164
|
139
|
|
PS-40
|
PS-40J
|
122
|
90
|
168
|
140
|
|
PS-50
|
PS-50J
|
160
|
117
|
190
|
155
|
Technical Data of Stainless Steel Solenoid Valve:
|
Port Size
|
Orifice Size
|
Working Pressure
(Bar)
|
Working Temperature
(℃)
|
Coil Voltage
|
Ordering Code
|
|||
|
Min
|
Max
|
Brass Body
|
Stainless Steel Body
|
|||||
|
NC
|
NO
|
|||||||
|
1/4''
|
8mm
|
0.1
|
16
|
-
|
0 to 180
|
220VAC
110VAC
24VAC
24VDC
12VDC
|
PS-A-08
|
PS-A-08J
|
|
3/8''
|
10mm
|
0.1
|
16
|
-
|
PS-A-10
|
PS-A-10J
|
||
|
3/8''
|
15mm
|
0.4
|
16
|
8
|
PS-10
|
PS-10J
|
||
|
1/2''
|
15mm
|
0.4
|
16
|
8
|
PS-15
|
PS-15J
|
||
|
3/4''
|
20mm
|
0.4
|
16
|
8
|
PS-20
|
PS-20J
|
||
|
1''
|
25mm
|
0.4
|
16
|
8
|
PS-25
|
PS-25J
|
||
|
1 1/4''
|
32mm
|
0.4
|
12
|
8
|
PS-32
|
PS-32J
|
||
|
1 1/2''
|
40mm
|
0.4
|
12
|
8
|
PS-40
|
PS-40J
|
||
|
2''
|
50mm
|
0.4
|
12
|
8
|
PS-50
|
PS-50J
|
||
Brando Factory Solenoid Valve Production Video:
More Solenoid Valves for you to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
 |
|
|
|
|
|
