2 Way Normally Closed Water Air Stainless Steel Solenoid Valve 1/8'' 1/4'' 12V 24V 110V 220V

Water Air Stainless Steel Solenoid Valve 1/8'' 24VDC

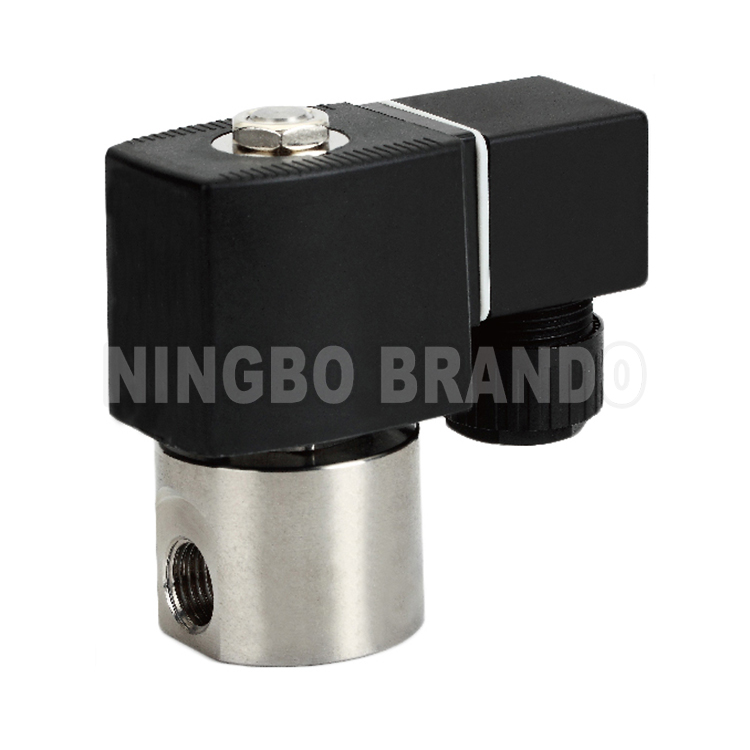

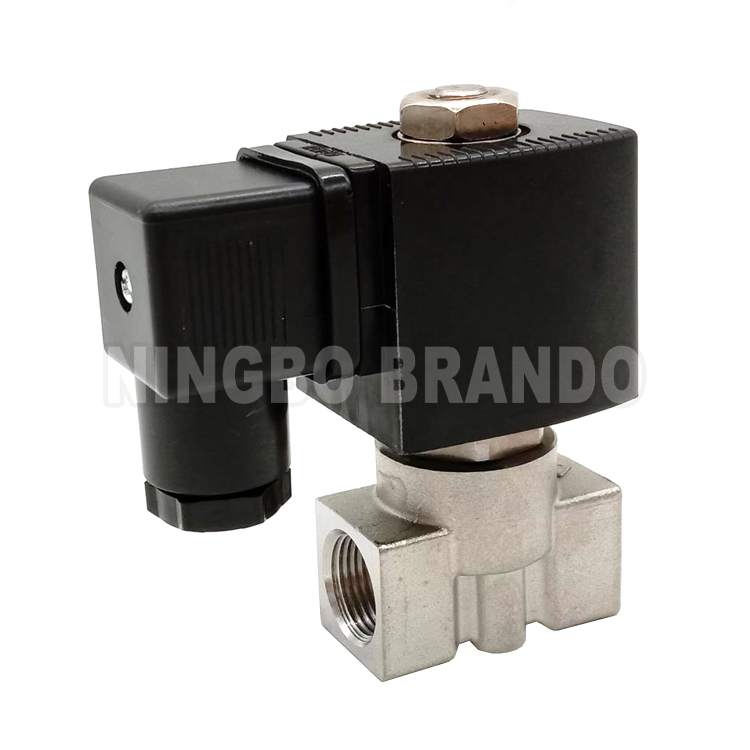

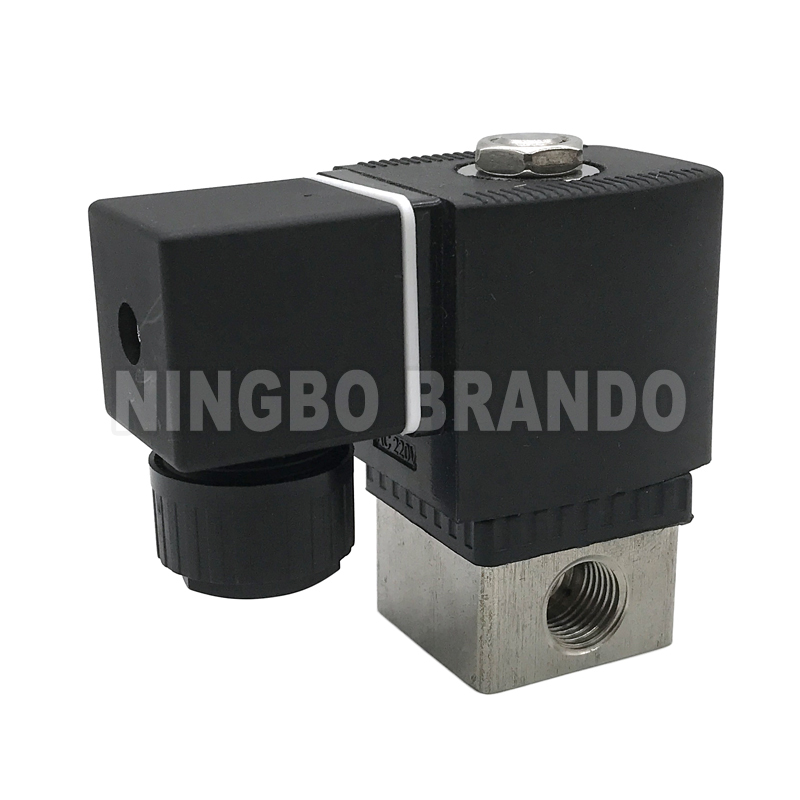

This is a small and compact solenoid valve, 1/8'' or 1/4'' port, 1.2 to 2.8mm orifice, 0 to 30 bar, plunger direct acting, 2 way normally closed, stainless steel 304 body, NBR standard seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Product Features:

1. Working Media: Air, Water, Steam, Oil, Gas, Liquid, etc
2. Working Pressure: 0 to 30 bar
3. Media Temperature: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/8'', 1/4''
5. Orifice Size: 1.2mm, 1.5mm, 2mm, 2.5mm, 2.8mm
6. Body Material: Stainless Steel 304
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

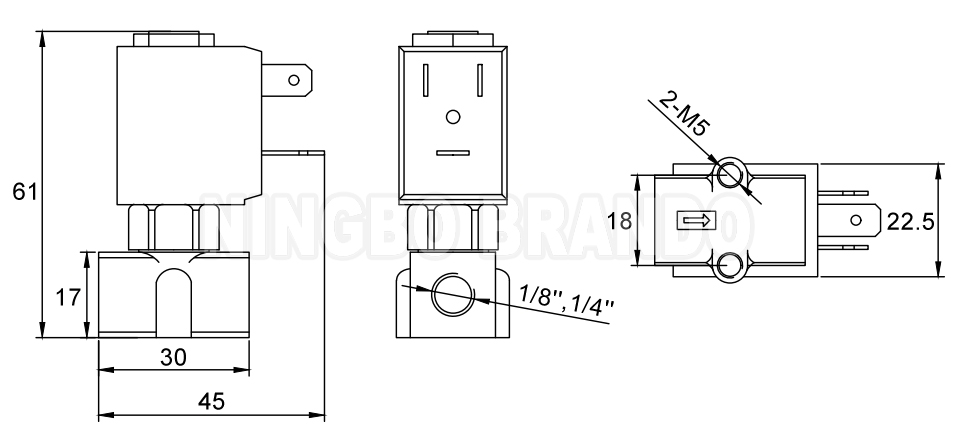

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
