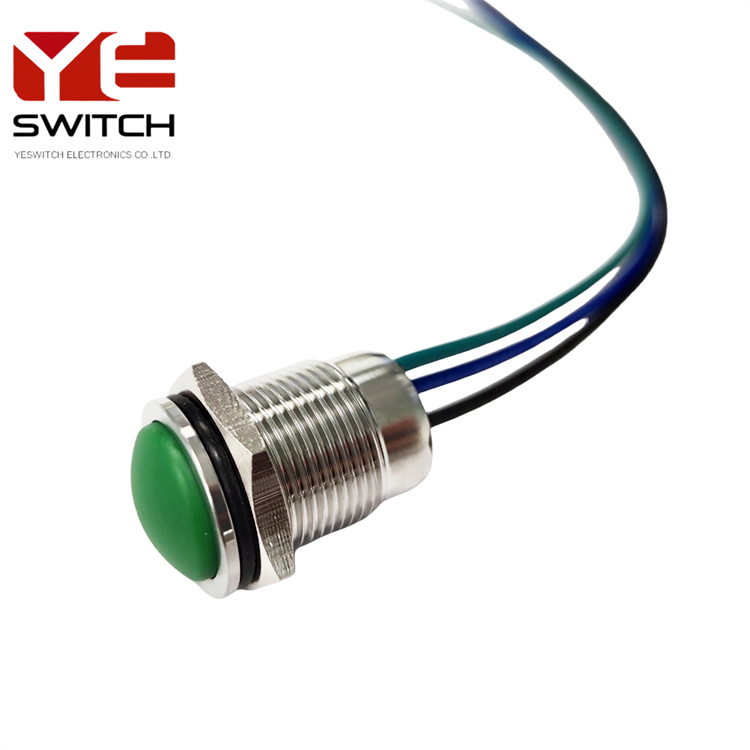

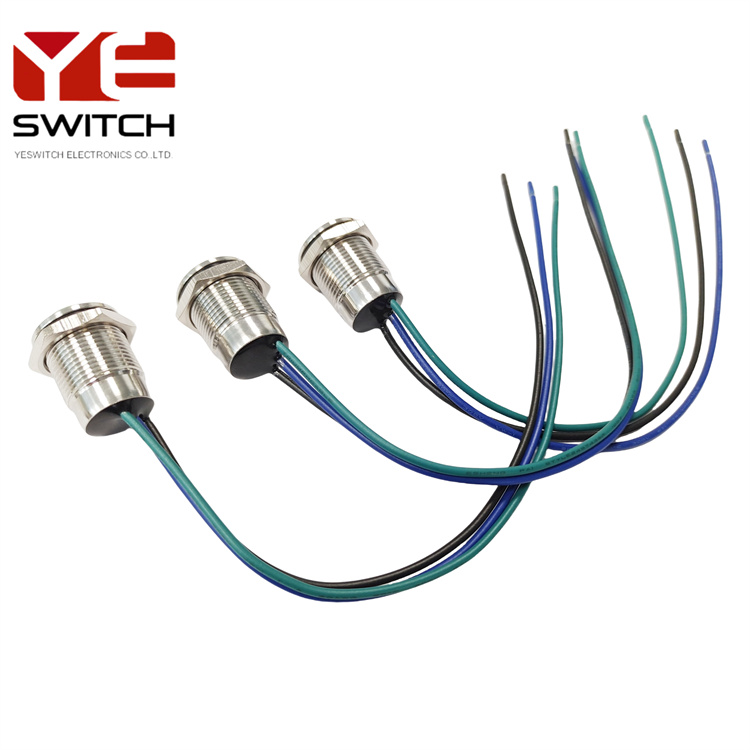

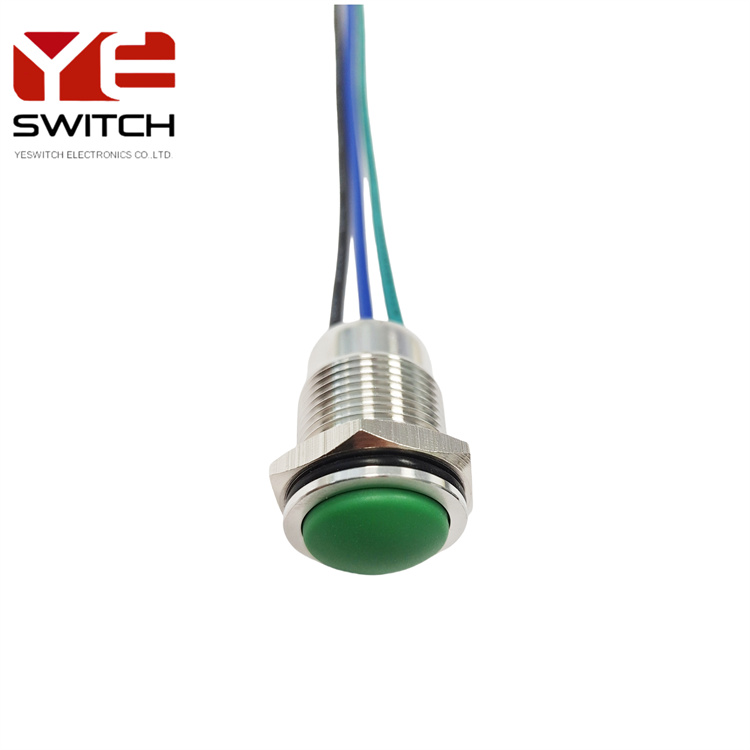

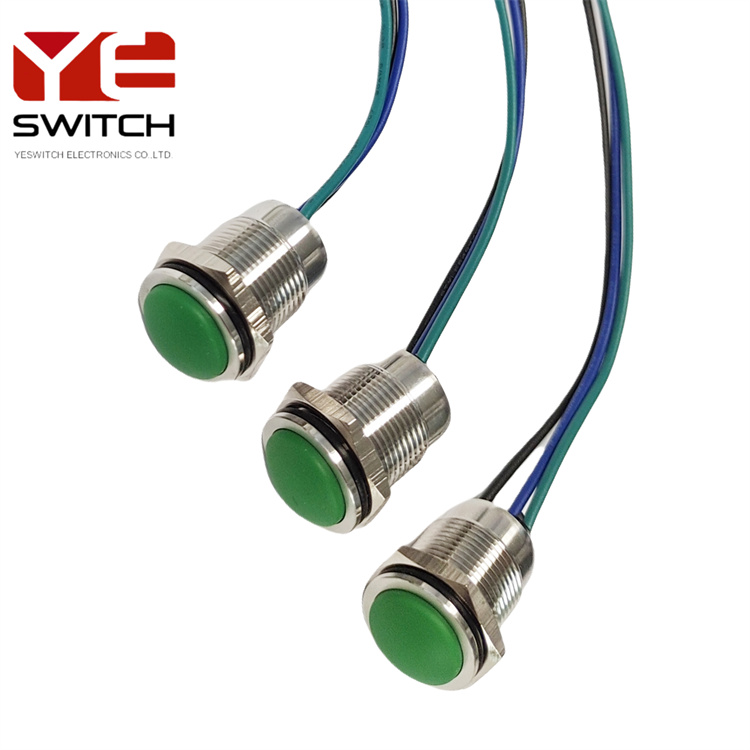

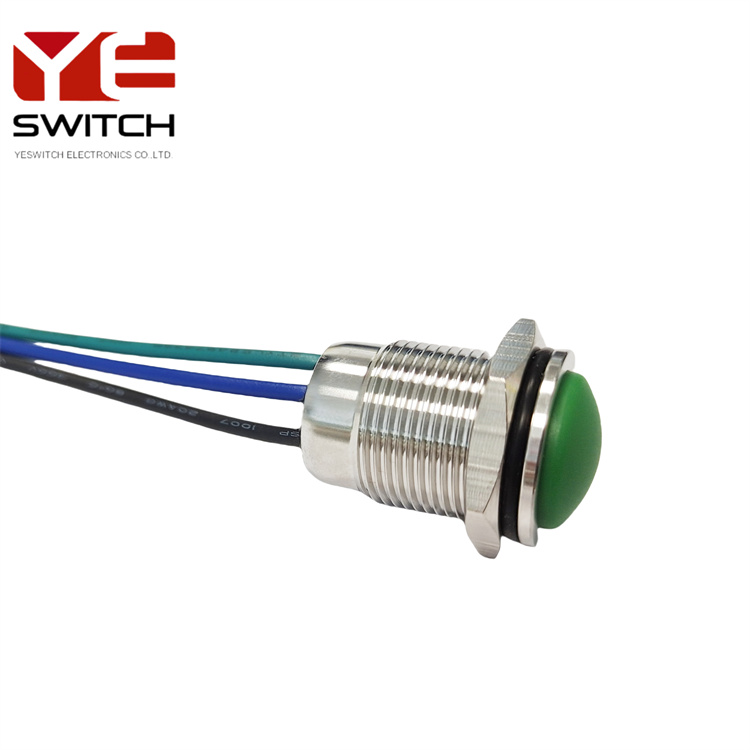

YESWITCH IP68 16mm 3A 250V Metal Silicone Button Switch With Wire

The IP68 16mm momentary metal push button switch for long life switching, with 100,000 cycles. Available in waterproof, dust-proof and corrosion-proof, and is suitable for wet and harsh environments.The waterproof push button switch can also be watertight sealed to IP68. The stylish silica gel waterproof metal switch are available in many colors,such as green,red,blue,black and so on.

The push button switches are designed to withstand harsh environments while being subjected to high rates of actuation.Examples of such can be found in material handling equipment such as loaders, lift trucks, bucket and shovel, and other applications where positioning of the load is critical.

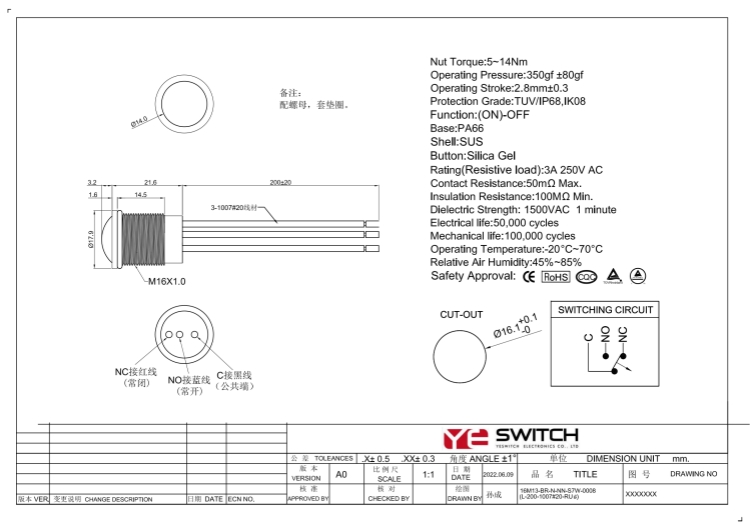

SPECIFICATIONS

Nut Torque:5~14Nm

Operating Pressure:350gf +80gf

Operating Stroke:2.8mm+0.3

Protection Grade:TUV/P68,IK08

Function:(ON)-OFF

Base:PA66

Shell:SUS

Button:Silica Gel

Rating(Resistive load):3A 250V AC

Contact Resistance:50mΩ Max.

Insulation Resistance:100mΩ Min.

Dielectric Strength:1500VAC 1 minute

Electrical life:50,000 cycles

Mechanical life:100,000 cycles

Operating Temperature:-20~70 Degree

Relative Air Humidity:45%~85%
