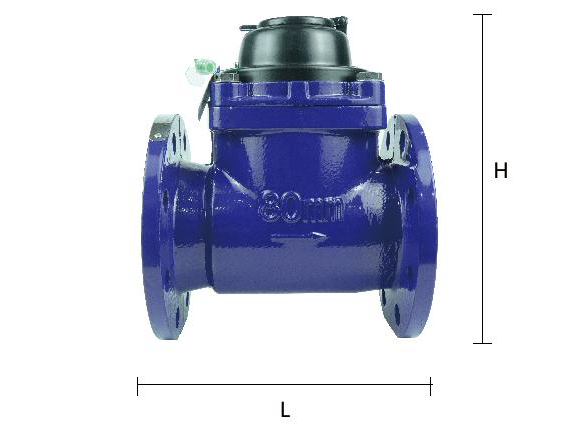

XH3508 is TURBINE Woltaman water meter with magnetic transmission, super dry type register for Industrial and Irrigation application has the sizes from DN50 to DN500 designed by NWM and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154 or ISO4064 standard.

1.All the materials in contact with water, consciously selected by the known resistance to corrosion;
2.Iron body with inside and outside epoxy coating for protecting the corrosion;
3.The ROTATING indicator register for the most comfortable reading position;
4.The copper can super dry register with IP68 protection;
5.The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
6.Suitable for any position installation;
7.Low pressure loss;
8.No effected by external magnetic fields;

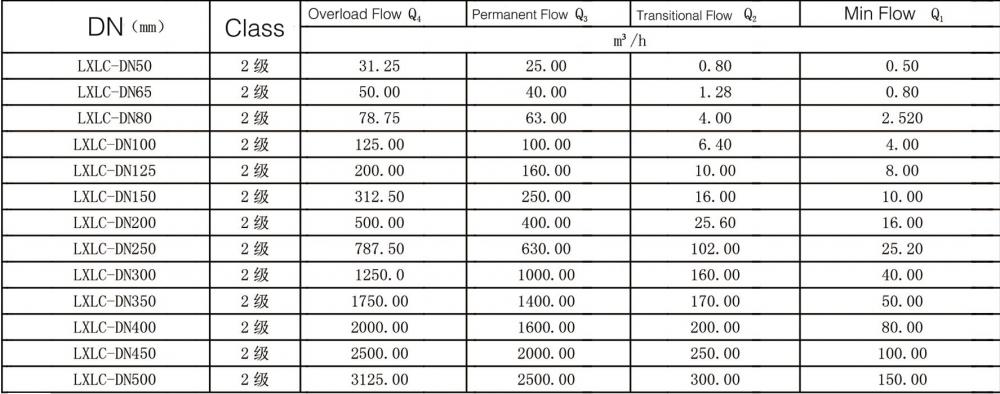

MAIN TECHNICAL DATA

INDICATING ERROR

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
