YESWITCH 16mm Anti-vandal Metal Push Button Switch

12 month ago

3 0 

7 year

Product details

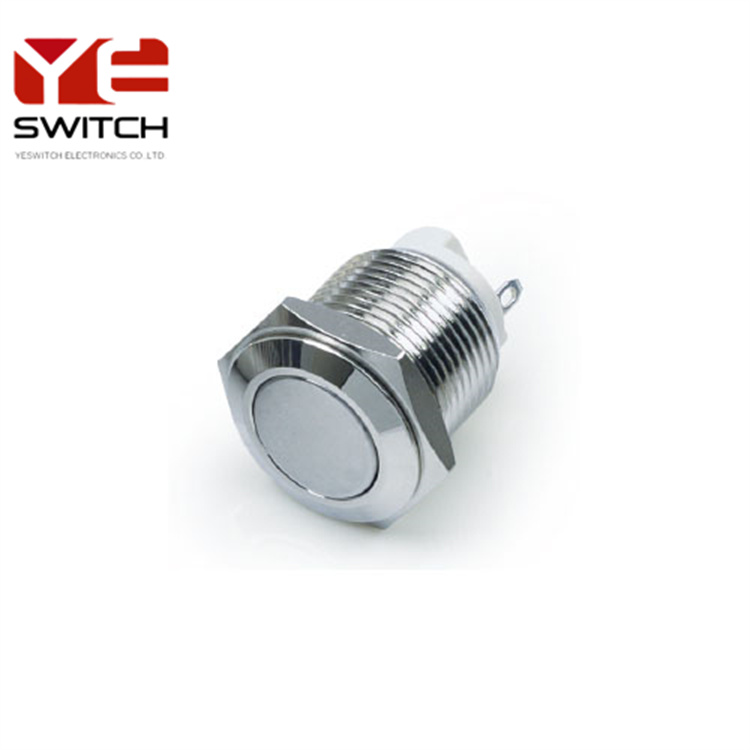

YESWITCH 16mm Anti-vandal Metal Push Button Switch For Electrical Housewares

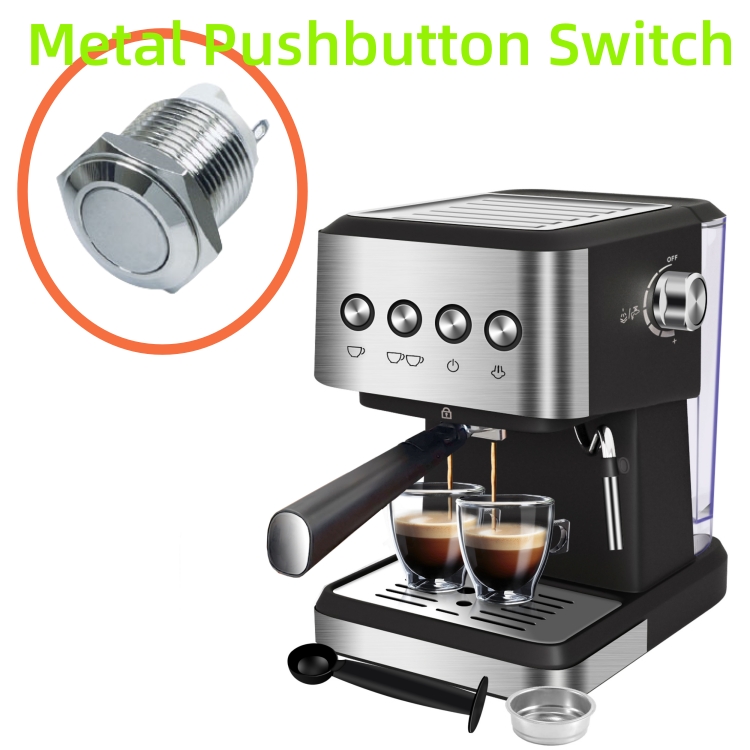

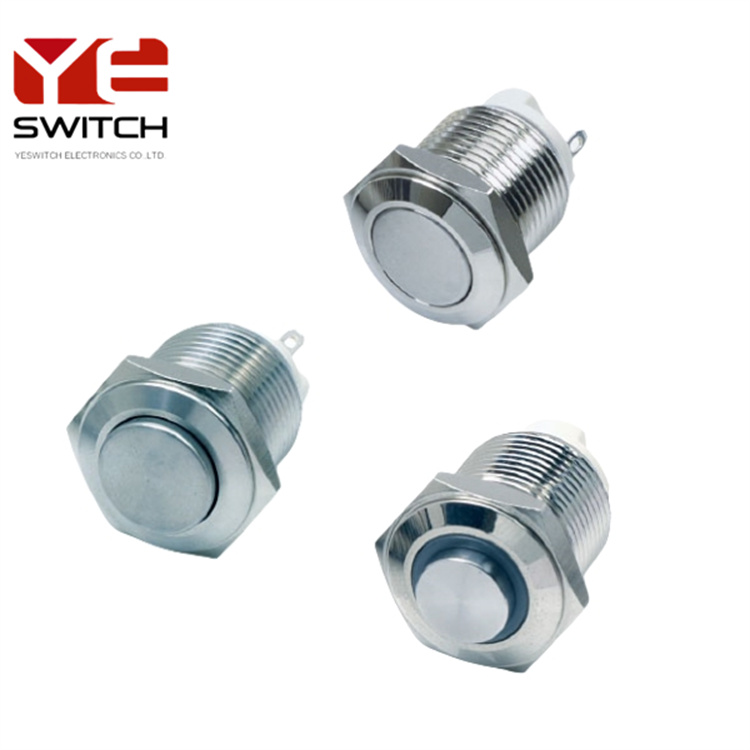

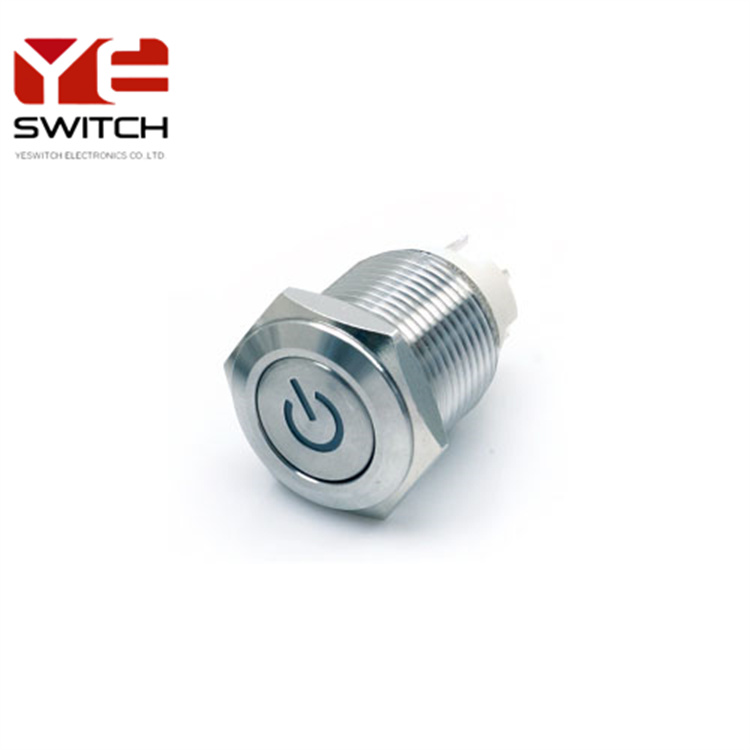

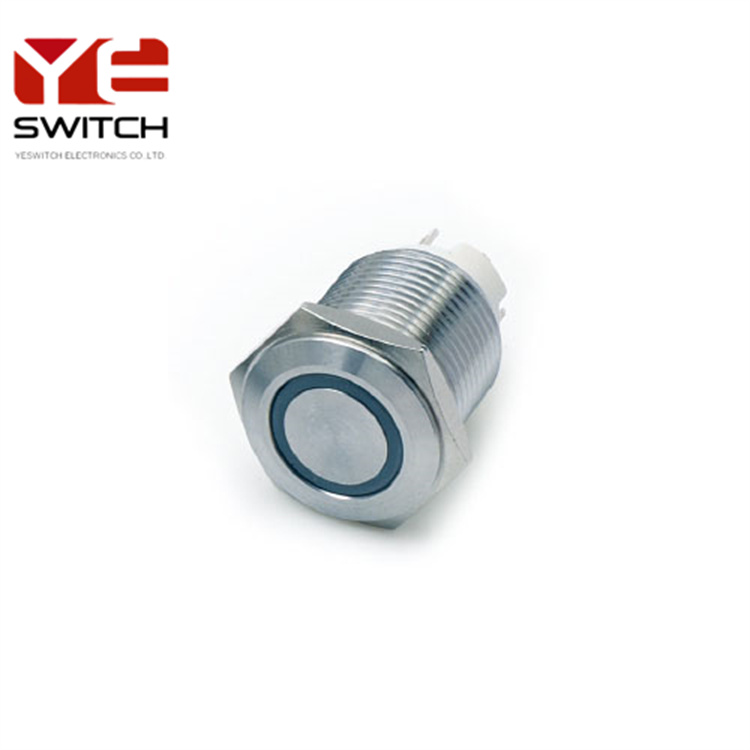

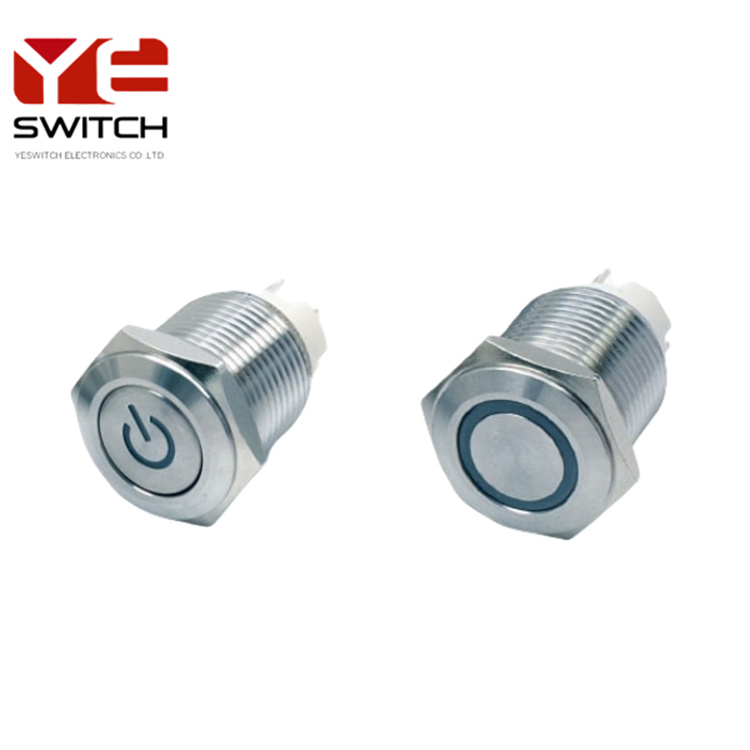

The 16mm anti-vandal metal push button switch is available with ingress protection ratings of IP65 (dust and water resistant) while having a long life expectancy. It is meant for mounting in a panel cutout of 16mm in diameter. LED illumination options include a power or ring.The 16mm anti-vandal switches have an electrical rating of 2A,36VDC and momentary function.The metal push button switch head shape include flat,round and high flush.The 16mm anti-vandal switches are popular for use in kiosk and ticket dispensers,industrial controls,medical equipment,security devices,audio/visual and electrical housewares.

SPECIFICATION

Nut Torque:5~ 14Nm

Operating Pressure:3~5N

Operating Stroke:2.8mm

Protection Grade:P65,IK08

Function:Momentary

Contact:Silver Alloy

Button:Nickel plated brass/stainless steel

Shell:Nickel plated brass/stainless steel

Base:PA66

Lamp Type:LED

LED Color:R/O/Y/G/B/W

Lamp Life:40000H

Rating(Resistive load): 2A 36VDC

Contact Resistance: 5OMΩ MAX

Insulation Resistance:1000MΩ MIN

Dielectric Strength:2000VAC

Electrical life:5.000 cycles

Mechanical life:50,000 cycles

Operating Temperature:-20-55 Degree
