DMF-Y-40S

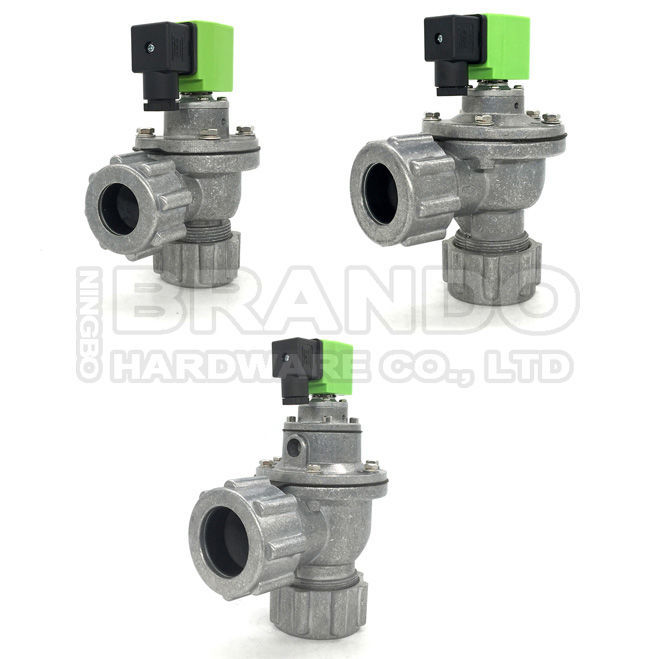

BFEC DMF-Y-40S 1-1/2'' Embedded Electrically controlled Pulse Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Technical Data of Dust Collector Diaphragm Valve:

Model Number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Port Size (Inch)	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 110VAC, 220VAC

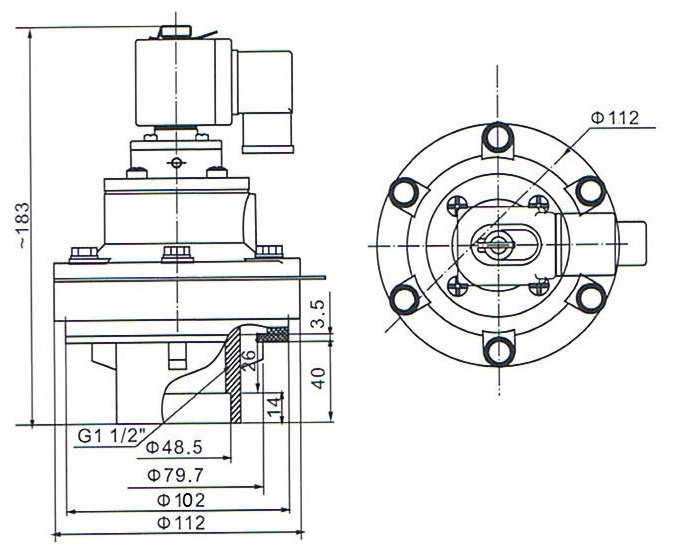

Main Dimension of DMF-Y-40S Dust Collector Pulse Valve:

More SBFEC Type Pulse Jet Valve for you to choose:

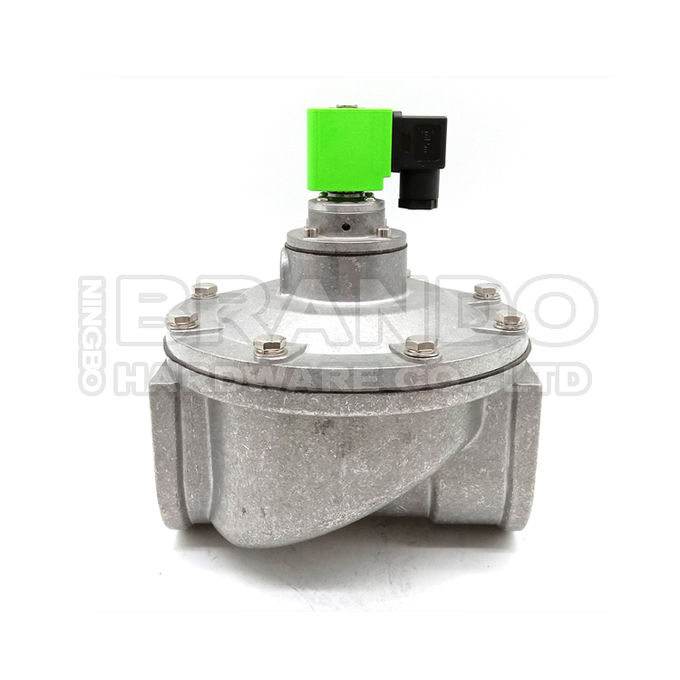

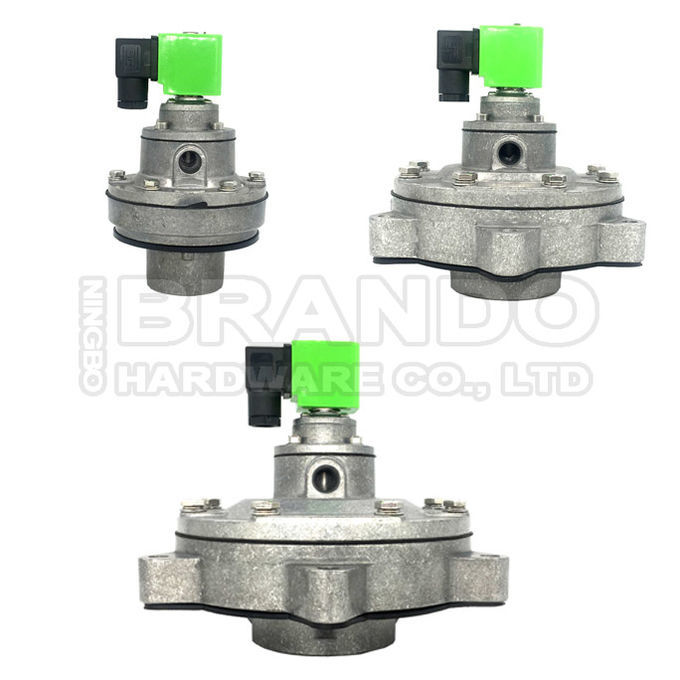

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

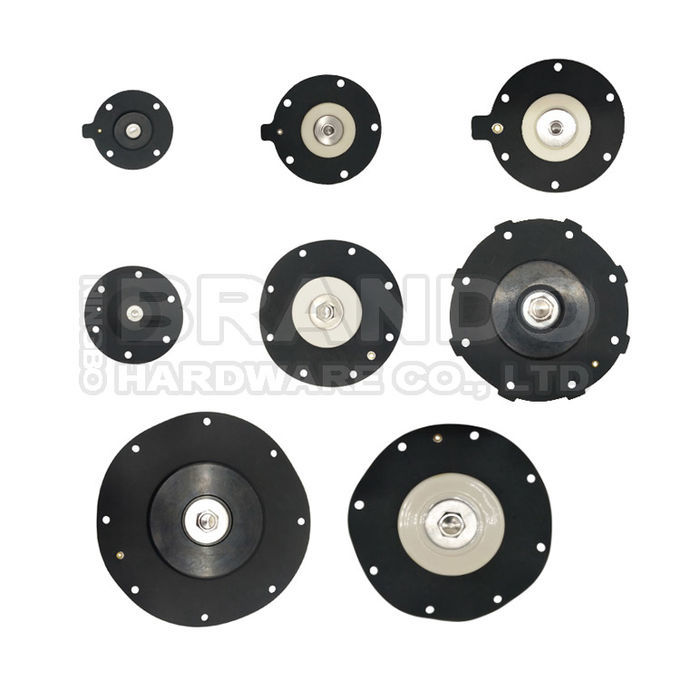

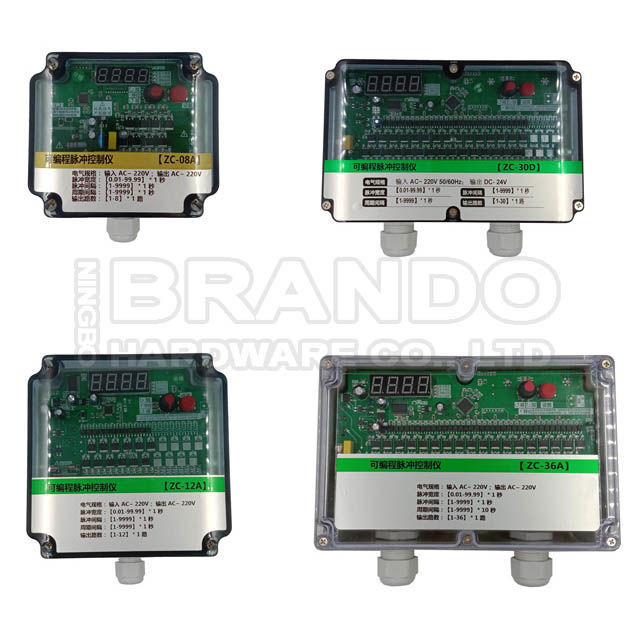

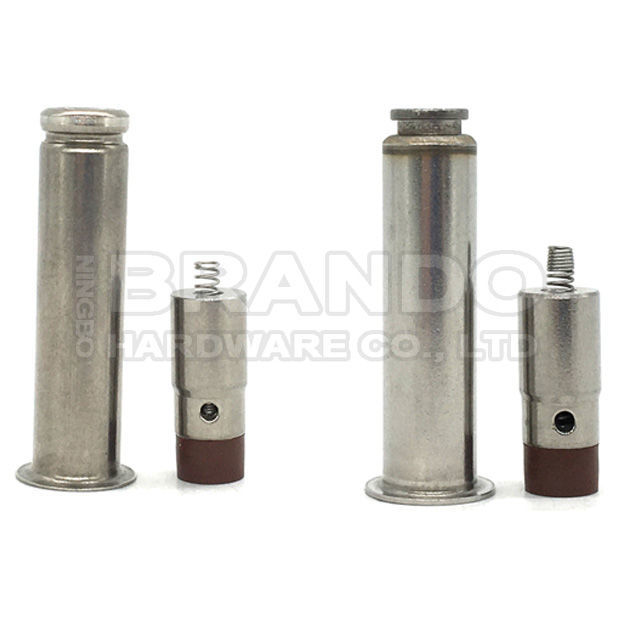

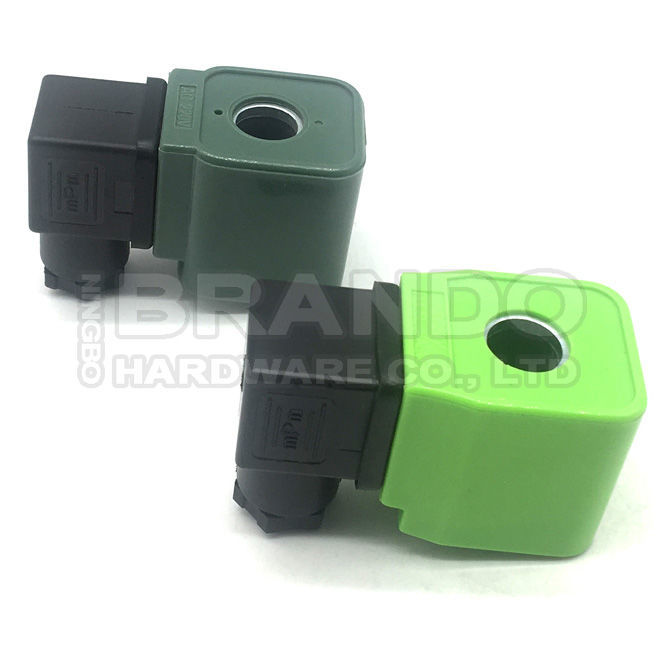

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
