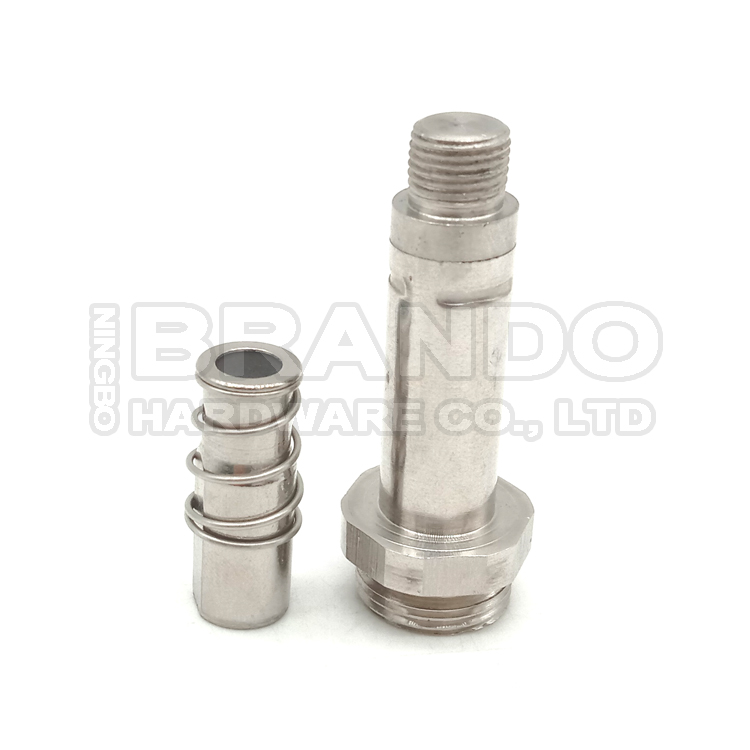

GPC10 Armature For Turbo Pulse Valve
4 year ago
Integral Pilot Pulse Valve GPC10 Turbo Pole Assembly
GPC 10 armature assembly can be used in all series turbo type solenoid pulse valve. Including F series with threaded connection, D series pulse valve with compression fitting, e series pulse valve with flange inlet, SQ series pulse valve for square tank and FD series pulse valve straight through. FP20, FP25, DP20, DP25, EP25, SQP20, SQP25, FDP20, FDP25, FP40, DP40, EP40, FP50, FP55, SQP50, SQP55, SQP60, SQP65, FP65, SQP75. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Dimension & Data of GPC 10 Armature, BH10 Coil for Turbo Pulse Valve:
|
BRANDO Model
|
BAPC210029002
|
|
Ordeirng Code
|
GPC 10
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR
|
|

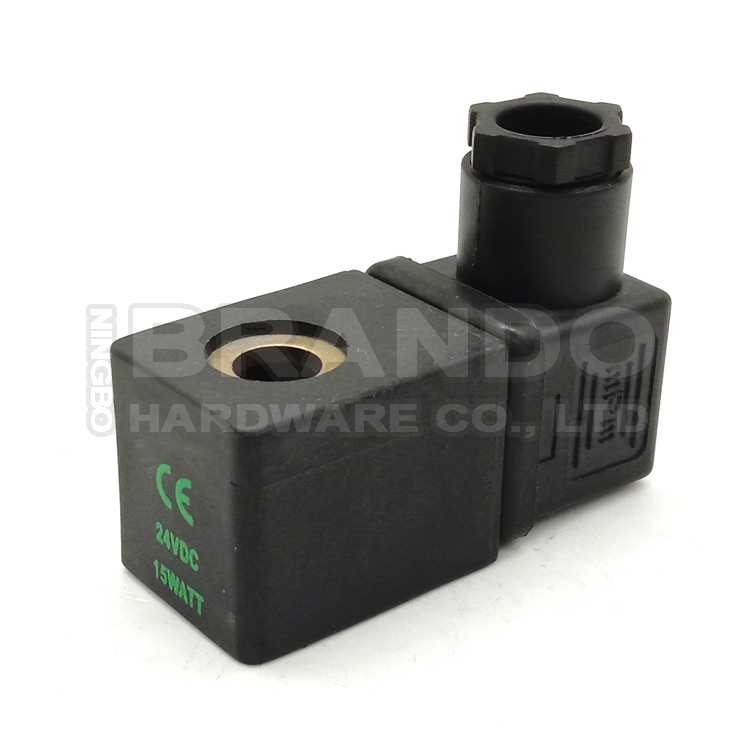

BRANDO Model
|
BB10230001
|
|
Ordering Code
|
BH10
|
|
Voltage
|
24VDC, 110VAC, 220VAC
(50/60Hz)
|
|
Power
|
10VA, 19VA, 6W, 15W
|
|
Connector
|
DIN 43650 Form A
|
|
Insulation Class
|
F, H
|
BRANDO Solenoid Valve Armature Production Video:

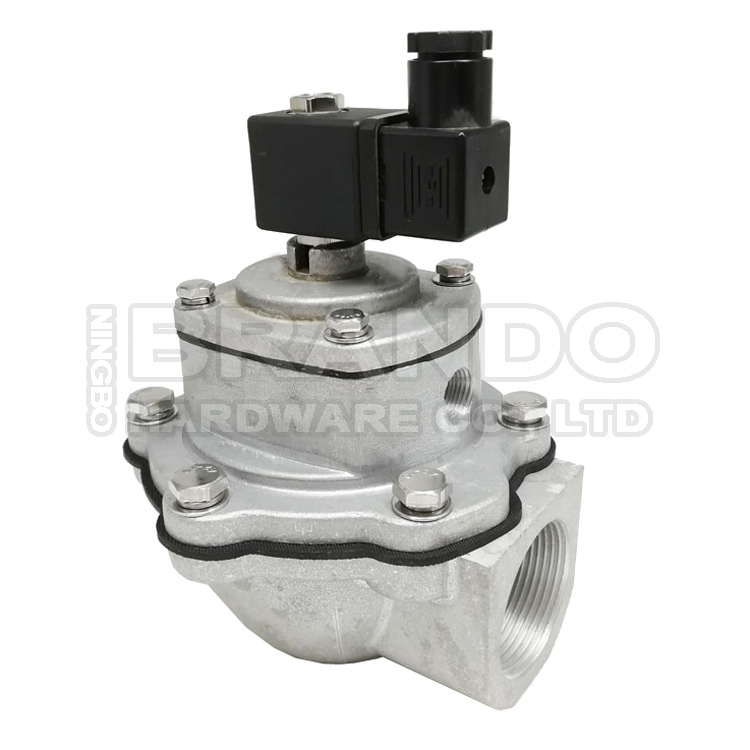

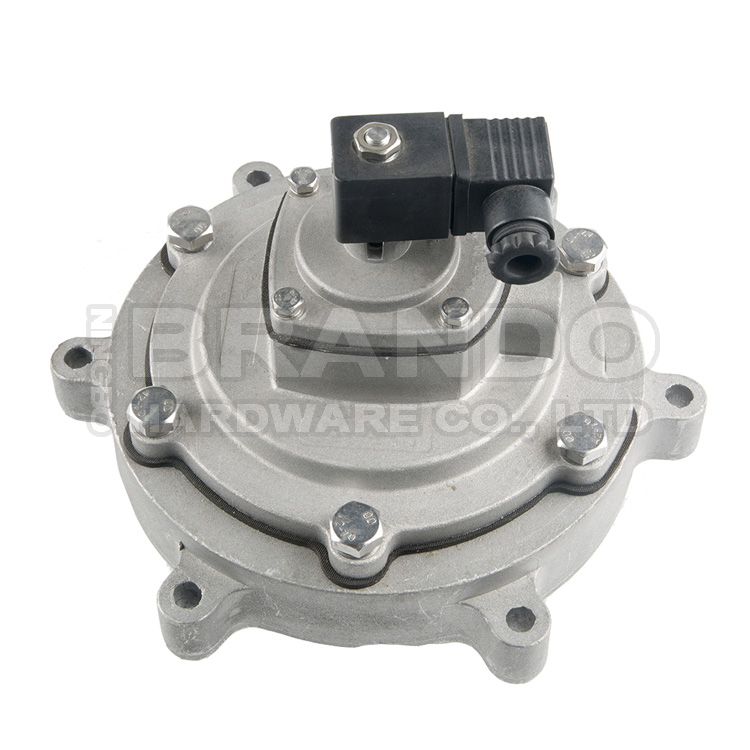

More Turbo Type Pulse Jet Valve for you to choose:
 |
 |
 |
| Threaded Type | Submerged Type |

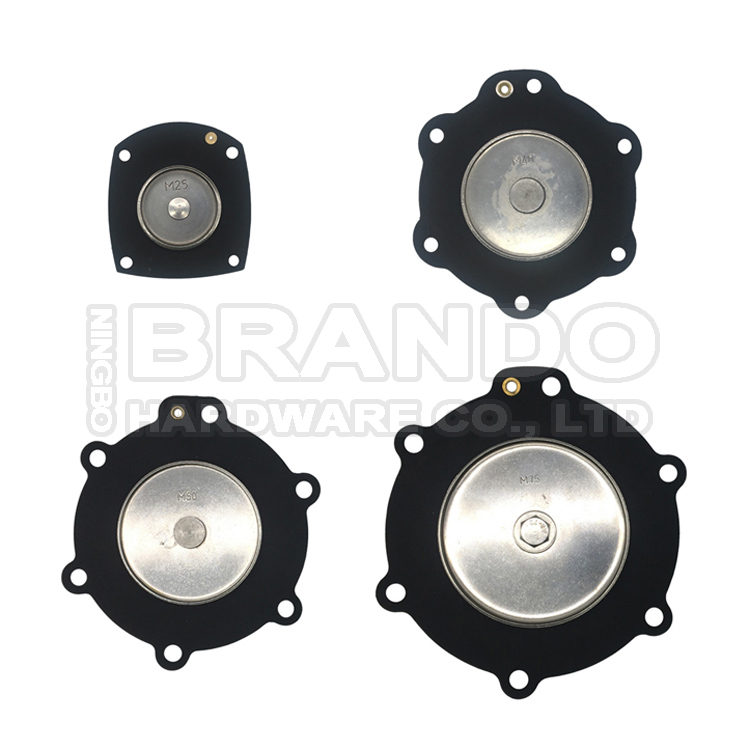

Valve Diaphragm |
 |
 |
 |
|
Solenoid Coil |
Solenoid Armature |
Pulse Controller |
