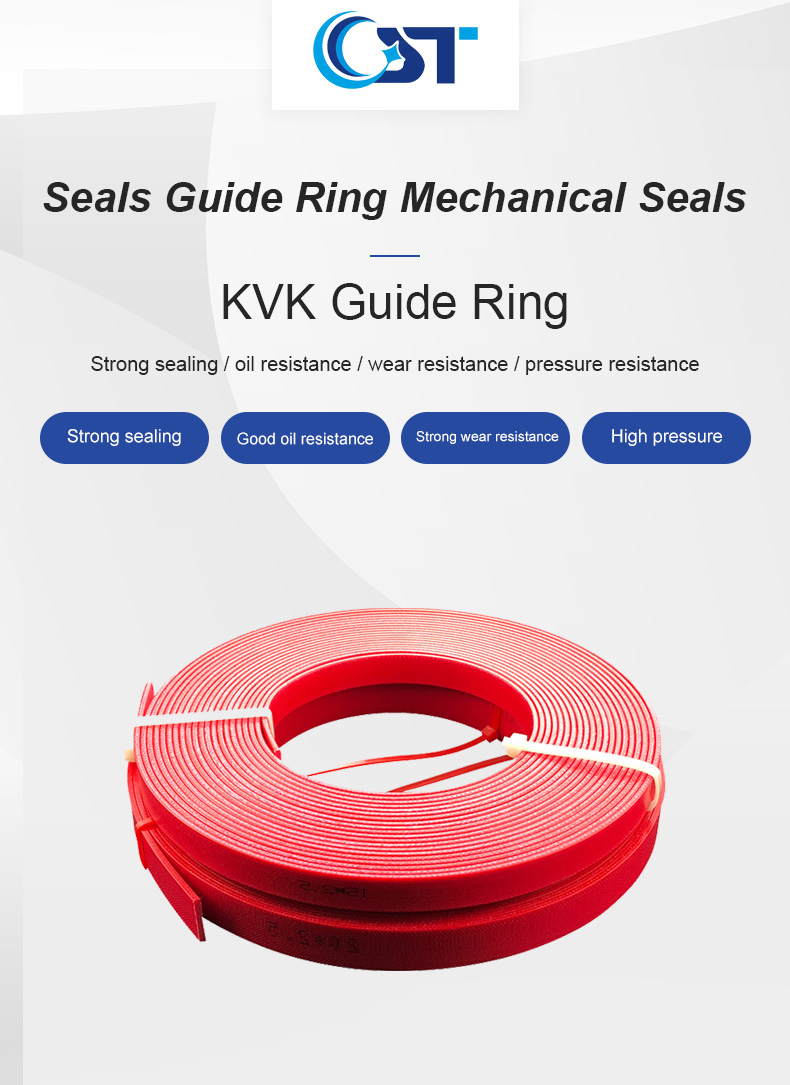

Guide Ring Red phenolic resin cloth

FC guide ring has good wear resistance and is generally used for guiding pistons and piston rods. The guide belt can be cut into any length. The guide belt is packaged into a length of 10 meters per roll for sale. Customers can cut it into any length for use according to their needs. It is suitable for repair and maintenance, especially for large sizes (＞ 100 mm). It is easy to install, maintenance free, and corrosion resistant. The sliding surface has no contact with metal, thus reducing the risk of damage to metal parts, It has good sliding performance, excellent emergency working conditions in case of insufficient sliding, shock absorption effect, improved radial load bearing capacity, accurate tolerance and dimensional accuracy compared with thermoplastic materials.

O Ring Seal Material: phenolic resin
Medium: all lubricating media
Operating temperature ℃: - 40 to+120
Specific gravity: 1.1g/cm3
Thermal expansion coefficient: 8.3x10-5 (k-1)
Ring Sealing Speed: ≤ 1m/s
Friction coefficient: 0.15-0.2
Compressive strength: 3.9N/mm2
