BH10 Coil For Turbo Pulse Valve
4 year ago
BH10 Turbo Type Solenoid Valve Coil 24VDC 220VAC
This is BH10 solenoid coil for Turbo pulse jet valves. Voltage: 24VDC, 110VAC, 220VAC; Power: 19VA,15W; Connector: DIN 43650 Form A. Fitted Turbo Pulse Jet Valve Model: FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25, FP40, FM40, DP40, DM40, EP40, EM40, FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65, FP65, FM65, SQP75, SQM75.

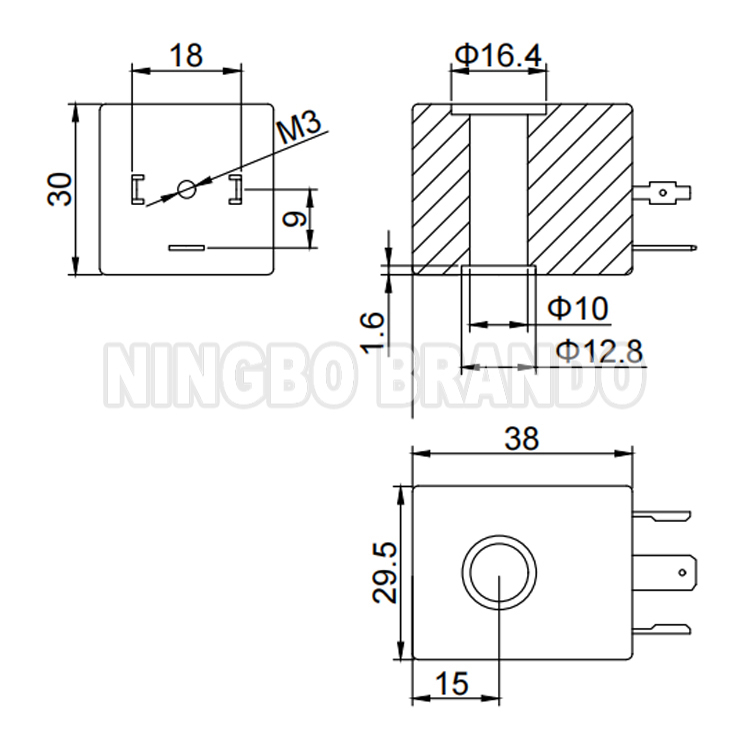

Dimension & Data of BH10 Coil, GPC 10 Armature for Turbo Pulse Valve:
|
BRANDO Model
|
BB10230001
|
|
Ordering Code
|
BH10
|
|
Voltage
|
24VDC, 110VAC, 220VAC
(50/60Hz)
|
|
Power
|
10VA, 19VA, 6W, 15W
|
|
Connector
|
DIN 43650 Form A
|
|
Insulation Class
|
F, H
|
|
BRANDO Model
|
BAPC210029002
|
|
Ordeirng Code
|
GPC 10
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR
|
BRANDO Solenoid Valve Coils Production Video:

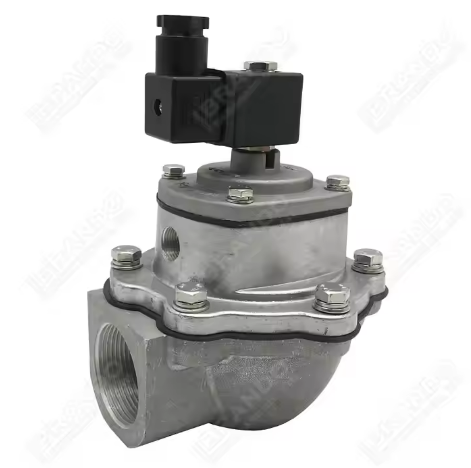

More Turbo Type Pulse Jet Valve for you to choose:
 |
 |
 |
| Threaded Type | Submerged Type |

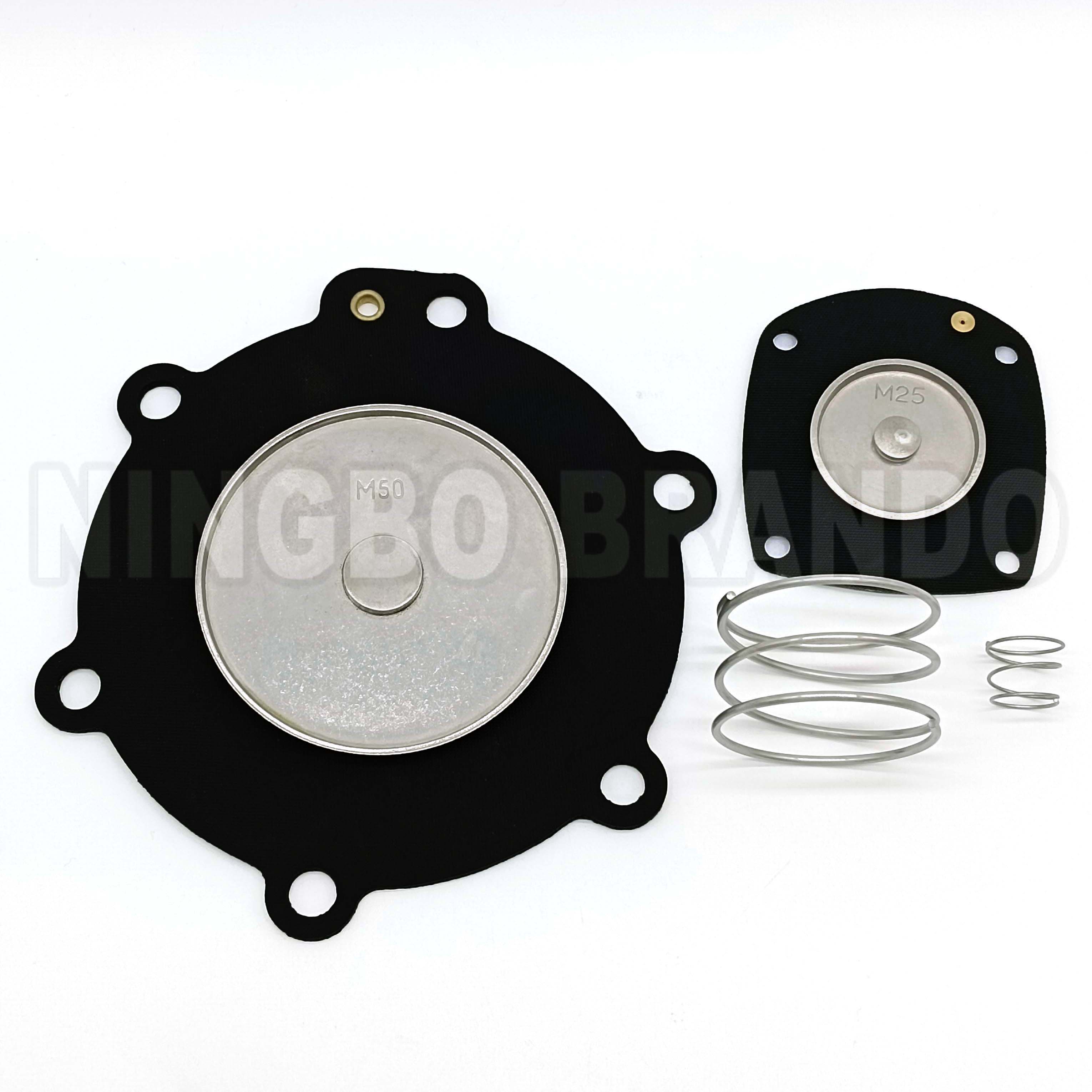

Valve Diaphragm |
 |
 |
 |
|
Solenoid Coil |

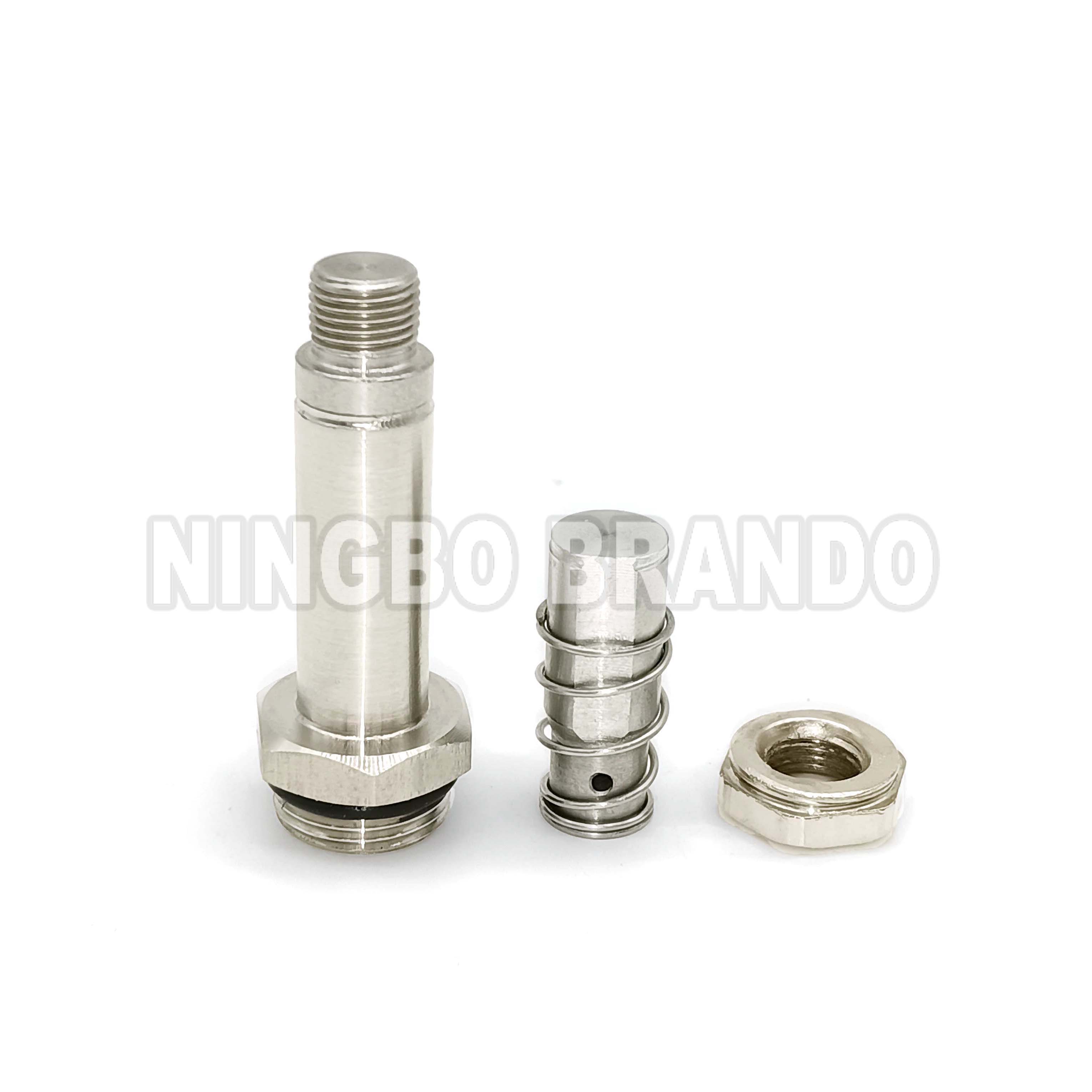

Solenoid Armature |
Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
