Product details

Danfoss Type Solenoid Coil 018F6857 24VDC 018F6801 220VAC

This solenoid coil is used for danfoss refrigeration solenoid valve. Ordering Code: 018F6807, 018F6811, 018F6801, 018F6802, 018F6803, 018F6815, 018F6813, 018F6814, 018F6856, 018F6857; Coil Type: BG024AS, BG110AS, BG230AS, BG240AS, BG380AS, BG024BS, BG110BS, BG220BS, BG012DS, BG024DS; Voltage: 24VAC, 110VAC, 220VAC; Power: 26VA, 12W, 20W; Connector: Terminal Box; Protection Class: IP67; Insulation Class: H.

Ordering Code of Solenoid Valve Coil:

Coil type	Voltages	Power	Frequency (Hz)	Code No
BG024AS	24V AC	12W, 26VA	50	018F6807
BG110AS	110V AC			018F6811
BG230AS	220-230V AC			018F6801
BG240AS	240V AC			018F6802
BG380AS	380-400V AC			018F6803
BG024BS	24V AC		60	018F6815
BG110BS	110V AC			018F6813
BG220BS	220V AC			018F6814
BG012DS	12V DC	20W	DC	018F6856
BG024DS	24V DC	20W	DC	018F6857

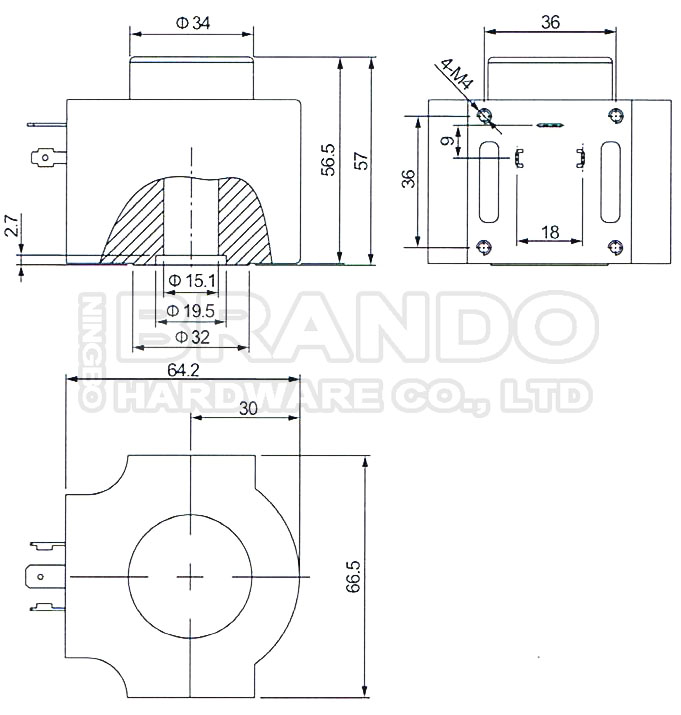

Dimension & Data of BG Coil & Armature:

BRANDO Model	BB15045054
Coil Type	BG
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Power	26VA, 12W, 20W
Connector	Terminal Box
Protection Class	IP67
Insulation Class	Class H

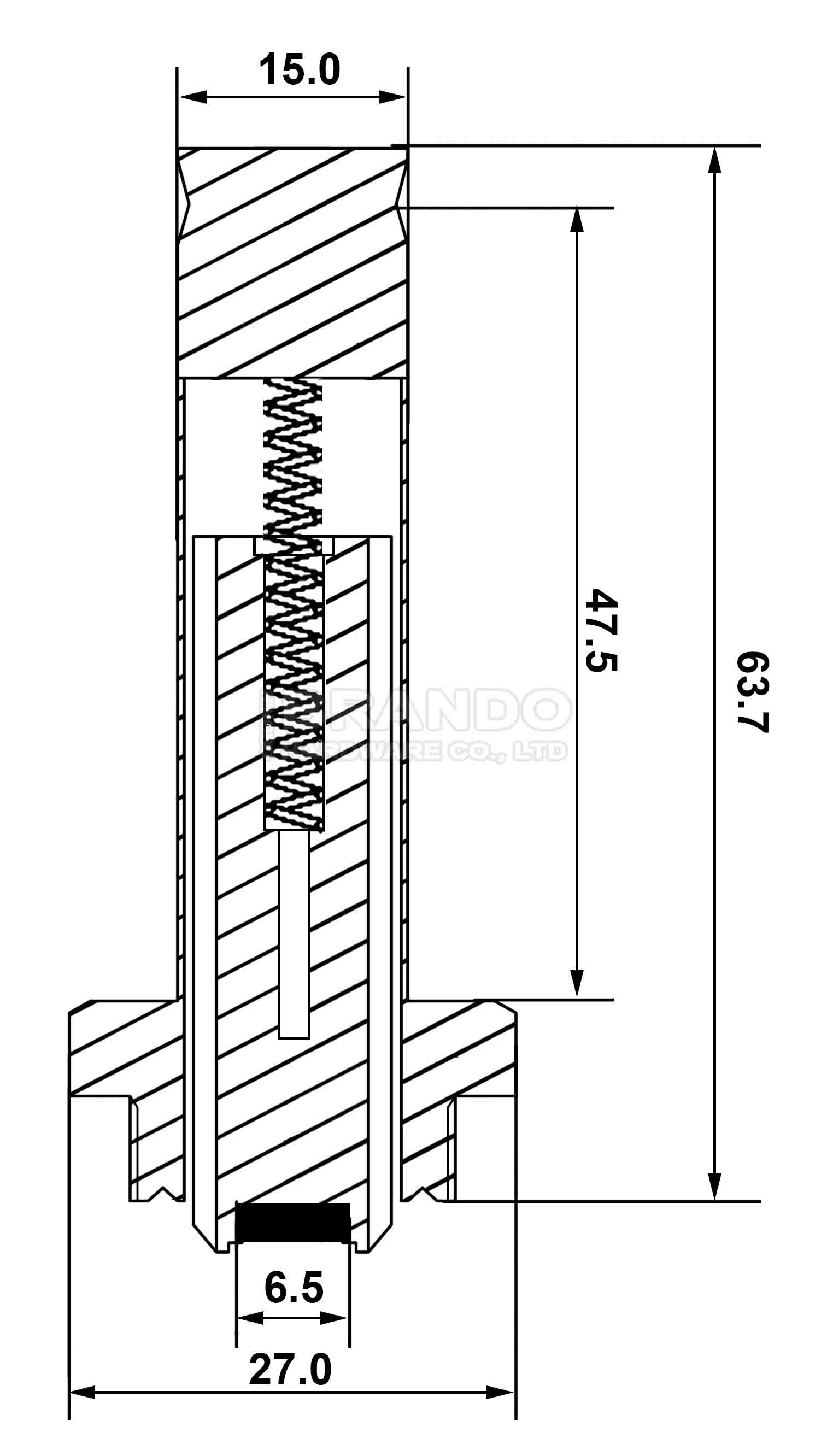

DANFOSS ARMATURE

BRANDO Model	BAPC215047522
2 Way or 3 Way	2 Way
NC or NO	NC
Plunger Tube Material	Stainless Steel
Moving Core Material	430FR
Shading Ring Material	Copper
Seal Material	PTFE
Seat Type	Thread

BRANDO Solenoid Valve Coils Production Video:

More Refrigeration Solenoid Valves for you to choose:


Danfoss Type Solenoid Valve	Ammonia Solenoid Valve	Castel Type Solenoid Valve

Expansion Valve	Solenoid Valve Coil	Solenoid Valve Armature

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
