Product details

2GE+1POTS WiFi AC XPON ONT

This GPON ONT based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications.This ONU has a FEM module, which can improve the transmission power and reception sensitivity of WIFI, making the coverageof WIFI larger.Inaddition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the Runtop EPON GPON OLT.The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conformstoaseriesofinternational technical standards such as IEEE802.3ah and ITU-T G.984.

WiFi5 Dual Band 1200Mbps GPON ONT Highlights

WiFi-FEM module
SIP protocol
EasyMesh protocol
IPv4 and IPv6 dual stack
802.11n/ac WiFi(4T4R) function
Detect and exchange PON mode automatically

XPON ONT Software Parameter

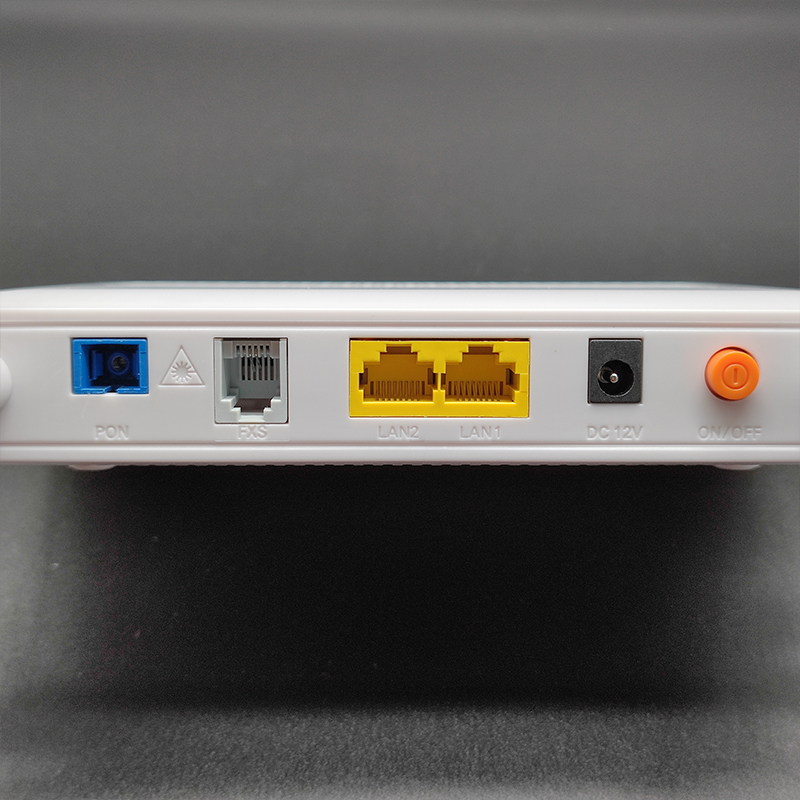

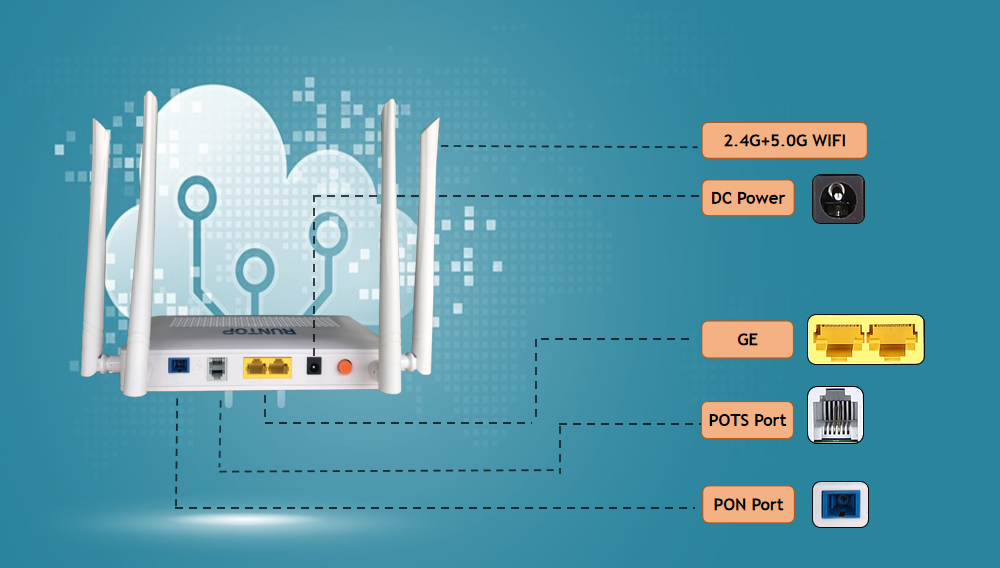

Interface	2GE+1POTS+WiFi5
Management Mode	OAM/OMCI/Telnet/WEB/TR069 Support full management of HGU functions by Runtop OLT
Data	Full speed non-blocking switching 2K MAC address table 8 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Integrated IEEE802.1p QoS with four level priority queues Support auto polarity detection of Ethernet ports (AUTO MDIX) Support bridge, router and bridge/router mixed mode Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
WiFi	Integrated 802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 2.4GHz: 23dBm; 5GHz: 27dBm RX power: 2.4GHz: HT40-MCS7 -72dBm, 5GHz: VHT80 MCS9 <-63dBm Encoding scheme: BPSK、QPSK、16QAM and 64QAM Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS、CCK and OFDM
VOIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
Layer3	IPv4, IPv6 and IPv4/IPv6 dual stack DHCP/PPPOE/Static Static route, DHCP Server NAT/DMZ/DDNS/Virtual Server
Security	Support Firewall Support Mac filter Based on MAC or URL Support ACL
