Passive FTTH Node with WDM
7 month ago
Passive FTTH Optical Node with WDM
- RTP162-W is passive WDM optical receiver
- Small size, flexible and convenient for assembly
- Optical Receiver Range: -10~+2 dBm
- Frequency：45~1002MHz
- Wavelength: 1310 & 1490 & 1550nm
- Passive component
- Optical in: 1310/1490/1550nm
- PON out: 1310/1490nm
- RF out : Output level

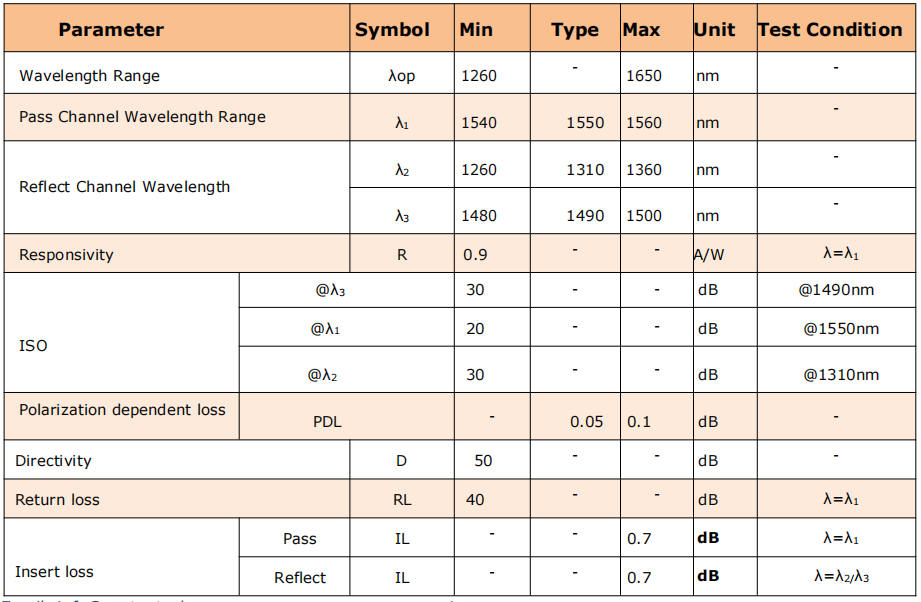

Specification:
|
Symbol
|
Parameters
|
Unit
|
MIN
|
TYP | MAX |
Condition
|
|
PIN
|
Optical receive convertion
|
nm
|
1550 | |||
| FL |
Flatness of frequency response
|
dB
|
±0.75 |
f=45 to 1002 MHZ
|
||
|
Vo
|
Output level
|
dBuV
|
60 | 62 |
Optical receive Powr Popt= -1dBm,f=1002MHz,
|
|
|
MER
|
Modulation Error Ratio
|
dB
|
38 | |||
|
BER
|
Bit Error Rate
|
dB
|
1.0E-9
|
