FTTH Active Optical Node with WDM

The RTA178-W has an WDM Connector. The amplifier supply voltage pin Connect to +5V(DC) . The modules have a mono mode optical input Suitable for 1310&1490&1550nm wavelengths a terminal to monitor the photo diode current and an electrical Output having a characteristic impedance of 75Ω. It can be used in CATV networks and Single Family Unit.

In an FTTH Optical Node with WDM, multiple users can connect to the network from a single fiber using different wavelengths of light. This allows for higher bandwidth usage because several channels can be packed into one physical fiber, significantly increasing the overall capacity of the network.

Features

Low-cost optical receiver
Low optical power reception
Excellent linearity
Excellent shielding effect
Excellent flatness
Standard CATV network
SC/APC & FC/APC

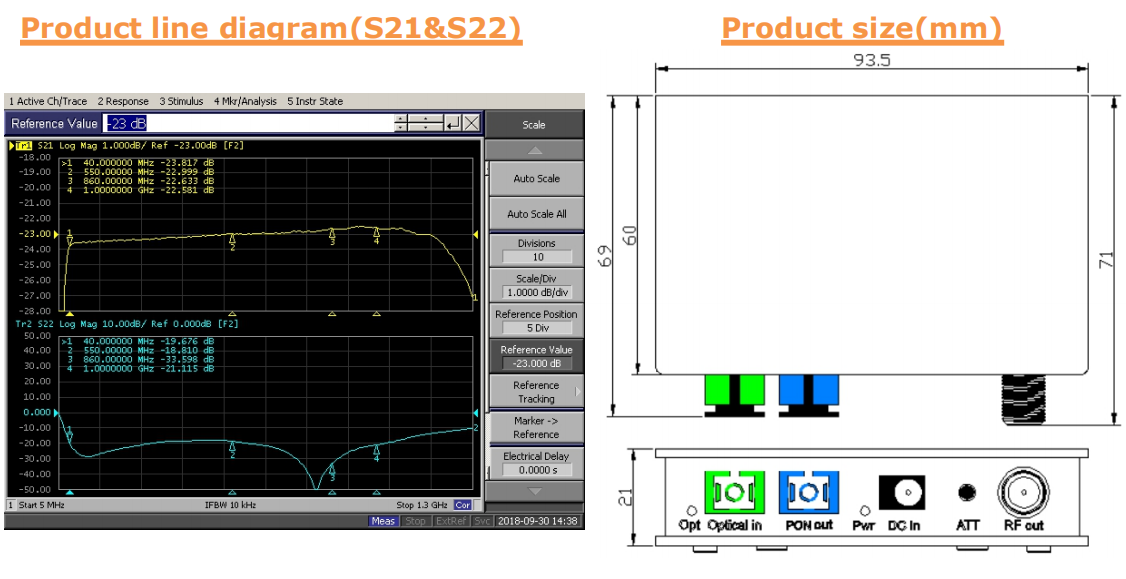

Connector Information

Optical in: 1310/1490/1550nm
PON out: 1310/1490nm
PWT: Power LED
DC in : +5V power
ATT : NC
RF out: Output level

Indicator instruction of input optical power

Red flashing > -2dBm
Green ≤ -2dBm & > -12dBm
Red ≤ -12dBm
