wear resistant pipe elbow

Why do you need the on-demand capability of Ceramic Lined Carbon Steel Pipe manufacturers? In fact, the main reason is that when users change the pipeline line, they change it according to the needs of the site, rather than the pipeline line that is changed according to the standard or common angle and bending radius, so almost all the pipelines on the later changed lines must be ceramic. The lined composite steel pipe manufacturers can customize different specifications according to the requirements. As well as the comprehensive service capabilities of ceramic-lined composite steel pipe manufacturers.

  Product Introduction

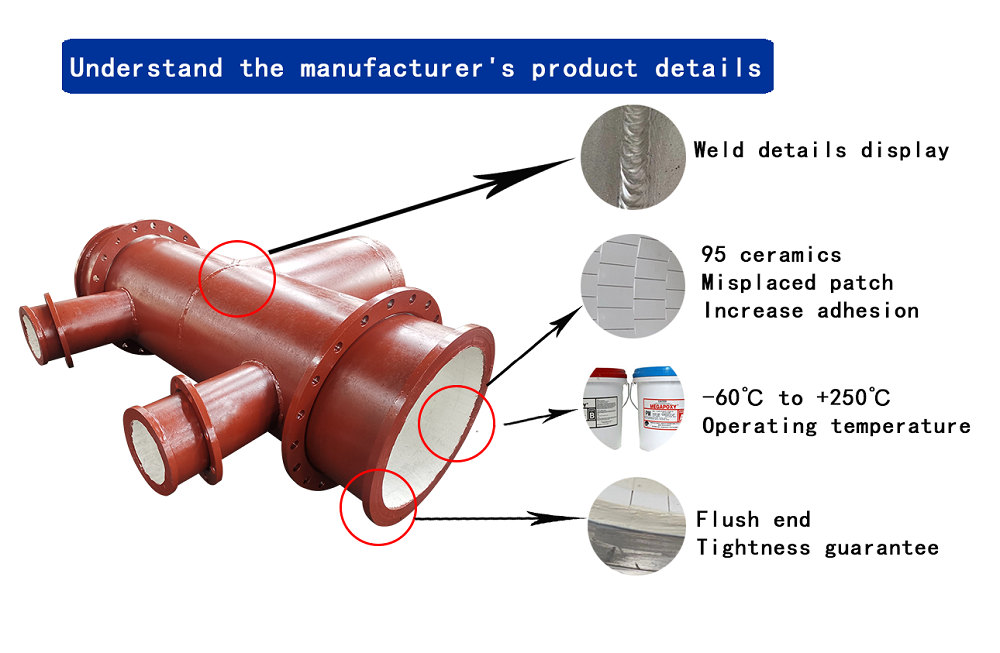

Ceramic abrasion resistant pipe fittings consists of three layers: outer layer of steel pipe, corundum layer and wear lines ceramic bonding layer. The internal ceramic layer is white. Ceramics are generally 95 ceramics, with temperature resistance of 250 ℃, high wear resistance and long service life. The commonly used ceramic composite pipe lining ceramic plates include: ceramic block, dovetail mutual pressure, welding type, mosaic, card slot and other nm450 high wear-resistant steel plates. Ceramic lined steel pipe adopts dislocation patch technology, so that the ceramic sheet is not easy to fall off.

  Product performance

1. Large hardness

   Rockwell hardness HRV 80-90

2. High wear resistance

   Wear resistance is equivalent to 20-30 times of high manganese steel

3. Light weight

   Its density is 3.9g/cm³, which is only half that of steel, which can greatly reduce the equipment load

4. Imported glue

   Magbao imported glue, bonding strength: 10Mpa, working temperature: -60℃ to +250℃, welding type, wear resistance up to 800℃

  Specifications

Technical parameters of wear-resistant ceramic pipes

Brand: Jianghe

Manufacturer: Jiangsu Jianghe Machinery Manufacturing Co., Ltd.

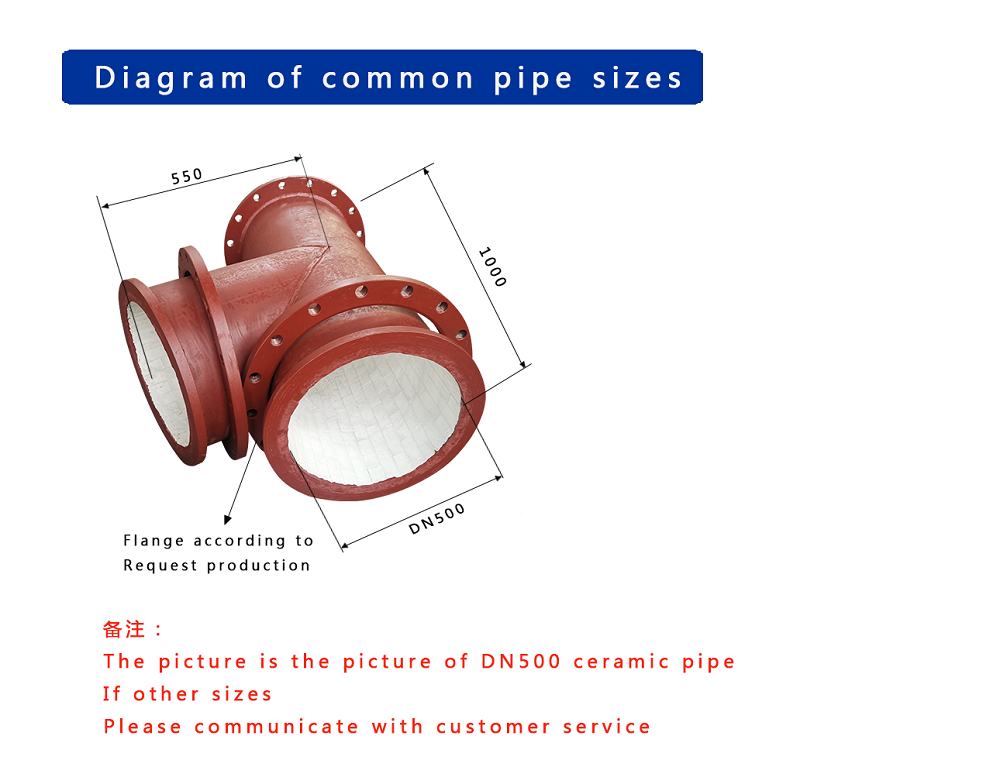

Pipe diameter: ≥DN100

Steel pipe thickness: ≥4mm

Steel pipe material: Q235 or stainless steel

Ceramic thickness: 4mm, 6mm, 8mm, 10mm, etc.

Connection method: flange, welding, casing, V-connector

Working pressure: ≤1.0MPa (other pressures need to be communicated with customer service)

  Ceramic sheet technical indicators

     Ceramic marking: 92-95

     Bulk density: 3.9g/cm³

    Tensile strength: 1030MPa

    Flexural strength: 212MPa

Hardness HRV: 80-90

  Manufacturer Service

1. Free technical answers

2. Free CAD or 3D drawing

3. Paid surveying and mapping services
