Bimetal wear-resistant composite pipe
3 year agoChoose Jiangsu Jangho bimetal lined high chrome alloy pipe manufacturer, so that you can enjoy the one-to-one technical exchange service of Bimetal Wear-resisting Compound Pipe manufacturer. If there are any product related issues, we will promptly resolve them, you don't have to worry about not being able to reach anyone; Customize Abrasion Resistant Pipe Fittings according to customer needs. As long as you provide good parameters, Jiangsu Jangho can quickly quote you; we can also provide door-to-door surveying and mapping services, and the delivery time will not be delayed~
What is a bimetal wear-resistant pipe
The bimetal wear-resistant pipeline is composed of 2 layers of metal, the outer layer is generally Q235 ordinary steel pipe, and the innerHigh chromium alloy,Optional welding and cutting, high wear resistance and heat resistance.
Common application range:
Coal powder conveying system and dry ash conveying pipe in thermal power plant
Stone coal system of thermal power plant
Other powder gas conveying systems
Hydraulic slag conveying system and slurry conveying with larger particle size
Coal washing plant gangue transportation, slime water, pump import and export, etc.
Transportation of large particles in mines
Wait
Product performance characteristics
1. Good wear resistance

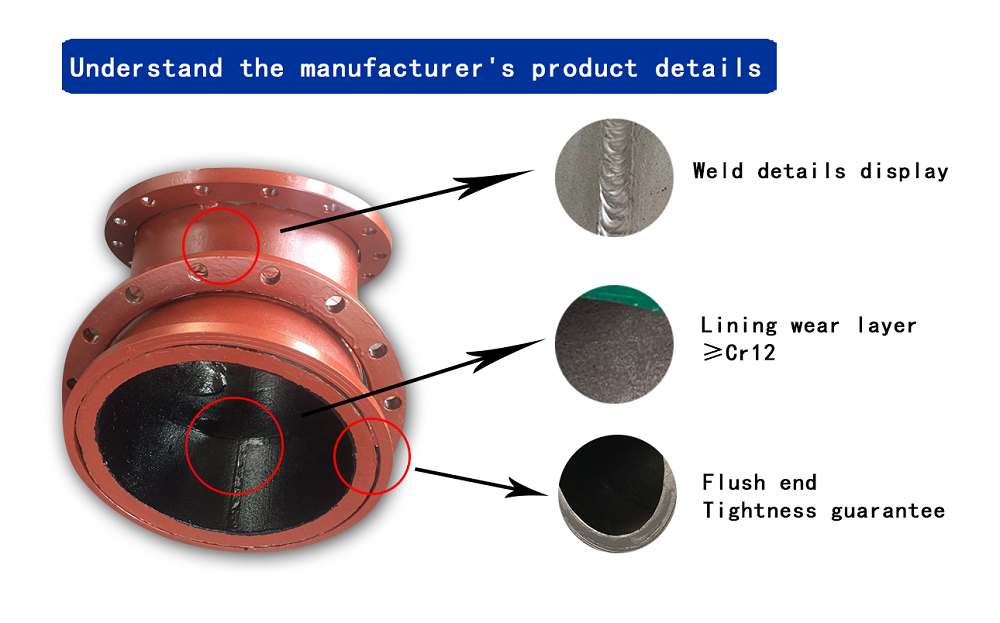

The double-layer metal structure guarantees the wear resistance and corrosion resistance of high chromium cast steel
2. High pressure
The outer steel pipe can be any pressure steel pipe to ensure the pressure requirements
3. Has good impact performance
4. Easy to install
Can be cut and welded arbitrarily
Common technical parameters
Brand: Jianghe
Manufacturer: Jiangsu Jianghe Machinery Manufacturing Co., Ltd.
Price: 300-1200 yuan/piece (please communicate with customer service for details)

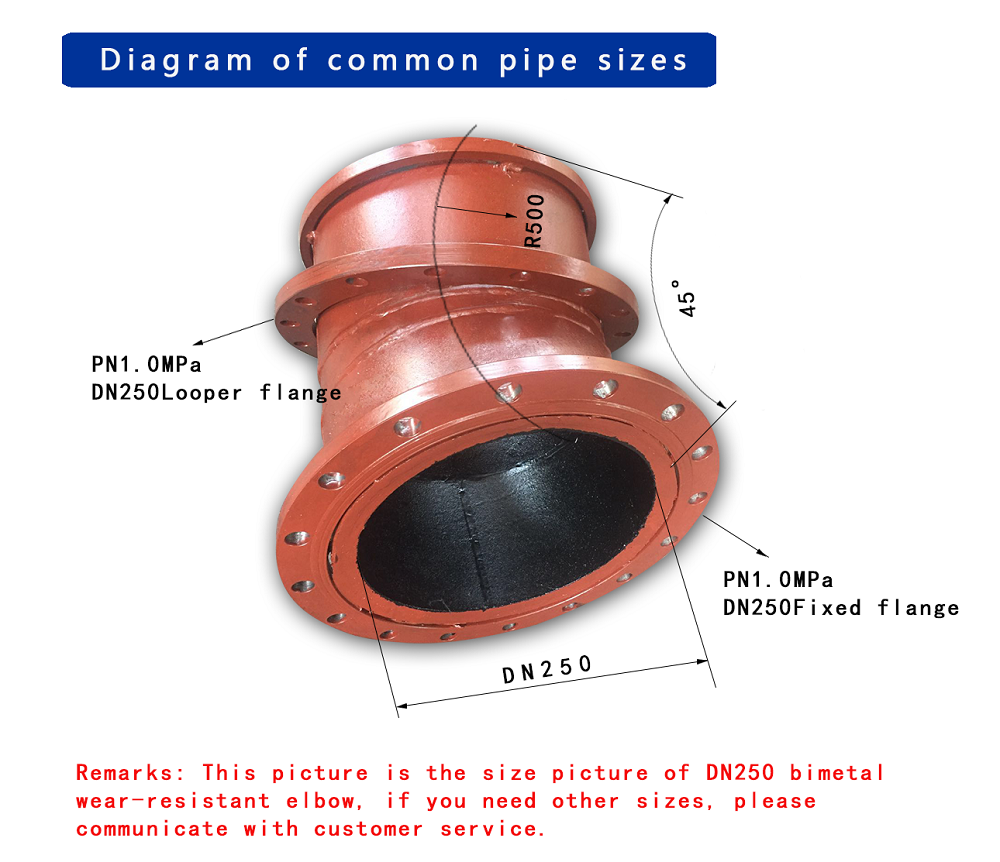

Pipe diameter: ≥DN80
Steel pipe thickness: ≥4mm
Steel pipe material: Q235 or stainless steel
Lining thickness: ≥12mm (usually double the thickness of the outer steel pipe)
Lining material: high chromium alloy Cr12-Cr25 (please communicate with customer service for the rest)
Connection method: welding, flange, V-type connector, etc.
Packaging method: conventional packaging + export packaging available (export packaging needs to be communicated with customer service)
Bending radius: according to requirements
Angle: according to requirements
Manufacturers provide services
1. Free technical answers
2. Free CAD or 3D drawing
3. Paid surveying and mapping services
