Self-propagating ceramic wear-resistant pipe

product description

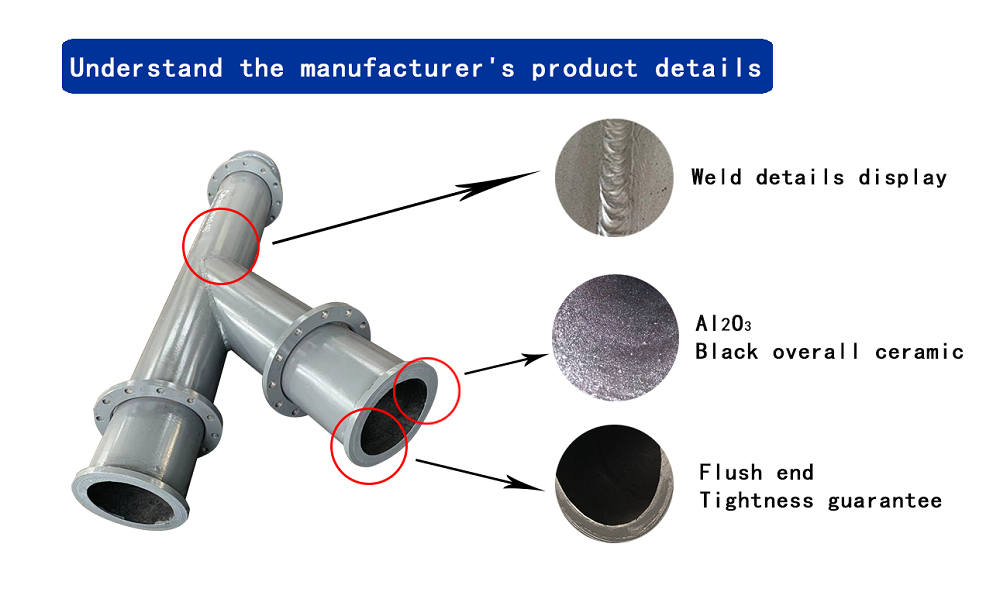

Ceramic Lined Pipe, also known as one-piece ceramic pipe, is made by casting Ceramic Lined Steel Pipe as a whole and pouring it into the steel pipe with special fillers. Self-propagating Ceramic Pipe Fitting has smooth inner wall, good sealing performance, good wear resistance and corrosion resistance.





Self-propagating Wear Resistant Pipe Performance Features

1. Wear resistance

The wear-resistant life is more than 10 times higher than that of carbon steel pipes

2. Temperature resistance

Ordinary steel pipe layer can withstand 900 ℃

Stainless steel tube layer can withstand more than 1000 ℃

3. Acid resistance

Acid resistance 96%-98%, same as corundum ceramics

4. Corrosion resistance

Available in stainless steel

5. Easy to install

Can be arbitrarily cut and welded

6. Light weight

Its density is 3.9g/cm³, which is only half of steel, which can greatly reduce equipment load



  Specification

Brand: Jianghe

Manufacturer: Jiangsu Jianghe Machinery Manufacturing Co., Ltd.

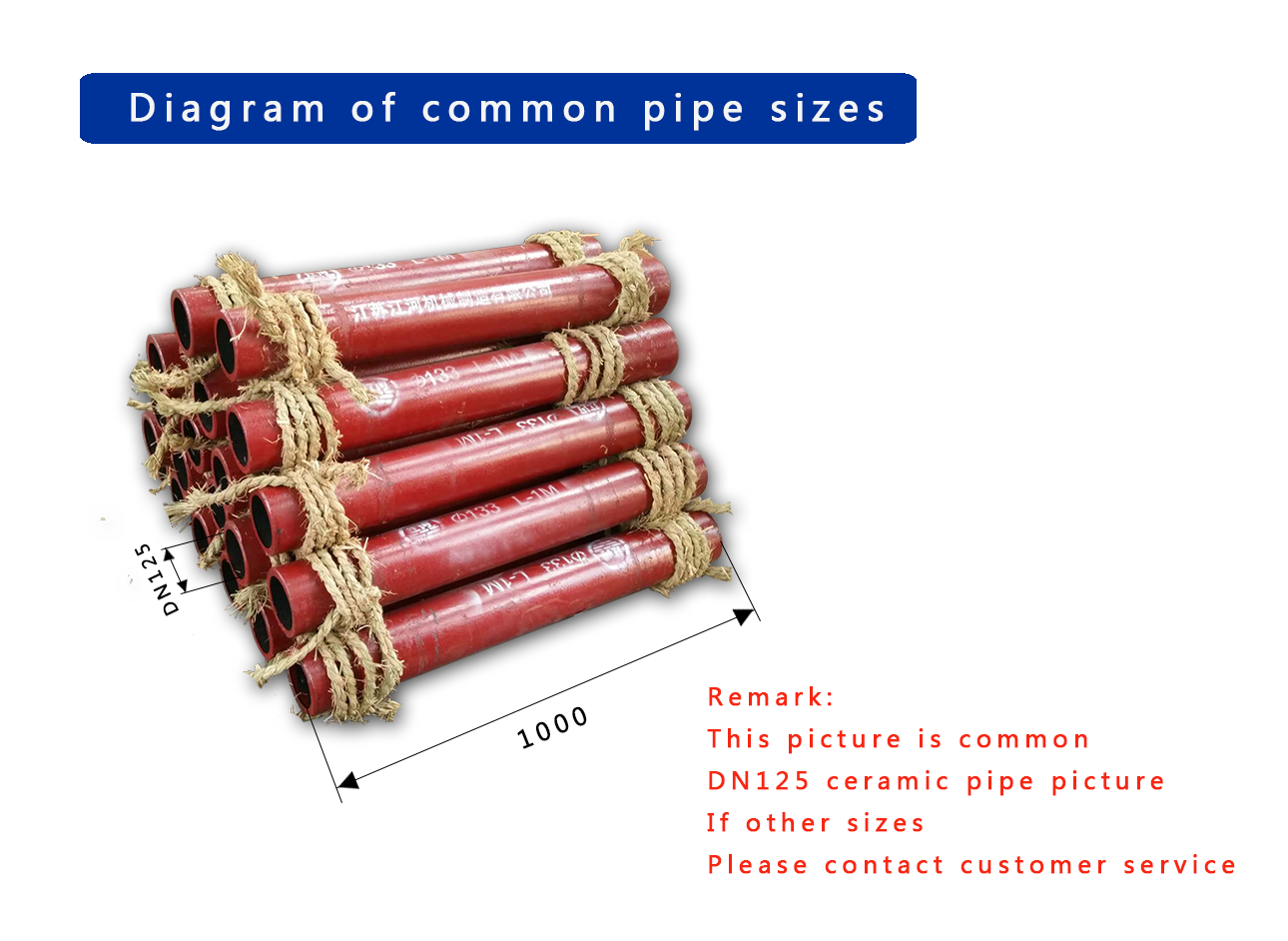

Pipe diameter: ≥DN80

Steel pipe thickness: ≥6mm

Steel pipe material: Q235 or stainless steel

Ceramic thickness: generally 3mm ~ 5mm, other please communicate with customer service

Connection method: flange, welding, V-connector

Working pressure: generally 1.0MPa, other pressure please communicate with customer service

Working temperature: ordinary steel pipe≤900℃, stainless steel pipe≥1000℃

Bulk density: 3.9g/cm³



  Manufacturer provides service

1. Free technical answers

2. Free CAD or 3D drawing

3. Paid surveying and mapping services
