Nass Magnet Type Solenoid Coil 0543 24VDC 220VAC
This solenoid coil is same with Nass Magnet solenoid coil 0543, which is popularly used in Shako solenoid valves, like PU220A, PU225A, SPU225A, PU225S series. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 20W, 12W, 13W, 22VA, 15VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

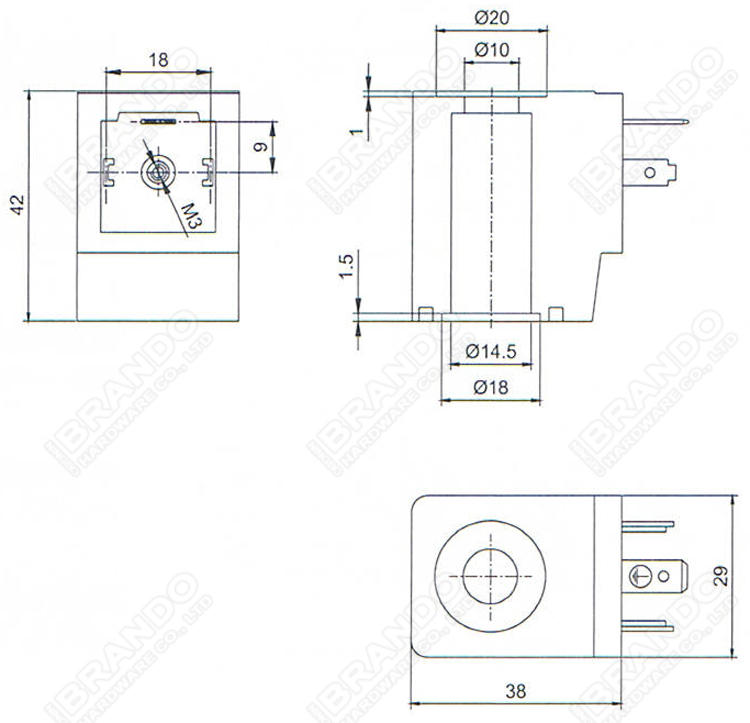

Dimension & Data of Solenoid Valve Coil, Armature:
|
BRANDO Model
|
BB14542004
|
|
Ordering Code
|
0543
|
|
Voltage
|
220VAC, 110VAC,
24VDC, 12VDC
|
|
Power
|
20W, 12W, 13W, 22VA, 15VA
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
BRANDO Model
|
BAPC214548001
|
|
Function
|
2 Way Normally Closed
|
|
Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, EPDM, FKM
|
Ordering Code of 0543 Solenoid Coil:
| Code No | Voltage |
Frequency (Hz) |
Power
W/VA
|
|
| 113-030-0042 | 24VDC | 2,0 | ||
| 113-030-0045 | 48VDC | 2,1 | ||
| 113-030-0032 | 48VDC | 1,6 | ||
| 113-030-0032 | 220VAC | 50 | 6,4 | |
| 113-030-0032 | 230VAC | 50 | 6,6 | |
| 113-030-0032 | 240VAC | 50 | 5,7 | |
| 113-030-0278 | 12VDC | 6,0 | ||
| 113-030-0026 | 24VDC | 6,1 | ||
| 113-030-0029 | 24VAC | 50 | 10,8 | |
| 113-030-0029 | 24VAC | 60 | 9,6 | |
| 113-030-0036 | 110VAC | 50 | 11,1 | |
| 113-030-0036 | 120VAC | 60 | 11,7 | |
| 113-030-0033 | 220VAC | 50 | 10,8 | |
| 113-030-0044 | 12VAC | 50 | 19,3 | |
| 113-030-0044 | 12VAC | 50 | 17,1 | |
| 113-030-0027 | 24VDC |
|
11,0 | |
| 113-030-0039 | 24VAC | 50 | 17,9 | |
| 113-030-0039 | 24VAC | 60 | 15,6 | |
| 113-030-0037 | 110VAC | 50 | 17,6 | |
| 113-030-0037 | 120VAC | 50 | 18,3 | |
| 113-030-0034 | 220VAC | 50 | 18,1 | |
| 113-030-0034 | 240VAC | 60 | 18,9 | |
| 113-030-0033 | 240VAC | 50 | 11,4 | |
| 113-030-0047 | 12VDC | 15,0 | ||
| 113-030-0028 | 24VDC | 15,0 | ||
| 113-030-0040 | 24VAC | 50 | 21,8， | |
| 113-030-0040 | 24VAC | 50 | 19.4 | |
| 113-030-0043 | 48VAC | 50 | 26,2 | |
| 113-030-0043 | 48VAC | 50 | 23,2 | |
| 113-030-0052 | 48VAC | 50 | 19,0 | |
| 113-030-0052 | 48VAC | 50 | 16,6 | |
| 113-030-0038 | 110VAC | 50 | 24,8 | |
| 113-030-0049 | 110VAC | 50 | 21,7 | |
| 113-030-0049 | 110VAC | 50 | 19,2 | |
| 113-030-0038 | 120VAC | 50 | 26,1 | |
| 113-030-0041 | 195VDC | 16,6 | ||
| 113-030-0035 | 220VAC | 50 | 22,0 | |
| 113-030-0050 | 230vAC | 50 | 21,4 | |
| 113-030-0050 | 230VAC | 50 | 19,0 | |
| 113-030-0031 | 240VAC | 50 | 17,9 | |
| 113-030-0035 | 240VAC | 50 | 23,2 | |
BRANDO Solenoid Valve Coils Production:
More Solenoid Valves for you to choose:
 |
 |
|
Brass Solenoid Valve (PU220A Series) |
Brass Solenoid Valve (PU225A Series) |
 |
 |
|
Stainless Steel Solenoid Valve (SPU225A Series) |
Brass Steam Solenoid Valve (PU225S Series) |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
