Product details

Cnc Lathe Iso30 Vent Groove Tool Holder Iso30-Er32-50

We are Pingyuan Best Machine Tools., Co., Ltd., the high-end cnc machine tools manufacturer and supplier from China. Our products line is over 100 models, mainly include: Collet Chuck , Tool Holder Device , Collet , Spanner , Pull Stud and Nuts , Etc. Collet chuck also include many standards and models like: ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series, etc.

Product description

Brand Name

BESTMYT

Model Number

ISO30-ER32-50 Vent Groove Tool Holder

Rotate speed

G2.5 30000 rpm,for ATC 9/12KW spindle

Color

Silver white with embeded type nickel film coating anti-rust design

Size

ISO30-ER32-50L Vent Groove Nickeled

Material

20/40CrMnTi, black-finished and precisely grinned and film coating

Max run out

<0.005mm

Surface Roughness

Ra <0.005mm

Shank body standard

DIN6499B

Hardness

HRC58-62

Accuracy

≤0.002 mm

Roughness

<Ra0.4

Carbonizing depth

>0.8mm

Balance

G2.5 30000RPM

Weight

0.85kg

Warranty

3 years

Function

Great processing and fine making. Suitable for drill iron bed, grinder, lathe,process,etc

Applicable Industries

Building Material Shops, Manufacturing Plant, Machinery Repair Shops,Retail, Construction works ,Advertising Company etc.

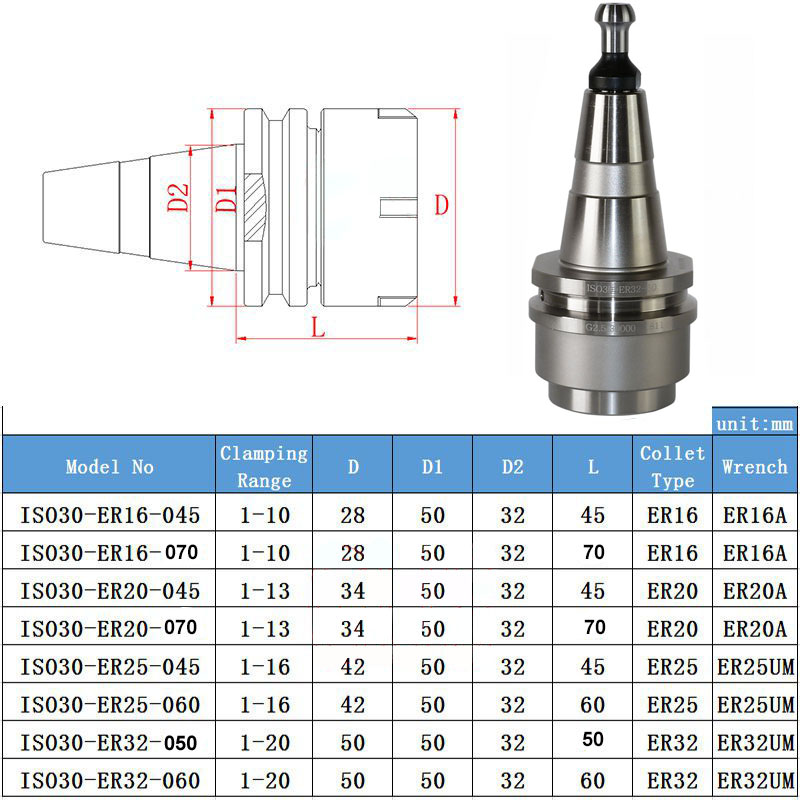

product drawing and size

50L 1

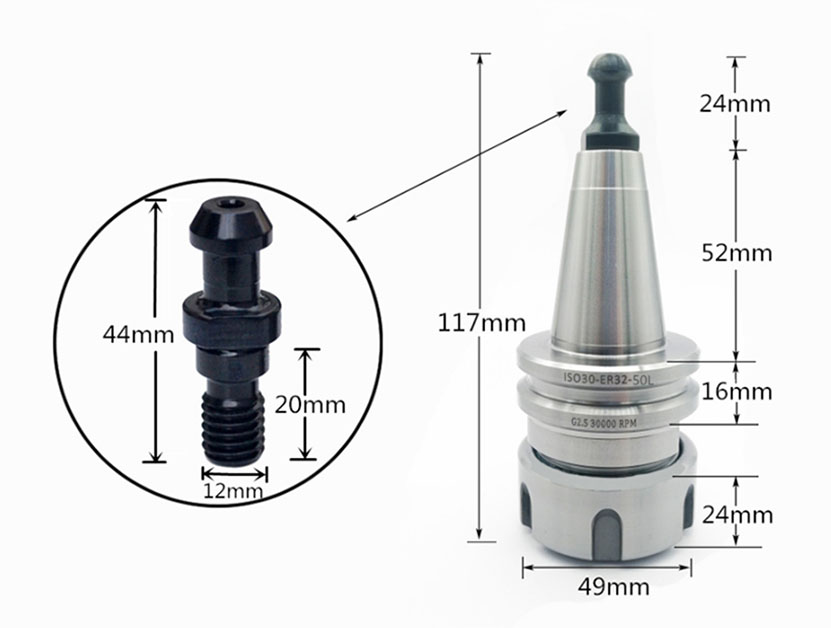

parameter

product features

1) Dynamically balanced to 30,000RPM at G2.5 by Haimer balancing machine at all location for consistent balance.
2) Unique design feature in the extension nose to minimize the off-balance nature of ISO 30 taper specification.

3) On the side of flange a flat is cut to compensate the weight of the metal chips lost.

4) This design allows the left side and right side of the holder to achieve 50-50 perfect weight distribution in its upright position.

5) Symmetrical design in evenly weight distribution will minimize centrifugal force in high speed spinning and thus maximize the holder's ability to hold the cutting tool concentric to spindle rotation


feature
