Hdpe board (High Density Polyethylene Board) has a melting point of about 130 ° C and a relative density of 0.941 to 0.960. It has good heat resistance and cold resistance, good chemical stability, high rigidity and toughness, and good mechanical strength. Dielectric properties and environmental stress crack resistance are also good. The melting temperature is 220~260C. For larger molecules, the recommended melting temperature range is between 200 and 250 °C. Hdpe Sheet Polyethylene, It is widely used in gas transportation, water supply, sewage discharge, agricultural irrigation, fine particle solid transportation in mines, oilfield, chemical industry, post and telecommunications, etc., especially in gas transportation.
|
Item name |
High Density Polyethylene |
|
Type: |
extruded |
|
Size: |
1000*2000mm or 1220*2440mm |
|
Thickness: |
1---200mm |
|
Density: |
0.96 g/cm³ |
|
Color: |
White / black / blue / green / yellow |
|
Brand name: |
AHD |
|
Material: |
100% virgin material |
|
Sample: |
FREE |
Physical Datasheet:
|
Item name |
High Density Polyethylene |
|
Color: |
white |
|
Proportion: |
0.96g/cm³ |
|
Heat resistance (continuous): |
90℃ |
|
Heat resistance (short-term): |
110 |
|
Melting point: |
120℃ |
|
Glass transition temperature: |
_ |
|
Linear thermal expansion coefficient (average 23~100℃): |
155×10-6m/(m.k) |
|
Flammability(UI94): |
HB |
|
(Dipping into water at 23℃: |
0.0001 |
|
Bending tensile stress/ Tensile stress off shock: |
30/-Mpa |
|
Tensile modulus of elasticity: |
900MPa |
|
Compressive stress of normal strain-1%/2%: |
3/-MPa |
|
Friction coefficient: |
0.3 |
|
Rockwell hardness: |
62 |
|
Dielectric strength: |
˃50 |
|
Volume resistance: |
1015Ω×cm |
|
Surface resistance: |
1016Ω |
|
Relative dielectric constant-100HZ/1MHz: |
2.4/- |
|
Bonding capacity: |
0 |
|
Food contact: |
+ |
|
Acid resistance: |
+ |
|
Alkali resistance |
+ |
|
Carbonated water resistance: |
+ |
|
Aromatic compound resistance: |
0 |
|
Ketone resistance: |
+ |
Tolerance Datasheet:
|
Size |
Thickness |
THICK Tolerance Range |
Width Tolerance |
Length Tolerance |
|
1000*2000mm |
1mm |
1--1.1mm |
1000--1008mm |
2000--2010mm |
|
2mm |
2--2.1mm |
|||
|
3mm |
3--3.1mm |
|||
|
4mm |
4--4.1mm |
|||
|
5mm |
5--5.1mm |
|||
|
6mm |
6--6.15mm |
|||
|
8mm |
8--8.15mm |
|||
|
10mm |
10--10.2mm |
|||
|
12mm |
12--12.2mm |
|||
|
15mm |
15--15.3mm |
|||
|
20mm |
20--20.4mm |
|||
|
25mm |
25--25.6mm |
|||
|
30mm |
30--30.8mm |
|||
|
35mm |
35--36.2mm |
|||
|
40mm |
40--41.5mm |
|||
|
45mm |
45.5--47mm |
|||
|
50mm |
50.5--52mm |
|||
|
60mm |
60.5--62.5mm |
|||
|
70mm |
70.5--72.5mm |
|||
|
80mm |
80.5--82.5mm |
|||
|
90mm |
90.5--93mm |
|||
|
100mm |
101--103.6mm |
|||
|
120mm |
121--124mm |
|||
|
150mm |
151--155mm |
|||
|
200mm |
202--207mm |
|||
|
|
|
|
|
|
|
1220*2440mm |
1mm |
1--1.1mm |
1220--1228mm |
2440--2450mm |
|
2mm |
2--2.1mm |
|||
|
3mm |
3--3.1mm |
|||
|
4mm |
4--4.1mm |
|||
|
5mm |
5--5.1mm |
|||
|
6mm |
6--6.15mm |
|||
|
8mm |
8--8.15mm |
|||
|
10mm |
10--10.2mm |
|||
|
12mm |
12--12.2mm |
|||
|
15mm |
15--15.3mm |
|||
|
20mm |
20--20.4mm |
|||
|
25mm |
25--25.6mm |
|||
|
30mm |
30--30.8mm |
|||
|
35mm |
35--36.2mm |
|||
|
40mm |
40--41.5mm |
|||
|
50mm |
50.5--52mm |
|||
|
60mm |
60.5--62.5mm |
|||
|
70mm |
70.5--72.5mm |
|||
|
80mm |
80.5--82.5mm |
|||
|
90mm |
90.5--93mm |
|||
|
100mm |
101--103.6mm |
|||
|
120mm |
121--124mm |
|||
|
150mm |
151--155mm |
|||
|
200mm |
202--207mm |

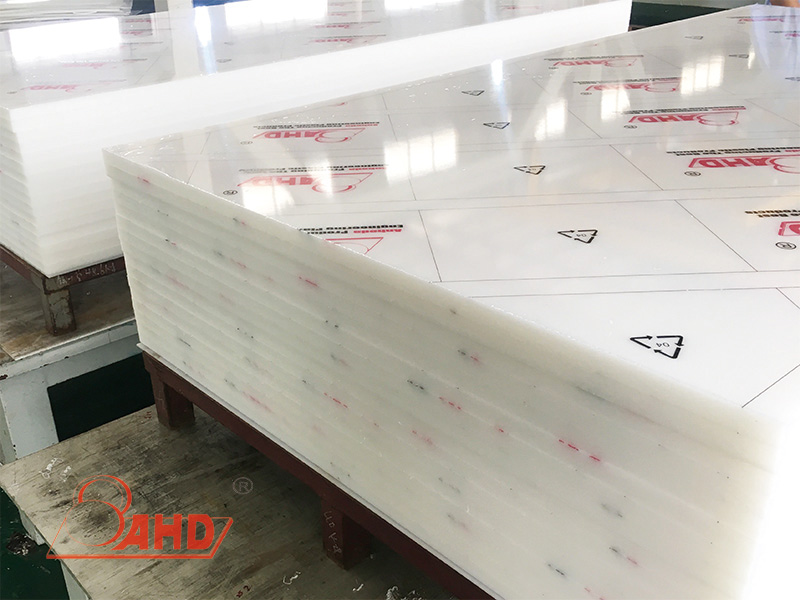

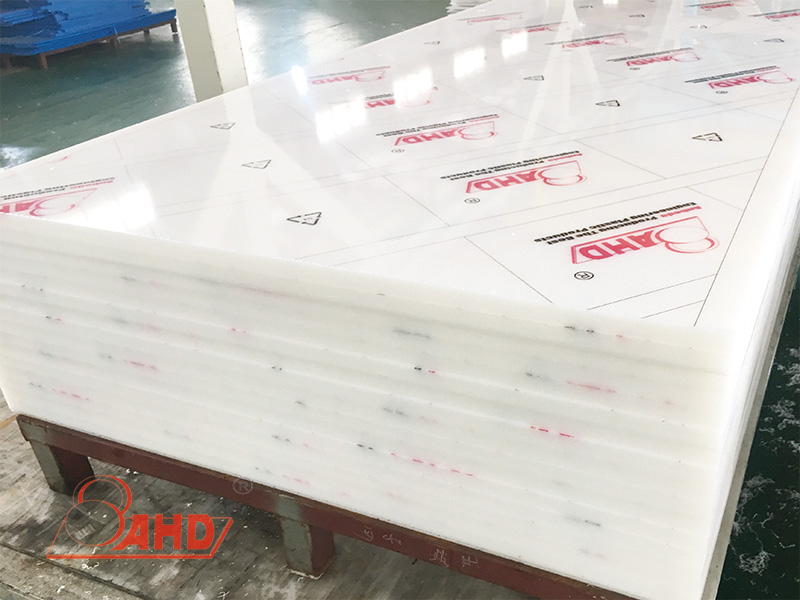

Photos:
FAQ:
Q1: Are you a manufacturer?
A1: Yes, AHD the the semi-finished engineering plastic products manufacturer in Shenzhen China since 1994s. Our main goods include [POM, HDPE, PP, PU, PA6, ABS, POM+GF, ESD POM, PA6+GF" sheet & rod.
Q2:How do I know your quality?
A2: Free sample will be able to verify our quality.
Q3: What`s payment?
A3: T/T,L/C,Western Union etc. About the payment details please feel free to contact free to contact us.Thank you!
Q4:Can you supply sample?
A4:Yes,we can supply you free small samples,but air cost will be paid by customers.
Q5:How many days will the samples be finished?And how about the mass production?
A5: Generally the samples will be sent immediately by the air express in 1--3 days, the leading time mass production is depended on the stock status and sizes
Our Competitiveness:
Company's advantages: abundant technical strength, considerate service, most advanced equipment, high stock inventory and superior product quality.
Sales network: shenzhen, Fozhou, Zhongshan, Shanghai, Suzhou, Kunshan, Xiamen, Chongqing etc.
Sales coverage: Germany, United States, India, Malaysia, Hongkong, Taiwan, Korea, Singapore, Southeast Asia, etc.
Production Capacity:
|
Product name |
Unit |
Output Capacity |
|
HDPE sheet& rod |
Ton |
400 tons/month |
|
PP sheet& rod |
Ton |
400 tons/month |
|
POM sheet& rod |
Ton |
400 tons/month |
|
PA6 sheet& rod |
Ton |
250 tons/month |
|
PC sheet& rod |
Ton |
400 tons/month |
|
PU sheet& rod |
Ton |
300 tons/month |
|
ABS sheet & rod |
Ton |
400 tons/month |
