Product details

                                           Acid and Alkali Resistant Imported Grade POM Sheet

Product Introduction

POM sheet is a crystalline plastic with better overall performance. It is very hard in thermoplastics. It is one of the varieties of plastic materials with mechanical properties close to metals. Its tensile strength, bending strength, fatigue resistance, and wear resistance Both sex and electricity are very good, and can be used for a long time between -40 degrees and -100 degrees.

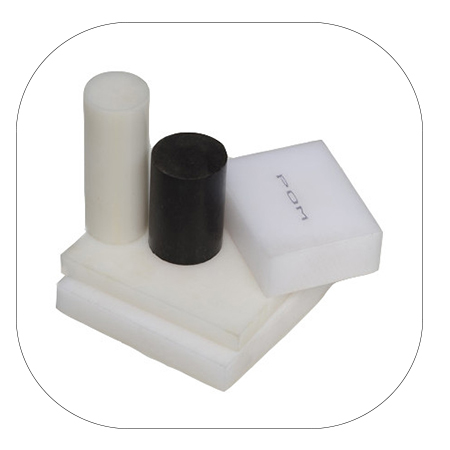

Delrin Sheet Photos

  White Delrin Board

  Pom Plate

Delrin Sheet Main Properties

♦Very good sliding properties

♦High resistance to solvents

♦Very high resistance to stress cracks

♦No microporosity.

♦High strength

♦High rigidity

♦High thermal stability

Good electrical insulation properties

POM Sheet Application

1. Automobile industries: POM sheet has a large application in car industries, because the mechanical parts made by POM, which has the advantages of high mechanical strength, high hardness, good wear-resistance, low co-efficient of friction, easy to maintain, reducing cost and so on, can be used in cars instead of coppery half stalk and planet gear.Extruded POM sheet not only saving coppe materials, but also improving service life. At the engine fuel system, components for hose valves and case cover of radiator, cooling fluid's standby case, water valve, oil box' cover, pump impeller, shell of gasification machine and accelerator pedal and so on.

2. Electronic and electric Industries: because of extruded POM sheet's lower power consuming, high dielectric strength and insulation resistance and electronic arc resistance, Polyformaldehyde sheet has widely applied in electronic and electric Industries, such as: shell of electronic spanner, shell of electronic scissors, shell of coal drilling machine ,handle of switch, parts also for phone, wireless recorder, video tape recorder, television, computer electrograph, calculagraph, bracket of recorder tape and so on.

3. Agricultural machine: part of manual sprayer, joint and transport part of seeder, parts of milk machine, shell of irrigation and drainage, valve, joint and bush of water and so on.

Extruded Delrin sheet


Extruded POM Sheet Specification

Item name

 POM Sheet

Type:

Extruded

Thickness:

1-200mm

Size:

1000x2000mm;610x1220mm

Density:

1.42 g/cm3

Color:

 White/Black ( color can be customized)

Brand name:

AHD

Material:

100% Virgin material

Sample:

FREE

Acid resistance:

YES

Ketone Resistance:

YES



POM Sheet Physical Datasheet

Item

POM Sheet

Color:

White, Black

Proportion:

1.42g/cm³

Heat resistance (continuous):

115℃

Heat resistance (short-term):

170℃

Melting point:

220℃

Glass transition temperature:

_

Linear thermal expansion coefficient (average 23~100℃):

80×10-6/(m.k)

Flammability(UI94):

HB

Tensile modulus of elasticity:

3300MPa

Compressive stress of normal strain-1%/2%:

19/35

Friction coefficient:

_

Rockwell hardness:

M84

Dielectric strength:

24

Volume resistance:

≥1014Ω×cm

Surface resistance:

≥1013Ω

Relative dielectric constant-100HZ/1MHz:

3.6/3.2

Bonding capacity:

+

Food contact:

+

Acid resistance:

+

Alkali resistance

+

Carbonated water resistance:

+

Aromatic compound resistance:

+

Ketone resistance:

+


About Us:

Anheda, as a manufacturer that has been operating plastic products sincerely for 25 years, now has 2 factories, 11 branches, a wide range of products, and the product quality has been unanimously recognized by customers. We have more than 200 staffs, more than 100 advanced production equipment, 25000 square plant area,production capacity has been greatly improved, we support customers to customize the size and color, and free samples are available for testing. The product range covers PC sheet & rod, ABS sheet & rod, PP sheet & rod, PE sheet & rod, PA6 sheet & rod, PU sheet & rod & tube,POM shee and rod and other engineering plastic products,such as anti-static series, flame retardant series, adding glass fiber series, conductive series, etc.
