0927600 1 1/2'' Normally Closed Brass Solenoid Valve
Product Features:
1. Working Medium: Water, Air, Gas, Light Oil, etc
2. Working Pressure Range: 0.07 to 1.6 MPa
3. Medium Temperature Range: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 8mm, 10mm, 12mm, 20mm, 25mm, 32mm, 40mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed, 2 Way Normally Open
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Model No
(2 Way NC)
|
0927000
|
0927100
|
0927200
|
0927300
|
0927400
|
0927500
|
0927600
|
0927700
|
|
Model No
(2 Way NO)
|
0955105
|
0955205
|
0955305
|
0955405
|
0955505
|
0955605
|
0955705
|
0955805
|
|
Orifice Size
(mm)
|
8
|
10
|
12
|
20
|
25
|
32
|
40
|
50
|
|
Port Size
(Inch)
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1 1/4''
|
1 1/2''
|
2''
|
|
Effective Area (mm²)
|
20
|
40
|
60
|
110
|
190
|
300
|
400
|
500
|
|
Function
|
2 Way Normally Closed: (0927 series)
2 Way Normally Open: (0955 series)
|
|||||||
|
Operation
|
Diaphragm Pilot Operated
|
|||||||
|
Working Pressure
|
0.07 to 1.6 MPa
|
0.1 to 1.6 MPa
|
||||||
|
Working Temperature
|
NBR: -5 to +80℃
EPDM: -5 to +120℃
FKM: -10 to +150℃
|
|||||||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||||||

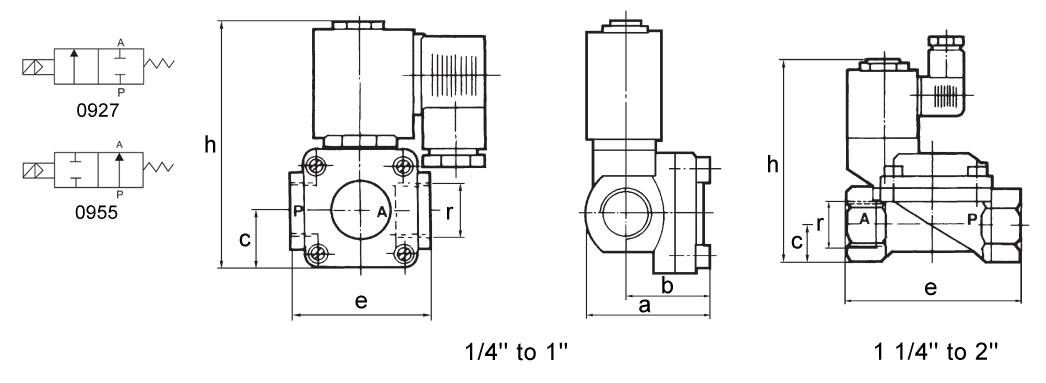

Main Dimension:
|
Model No
|
Orifice Size
(mm)
|
Port Size
(Inch)
|
a
|
b
|
c
|
e
|
h
|
|
0927000
|
8
|
1/4''
|
45
|
31.5
|
22
|
53
|
97
|
|
0955105
|
114
|
||||||
|
0927100
|
10
|
3/8''
|
97
|
||||
|
0955205
|
114
|
||||||
|
0927200
|
12
|
1/2''
|
97
|
||||
|
0955305
|
114
|
||||||
|
0927300
|
20
|
3/4''
|
65
|
44
|
30
|
86
|
113
|
|
0955405
|
130
|
||||||
|
0927400
|
25
|
1''
|
113
|
||||
|
0955505
|
130
|
||||||
|
0927500
|
32
|
1 1/4''
|
95
|
47
|
31
|
131
|
136
|
|
0955605
|
153
|
||||||
|
0927600
|
40
|
1 1/2''
|
136
|
||||
|
0955705
|
153
|
||||||
|
0927700
|
50
|
2''
|
112
|
55
|
39.5
|
163
|
155
|
|
0955805
|
172
|
Our Production:
More Products:
 |
 |
 |
 |
| Brass Solenoid Valve | Stainless Steel Solenoid Valve | Plastic Solenoid Valve | Aluminum Alloy Solenoid Valve |
FAQ:
Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.
Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.
Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
