Wood Lathe Chuck Holder HSK63A-FMB22-100 Face mill holder

We are Pingyuan Best Machine Tools., Co., Ltd., the high-end cnc machine tools manufacturer and supplier from China. Our products line is over 100 models, mainly include: Collet Chuck , Tool Holder Device , Collet , Spanner , Pull Stud and Nuts , Etc. Collet chuck also include many standards and models like: ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series, etc.We could customize the tool holders, milling cutter,boring tool, turning tool,drill and etc according to your drawings. You can find almost all kinds of cutting tools here. HSK series Tool holder include HSK63A FMB HSK collet chuck.

Product Description

Brand Name

BESTMYT

Model Number

HSK63A-FMB22-100 Face Mill Holder

Color

Bright Silver White

Materials

20/40 CrMnTi Alloyed case hardened steel,black-finished and precisely grind.

Clamping Range

1-13mm

Precision

<0.002mm

Surface Roughness

 Ra<0.005mm

Roundness

<0.8μm

Carbonizing depth

0.8mm±0.2mm

Hardness

20CrMnTi , HRC56-58; 40Cr , HRC48-52

Balance

 G2.5 /24000RPM

Cooling

Central Coolant AD and AD/B can be made by request.

Warranty

3 years

Features

High precision and stable performance to ensure high speed machining accuracy

Usage

Mainly used for holding like shell mill cutters with milling machines and machining centers to connect with kinds of face milling.

Applicable cutters

vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter .Mechanical spindle and cutting tools and other accessories.

























1

2

3

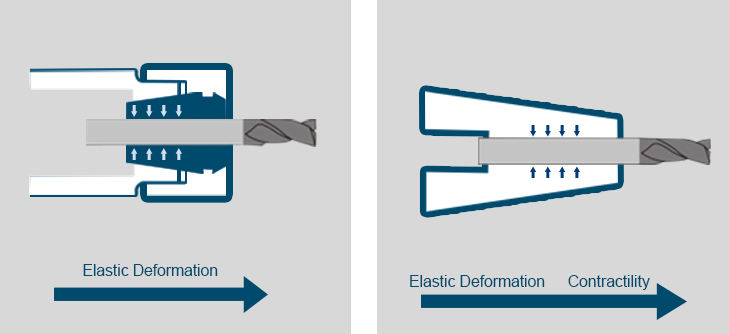

HIGH CLAMPING FORCE

HIGH CLAMPING FORCE

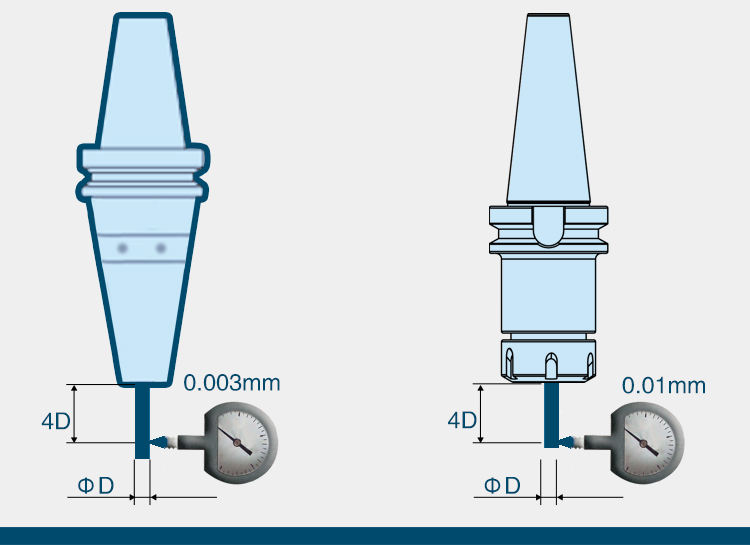

HIGH PRECISION

HIGH PRECISION

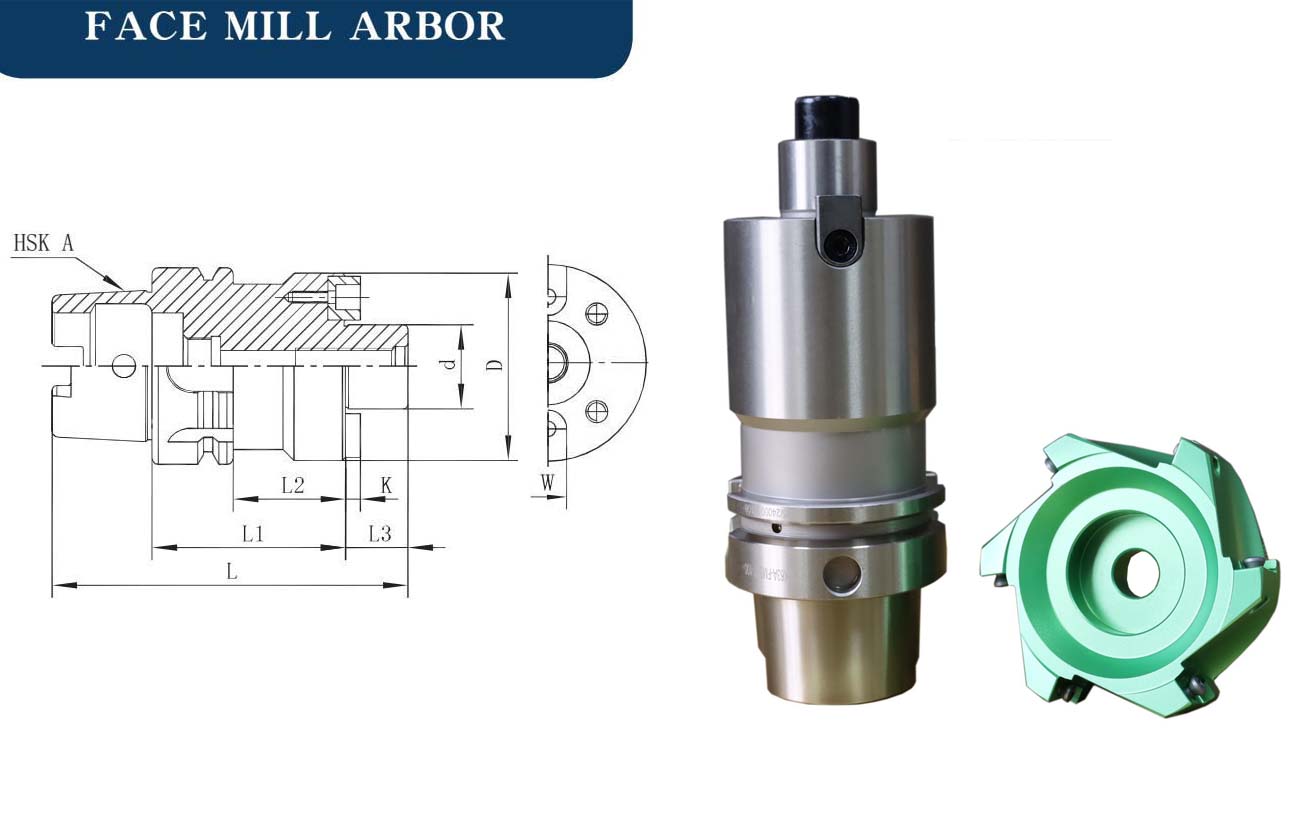

PRODUCT STRUCTURE

PRODUCT STRUCTURE

We can supply other HSK standard tool holder, You can click on the picture to select the product you are interested in:

ER TOOL HOLDERFACE MILLING HOLDERCPU DRILL HOLDERPOWER MILLING HOLDERENDMILL HOLDER

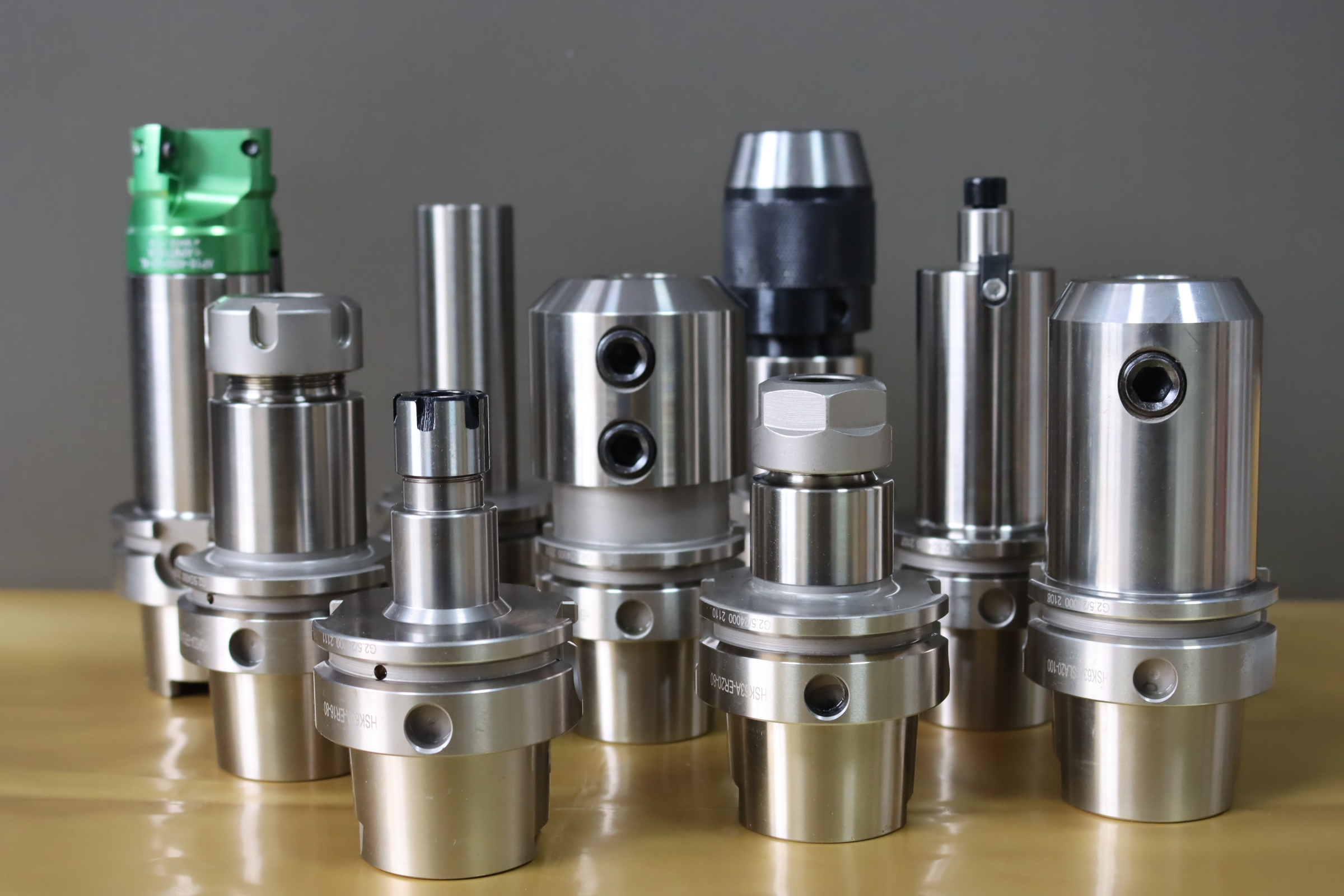

1. HSK63A image (1)

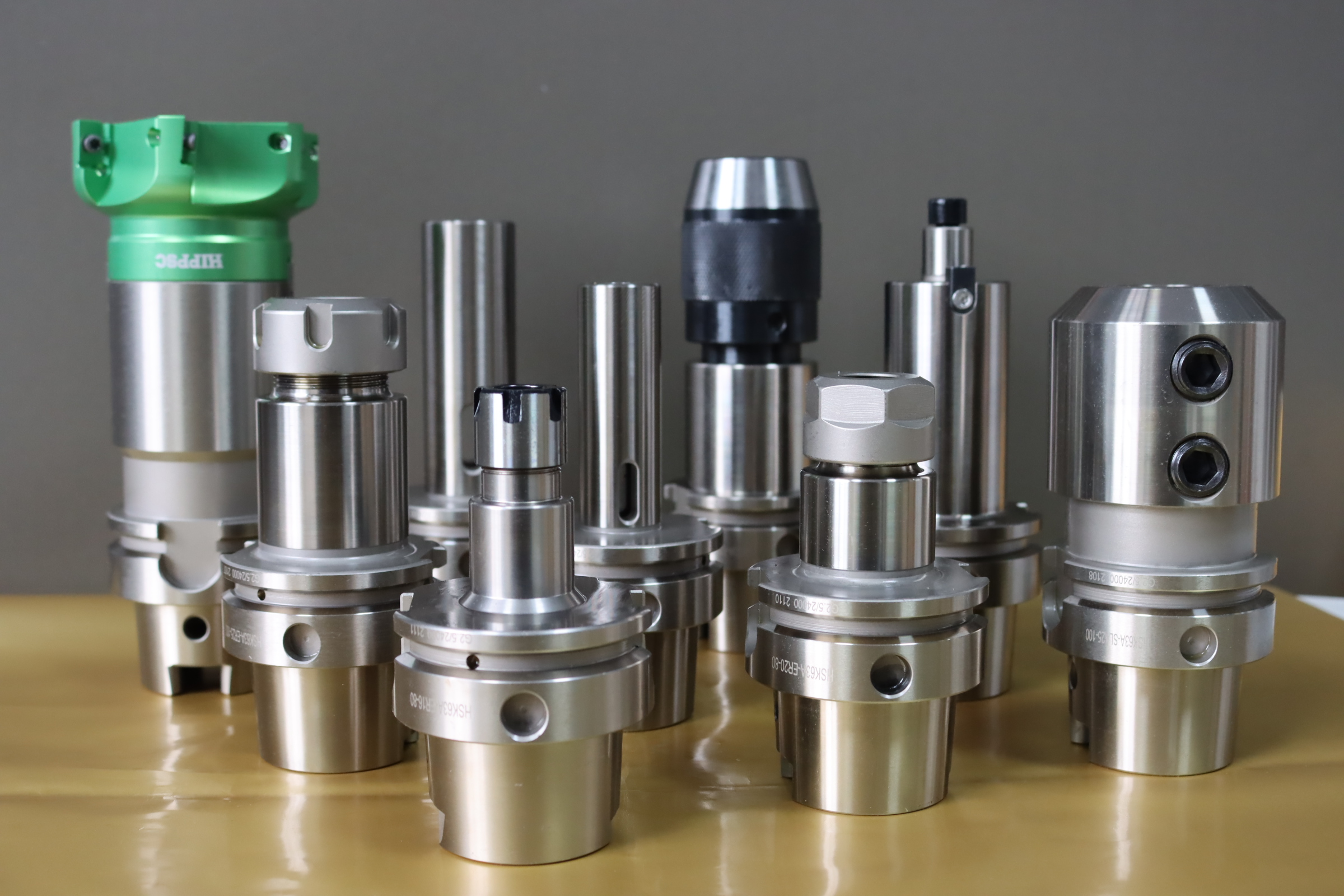

2. HSK63A image (4)
