Coal Gas Solenoid Valve
5 year ago
1/2 Inch LPG Gas Stainless Steel Solenoid Valve
Product Features:
1. Function: 2 Way, Normally Closed
2. Medium: Coal Gas
3. Acting Type: Direct Lifting Diaphragm
4. Operate Pressure: 0 to 0.4MPa
5. Seal Material: NBR for -5∽80℃, Viton for -5∽150℃;
6. Port Size: 1/2'', 3/4'', 1''; G, NPT are available.
7. Orifice Size: 15mm, 20mm, 25mm.
7. Solenoid Coil: 12VDC, 24VDC, 24VAC, 120VAC, 240VAC, 110VAC, 220VAC;

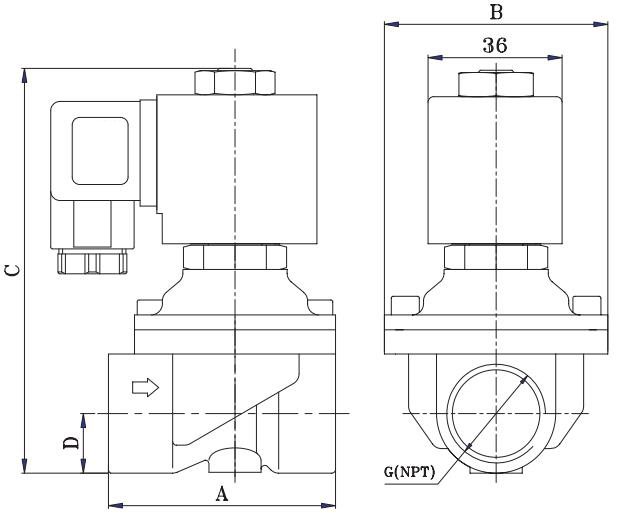

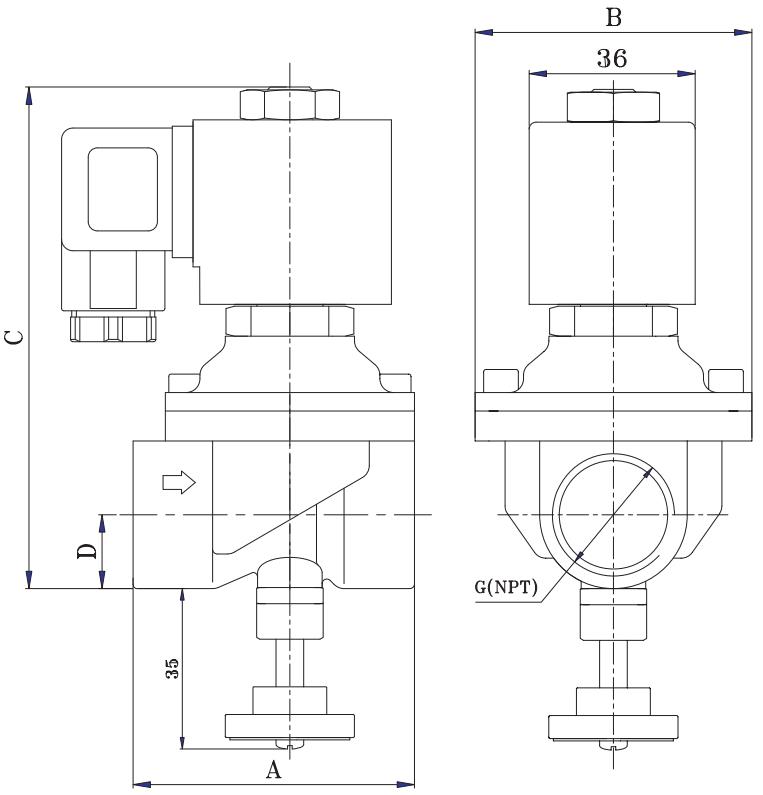

Main Dimension of Gas Solenoid Valve:
|
Model
|
A
|
B
|
C
|
D
|
|
BD6115
|
61
|
54
|
109
|
16
|
|
BD6120
|
61
|
54
|
109
|
16
|
|
BD6125
|
80
|
70
|
117
|
20
|
Technical Data of Gas Solenoid Valve:
|
Model
|
BD61125D (Adjustable)
|
BD6120D (Adjustable)
|
BD6125D (Adjustable)
|
BD6115
|
BD6120
|
BD6125
|
|
Port Size
|
1/2''
|
3/4''
|
1''
|
1/2''
|
3/4''
|
1''
|
|
Orifice Size
|
15mm
|
20mm
|
25mm
|
15mm
|
20mm
|
25mm
|
|
CV
|
4.8
|
8.6
|
12
|
4.8
|
8.6
|
12
|
|
Working Pressure Range
|
0 to 0.4MPa
|
|||||
|
Body Material
|
Brass
|
|||||
|
Seal Material
|
NBR
|
|||||
|
Voltages
|
6VDC, 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Brando Solenoid Valve Production Video:
More Solenoid Valve for you to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
