MP-C-146 ASCO Type Solenoid Coil 24V 110V 220V

This MP-C-146 solenoid coil is popularly used in ASCO solenoid valves. Solenoid Coil Reference Number: 238913-006, 238913-017, 238713-006, 238713-017, 238613-006, 238613-016, 238613-033, 238613-059, 238913-106, 238913-117, 238613-106, 238613-116, 238613-133, 238613-159. Solenoid Coil Standard Voltage: 24VDC, 48VDC, 24VAC, 48VAC, 110VAC, 220VAC. Solenoid Coil Standard Power: 21VA, 18W. Other voltage and power can be customized. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

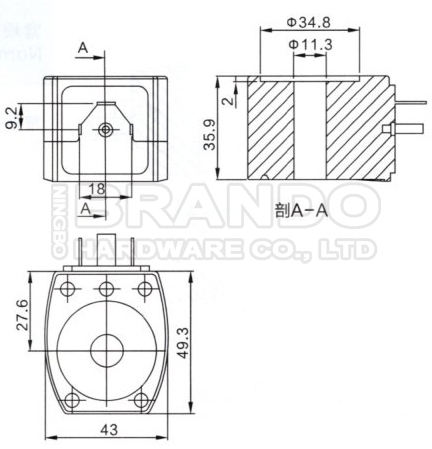

Dimension & Data of Solenoid Valve Coil MP-C-146:

BRANDO Model	BB14439333
Voltage	24VDC, 48VDC, 24VAC, 48VAC, 110VAC, 220VAC
Power	21VA, 18W
Other voltage and power can be customized
Insulation Class	H, F
Connector	DIN43650A

Reference Number of MP-C-146 Solenoid Coil:

Model No	24V DC	48V DC	24V AC	48V AC	115V AC	230V AC
M6-HT	238513-006	238513-017	-	-	-	-
M6-FT	-	-	238213-006	238213-016	238213-033	238213-059
M6-HB	238513-106	238513-117	-	-	-	-
M6-FB	-	-	238213-106	238213-116	238213-133	238213-157
MXX-HT	238913-006	238913-017	-	-	-	-
MXX-FT	238713-006	238713-017	238613-006	238613-016	238613-033	238613-059
MXX-HB	238913-106	238913-117	-	-	-	-
MXX-FB	-	-	238613-106	238613-116	238613-133	238613-159

BRANDO Solenoid Valve Coils Production Video:

More Solenoid Valves for you to choose:


Brass Solenoid Valve	Stainless Steel Solenoid Valve	Plastic Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
