P206, 12J, 13J, 14J, 18J, 19J, 82J, 83J, 84J, 88J, 89J
4 year ago
Solenoid Valve Coil 12J 13J 14J 18J 19J
This solenoid coil is similar with norgren solenoid coil 12J, 13J, 14J, 18J, 19J, 82J, 83J, 84J, 88J, 89J, QM/48/12J/21, QM/48/13J/21, QM/48/14J/21, QM/48/18J/21, QM/48/19J/21, QM/48/82J/21, QM/48/83J/21, QM/48/84J/21, QM/48/88J/21, QM/48/89J/21. Solenoid Coil Standard Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Solenoid Coil Standard Power: 2W, 3W, 6W, 7W, 7.5W, 9W, 2.5VA, 5VA, 7VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

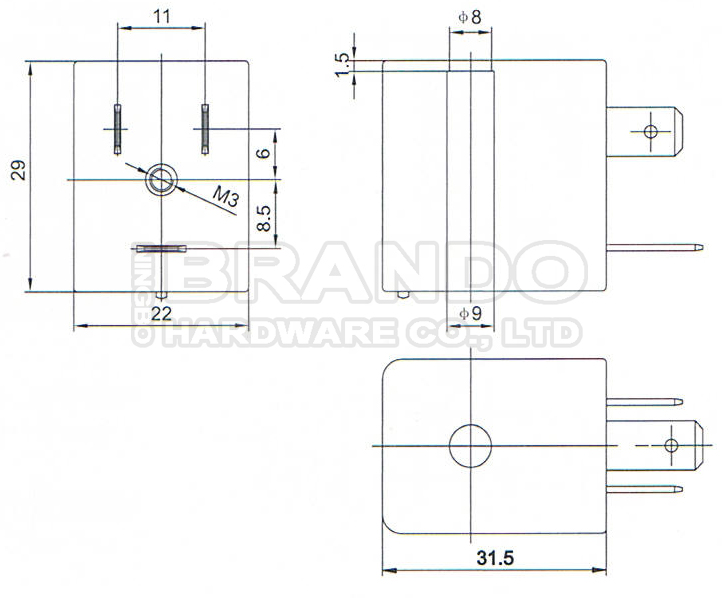

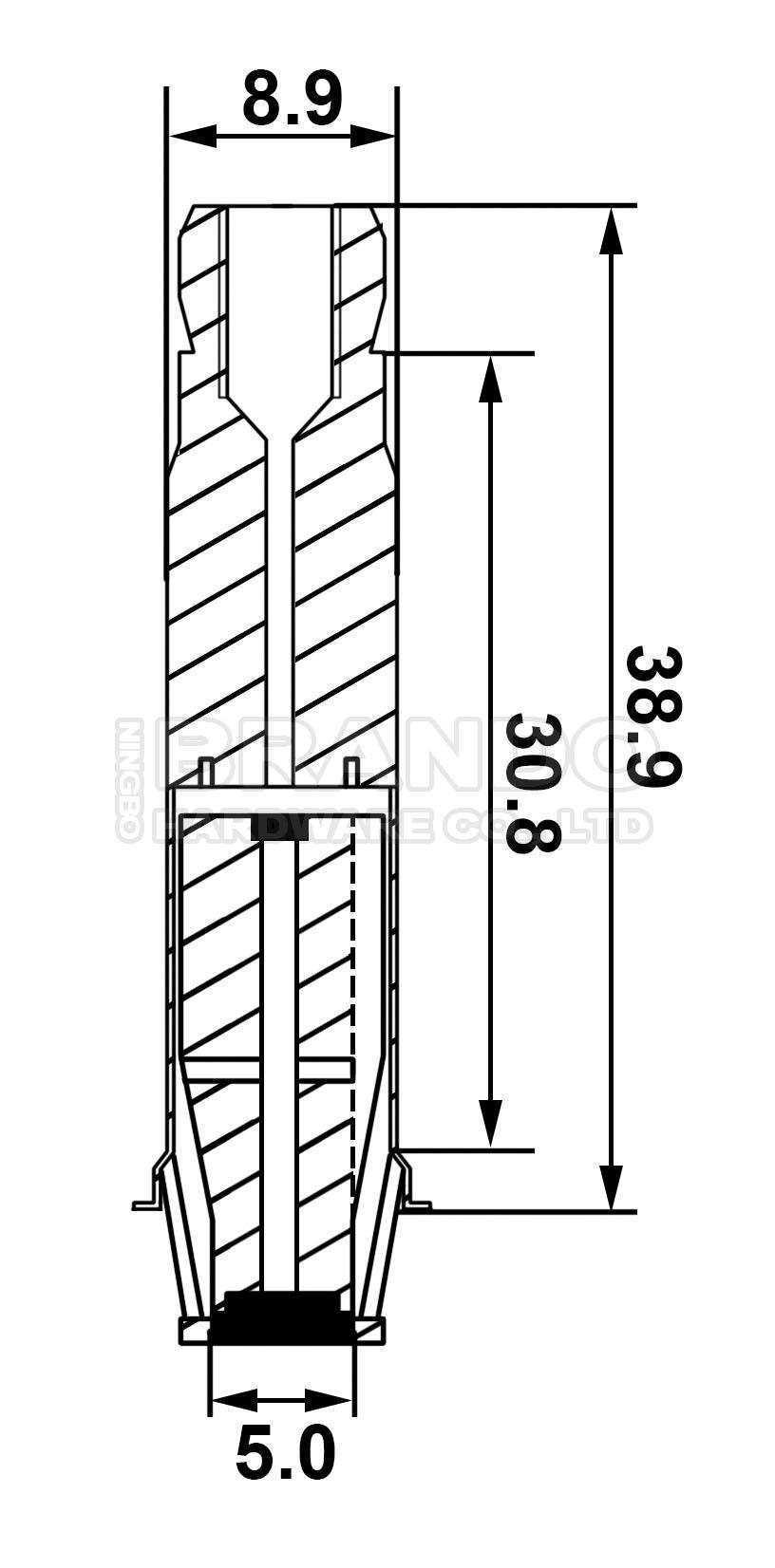

Dimension & Data of Solenoid Valve Coil, Armature:
|

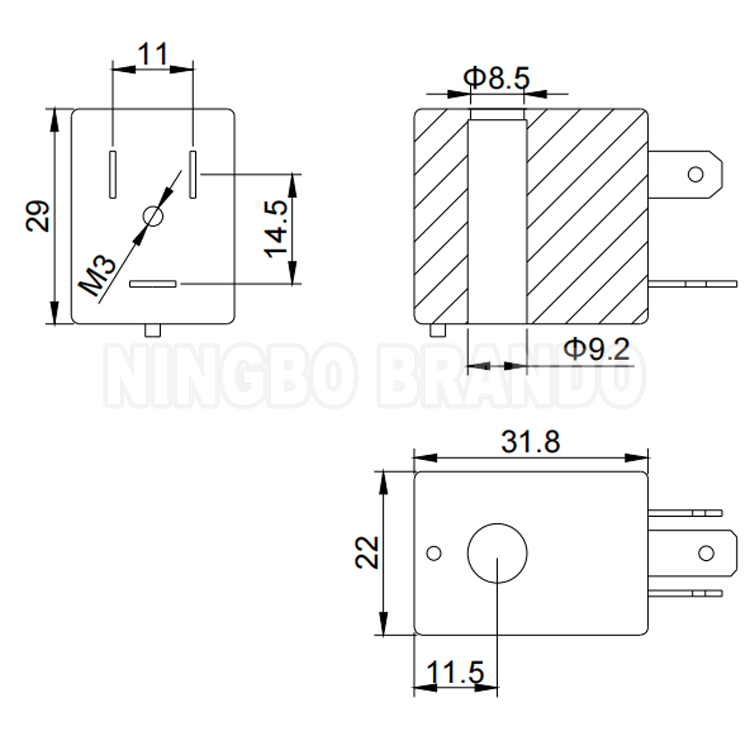

BRANDO Model
|
BB09029048
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Power
|
2W, 3W, 6W, 7W, 7.5W, 9W, 2.5VA, 5VA, 7VA
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650B
|
|
Insulation Class
|
F, H
|
|

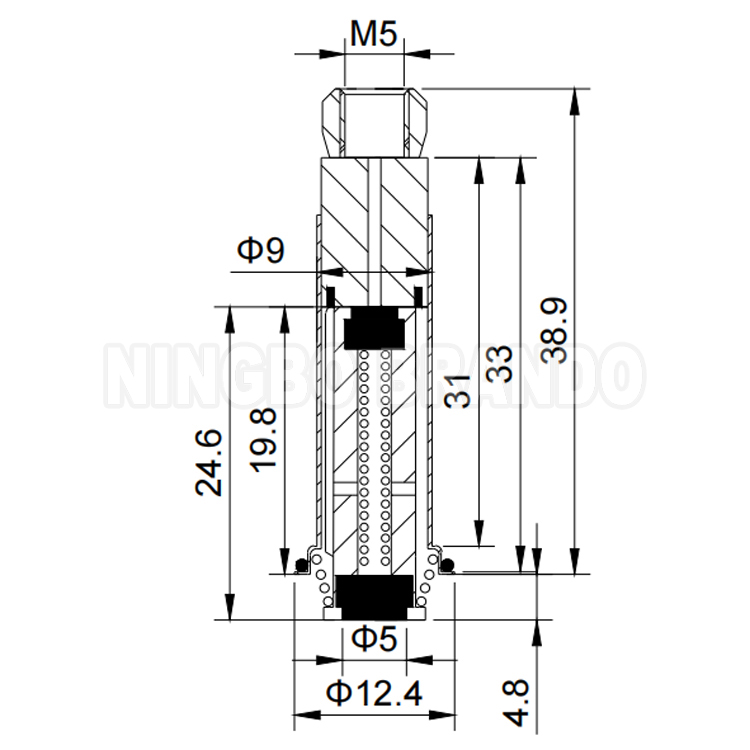

BRANDO Model
|
BAPC309031025
|
|
Function
|
3 Way Normally Closed
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR
|
|
Connection Type
|
Flange With O-ring Groove
|
BRANDO Solenoid Valve Coils Production:
More Solenoid Valves for you to choose:
 |
 |
 |

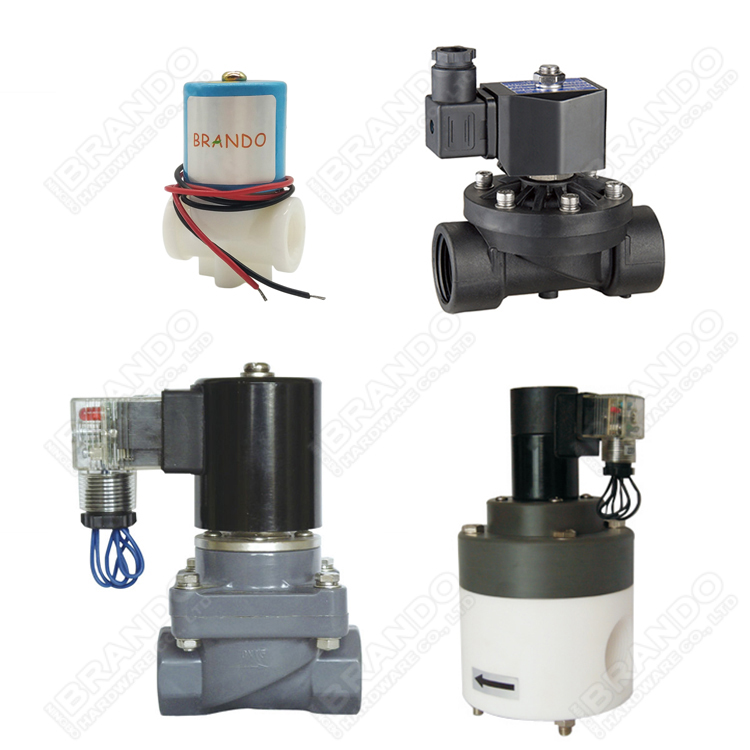

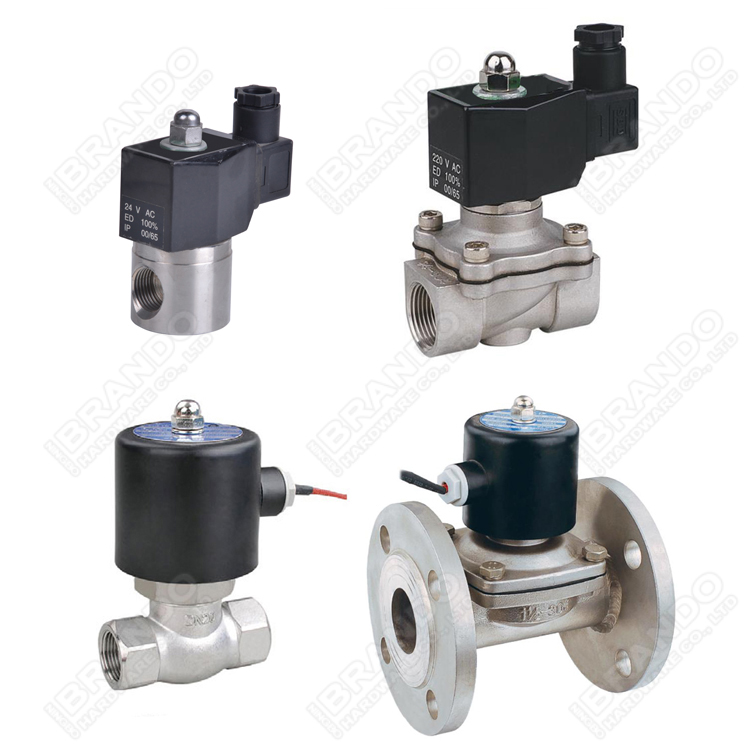

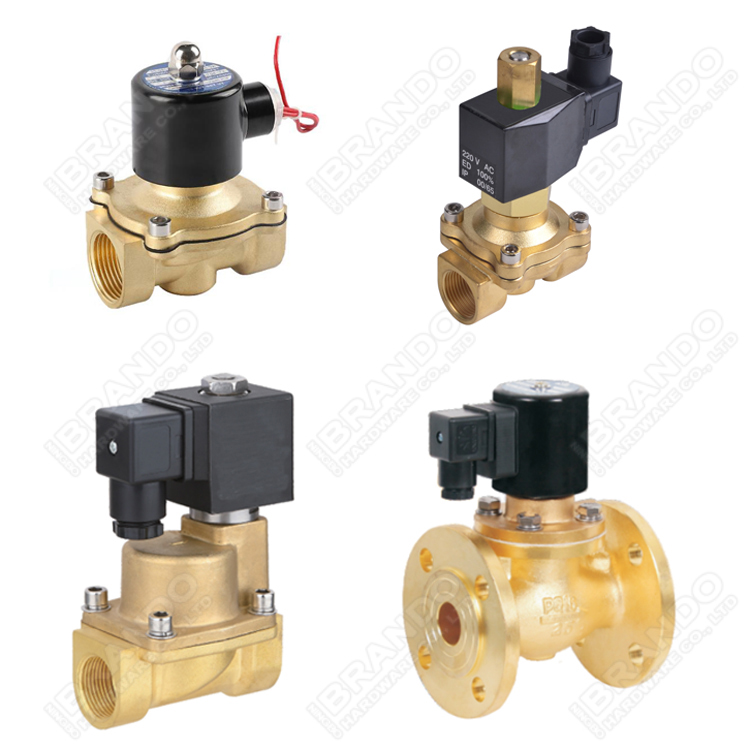

| Brass Solenoid Valve | Stainless Steel Solenoid Valve | Plastic Solenoid Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
