MP-C-011 Armature

4 year ago

33 0 

11 year

Product details

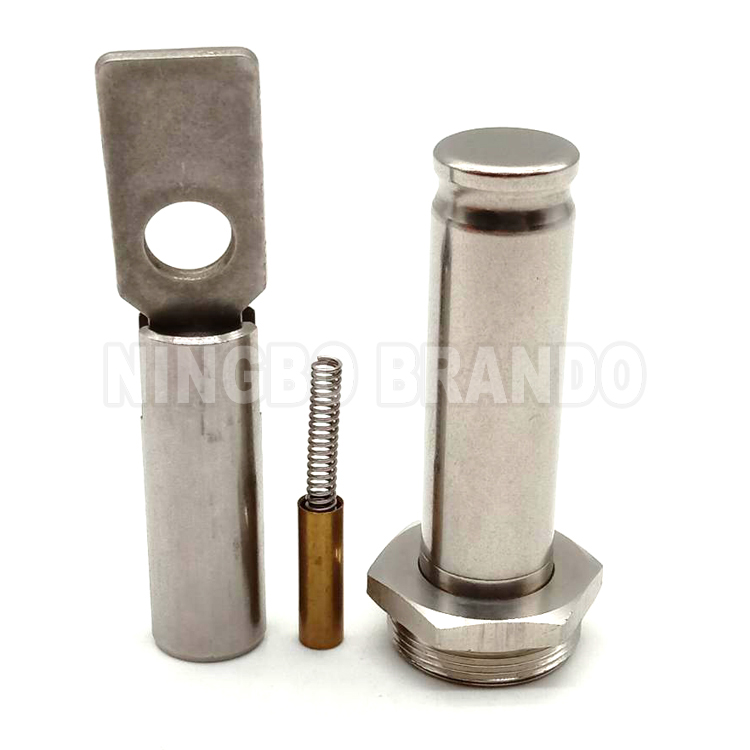

MP-C-011 Henny Penny Solenoid Valve Coil Armature Plunger

This solenoid armature plunger is fitted for ASCO Red-Hat MP-C-011 solenoid coil, which is popularly used for Henny Penny fryer steam solenoid valves (18721, 18724, 17120, 17121, 29515, 29547). The armature assembly is the very important component of solenoid valve. When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core. When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

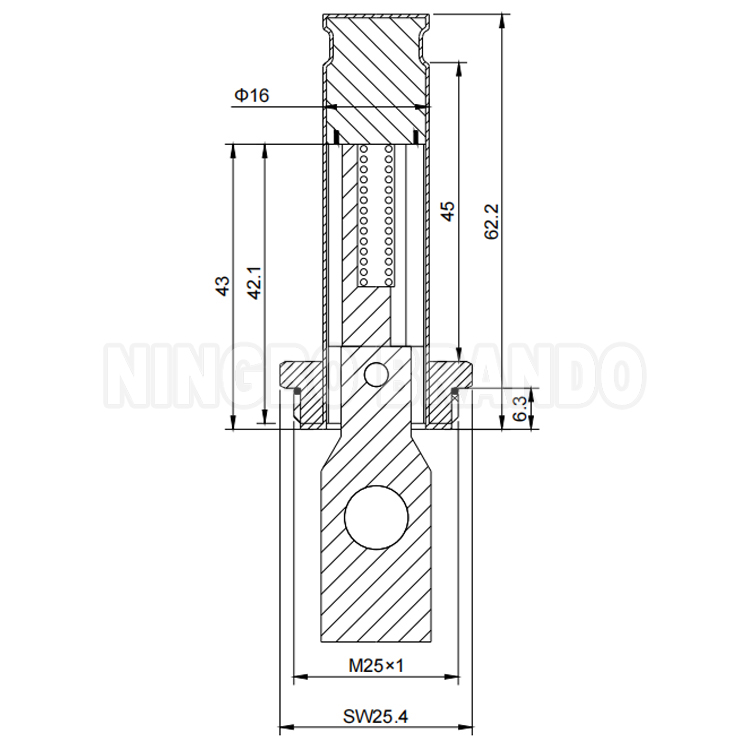

Dimension & Data of MP-C-011 Solenoid Coil, Armature:

dimension

BRANDO Model	MP-C-011
Connector	Flying Leads
Voltage	24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Insulation Class	F, H
Temperature Class	T, B
Fitted Solenoid Valve Model	18724, 18721, 29515, 29547, 17120, 17121
Application	Henny Penny Fryer

BRANDO Model	BAPC216049003
Function	2 Way Normally Closed
Plunger Tube Material	Stainless Steel
Shading Ring Material	Copper
Connection Type	Thread
Fitted Solenoid Coil	MP-C-011
Application	Henny Penny Fryer

BRANDO Solenoid Valve Coils Production:

More Voltages of MP-C-011 Solenoid Coil for you to choose:


24VAC	110VAC, 120VAC	220VAC, 240VAC

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
