best servo motor for robotic arm
6 month ago
Product description
Rated Voltage: DC48-96V
Advantage:Four-in-one device
(integrated servo motor, driver, encoder and reducer)
with stable running.
Low speed, high torque, good dynamic performance
and high control accuracy

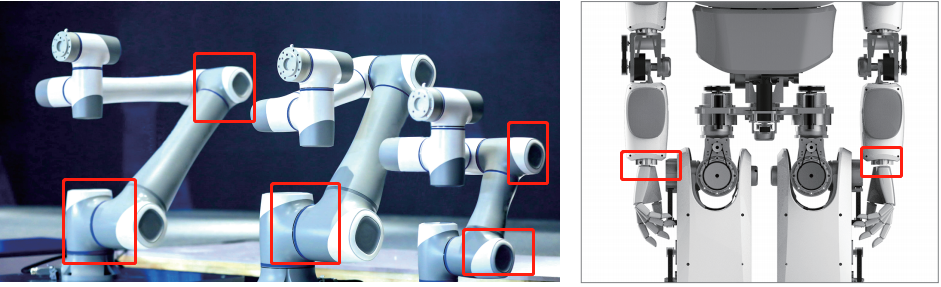

Application:humanoid robots, quadruped robots,
medical, pan-tilt and collaborative robots, etc.
Product Specification
| Parameters | ||
| models | KY96BL04035-15 | KY160BL0405-06 |
| Rated voltage | DC 48V | |
| Rated power | 350W | 530W |
| Rated current | 10.3A | 18.5A |
| Output speed | 258RPM | 100RPM |
| Rated output torque | 13N·m | 50N.m |
| Instantaneous maximum current | 20A | 37A |
| Peak output torque | 30N.m | 160N·m |
| Number of poles | 30 | 32 |
| Feedback element | Absolute encoder | |
| Communication method | RS232/CAN2.0/CANopen | |
| Reduction ratio | 1:6 | |
| Working mode | Speed mode/torque mode/absolute mode/relative mode | |
| Weight | 0.85kg | 2.95kg |

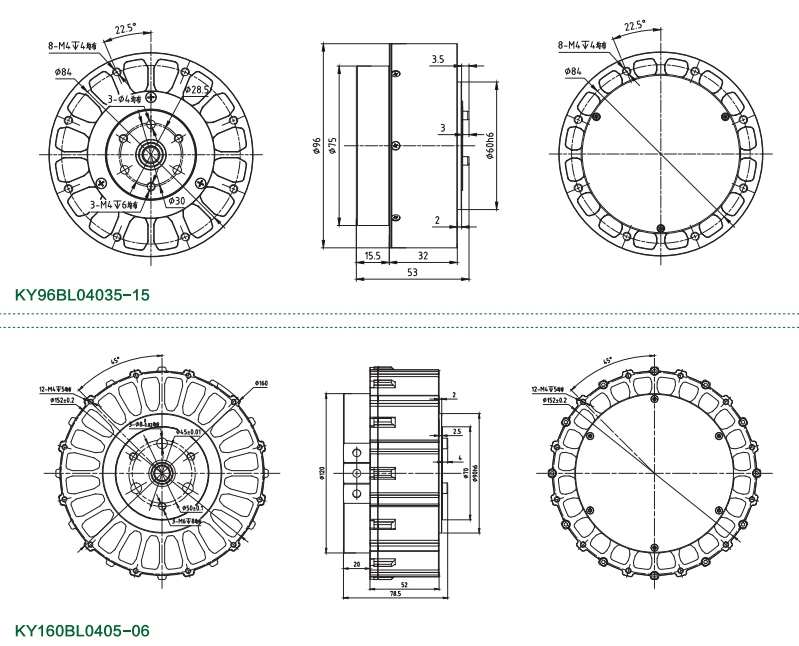

Product Drawing
Our factory supports product customization， if you have any question, welcome to contact
Sophia +8613255691051
