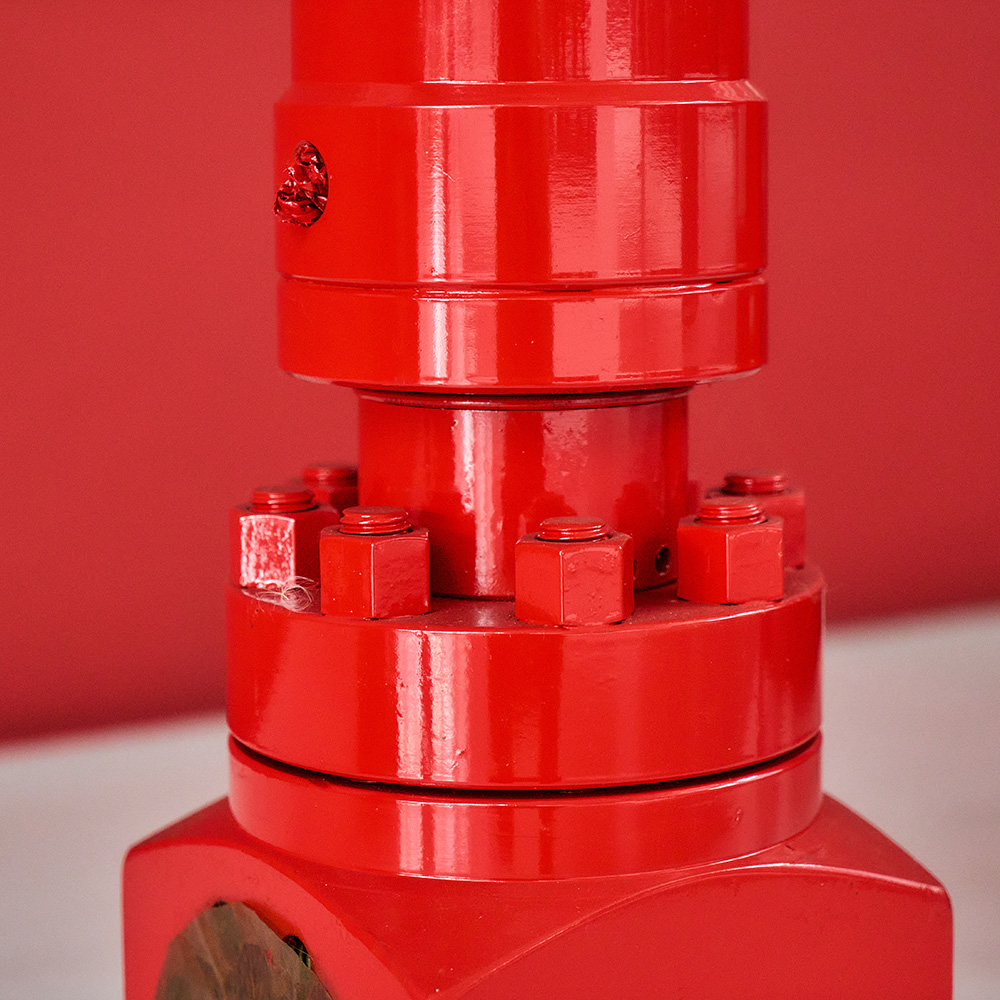

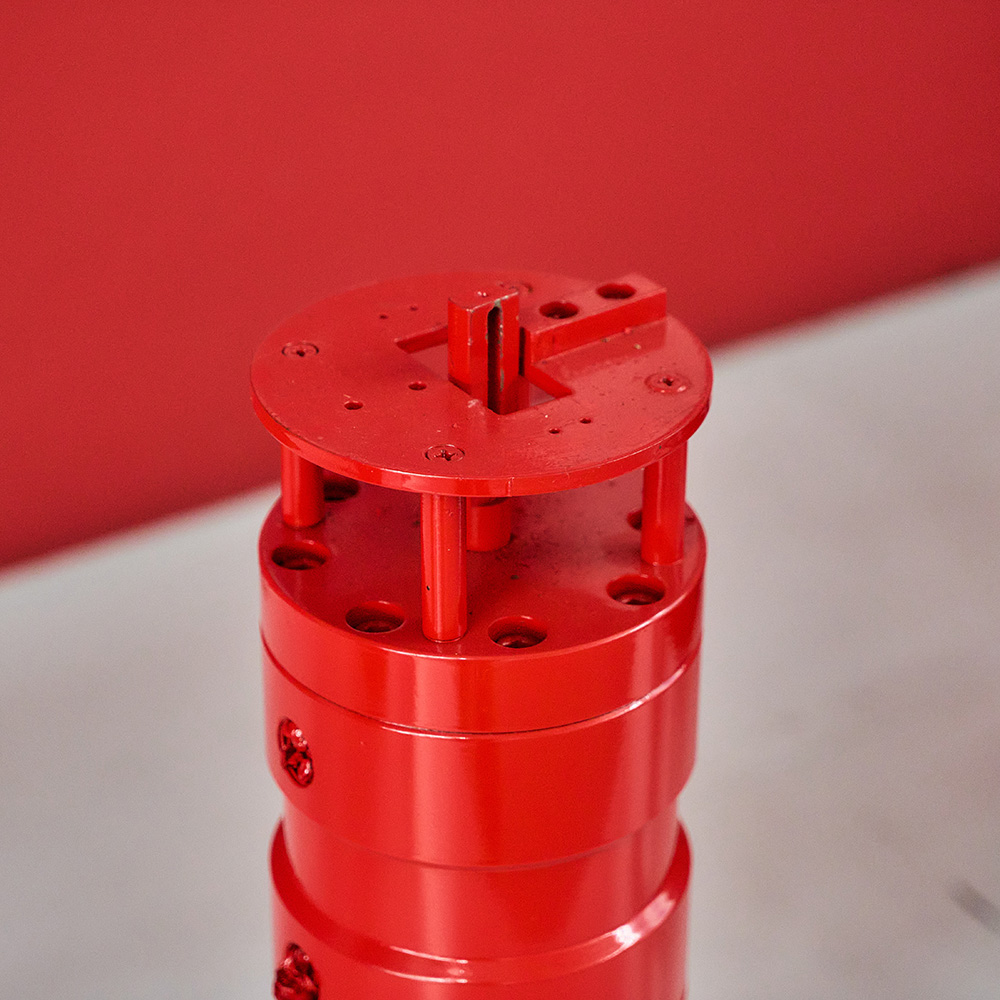

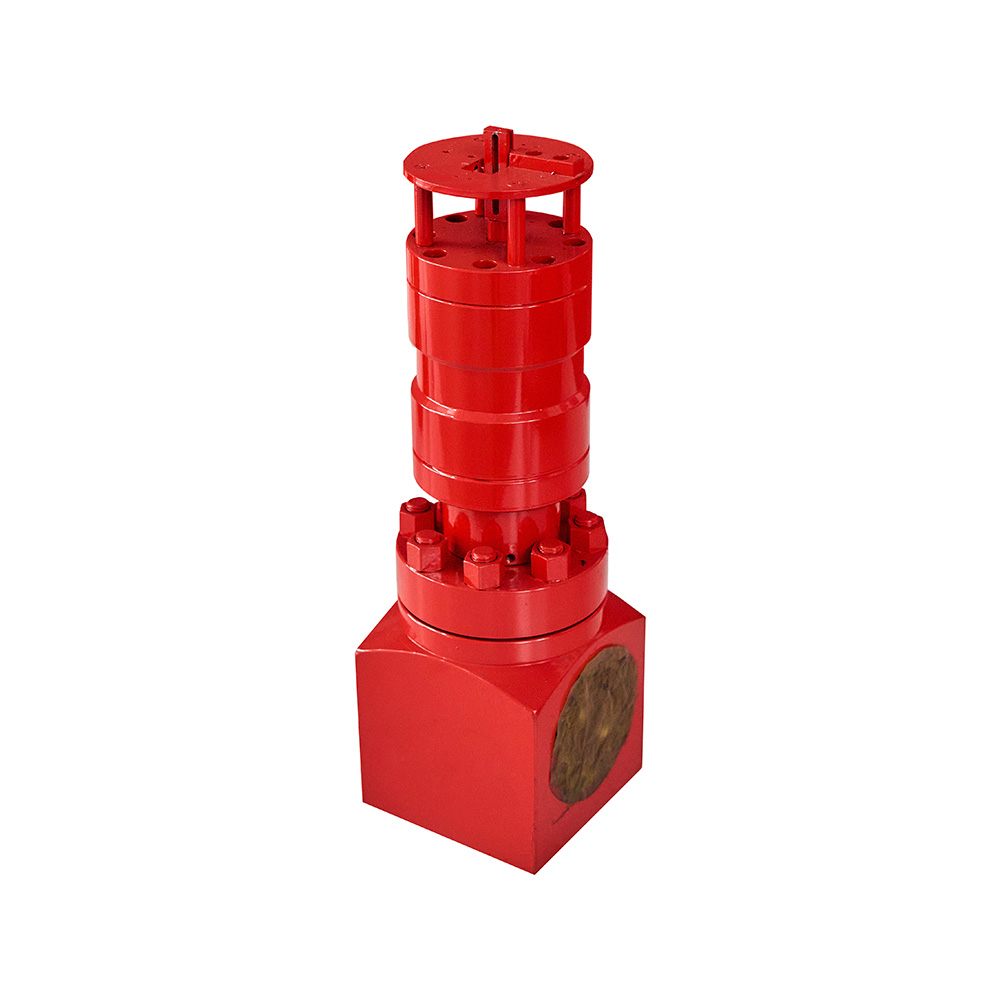

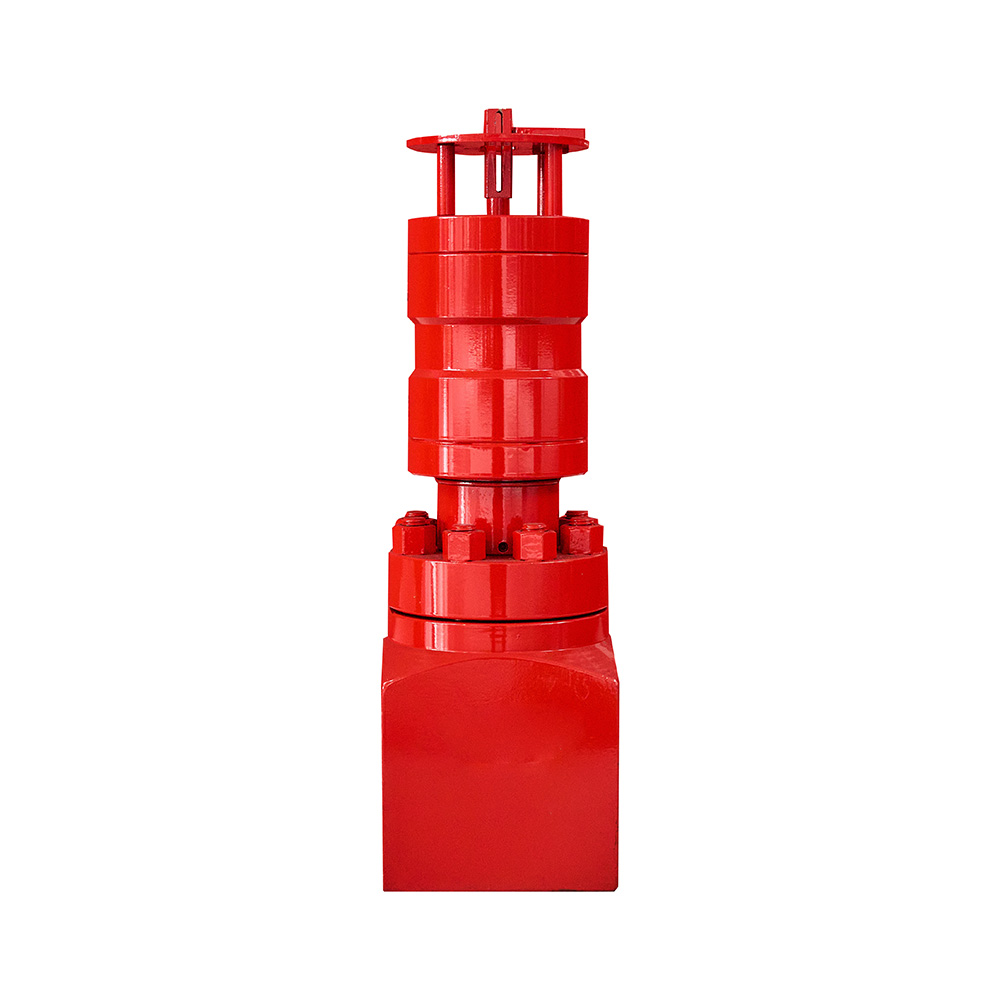

Hydraulic throttle valve
4 month ago
Working principle
The hydraulic throttle valve is mainly composed of a valve body, a valve core, a valve seat, a hydraulic drive device, etc. The hydraulic drive device drives the valve core to move in the valve body through the pressure change of the hydraulic oil, changes the flow area between the valve core and the valve seat, and then controls the flow and pressure of the fluid.
When the hydraulic oil enters one chamber of the drive device, it pushes the piston or plunger to move, drives the valve core to move in one direction, and reduces the flow area; when the hydraulic oil enters another chamber, the valve core moves in the opposite direction, and the flow area increases.
| Product Name: | Hydraulic throttle valve |
| Specification model: | 3 1/16 |
| Implementation standard: | API 6A |
| Rated working pressure: | 15000psi |
| Product specification level: | PSL1~PSL3G |
| Product performance level: | PR1~PR2 |
| Temperature level: | PU, LU |
| Material level: | AA~FF |
| Product color: | Red |
Application field
Petroleum drilling engineering: During the drilling process, it is necessary to accurately control the flow and pressure of the drilling mud to balance the formation pressure, carry cuttings, and cool the drill bit. Hydraulic throttle valves can adjust the mud flow and pressure in real time according to factors such as drilling depth and formation conditions to ensure safe and efficient drilling.
Oil and gas field exploitation: In the production process of oil and gas fields, hydraulic throttle valves can be used to control the production and wellhead pressure of oil and gas. By adjusting the opening of the throttle valve, the oil and gas wells can be operated in the best production state, improving the oil and gas recovery rate and production efficiency.
Metallurgical industry: In the metallurgical process, such as steelmaking and ironmaking, the flow and pressure of fluids such as cooling water and coal gas need to be precisely controlled. Hydraulic throttle valves can meet these requirements and ensure the normal operation of metallurgical equipment and the stability of production processes.
As a petroleum machinery manufacturer, our company also produces Blowout Preventer, Manifold, Cellar Connection, Valve, Pipe Fitting and Control Apparatus, etc.
If you need, please contact us.
