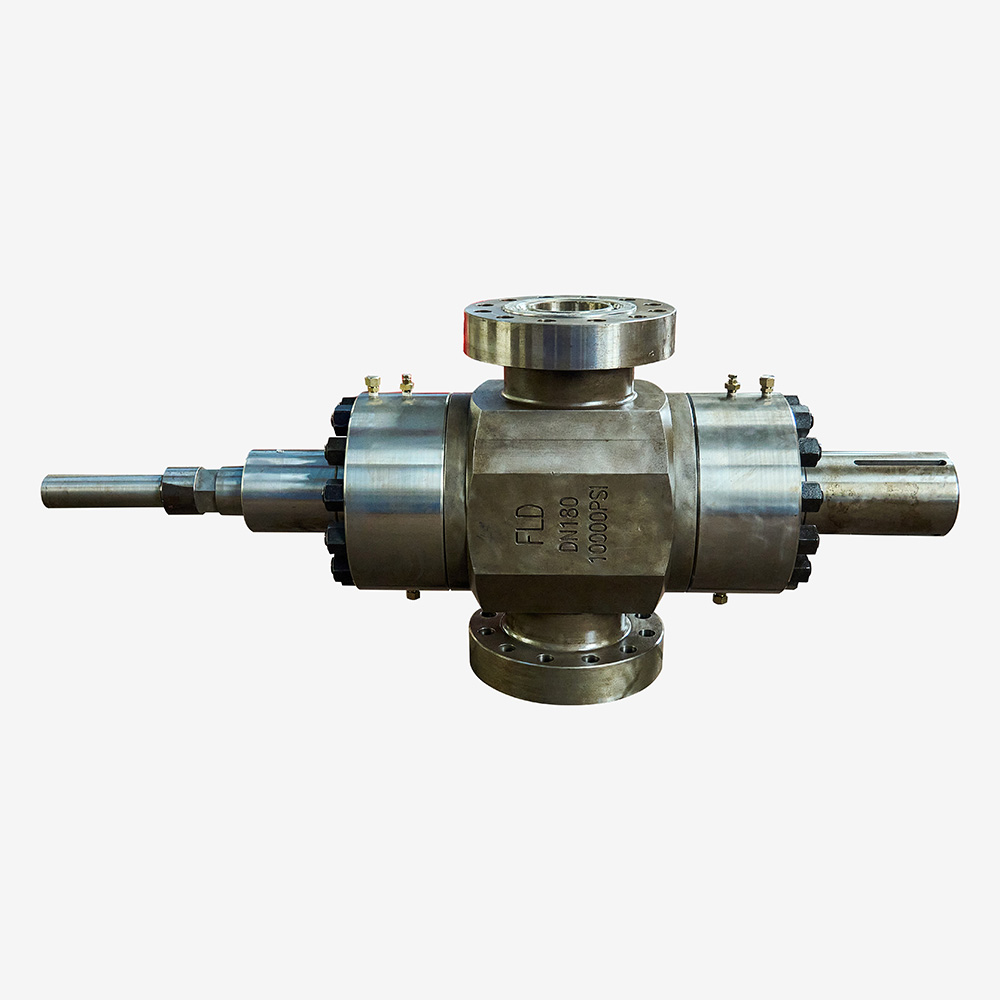

2 9-16 10000PSIManual plate valve
4 month ago
Structural design: adopts a new floating sealing structure, the gate has a guide strip to provide precise guidance, and the sealing surface is sprayed with hard alloy, which is erosion-resistant. The gate opens and closes in both directions, the seal is reliable, and the opening and closing are flexible. The valve stem adopts compliant packing, multiple seals, and low friction.
Valve body material: Common ones are cast iron, ductile iron, cast steel, stainless steel 304, 316, 316L, etc., which can be selected according to different use environments and media requirements. For example, in sewage systems, cast iron or ductile iron materials may be selected; in industries such as chemical industry and food that have high requirements for corrosion resistance, stainless steel materials are mostly used.
If you need, please contact us.
| Product name | Manual flat valve |
| Specification model | 7 1/16 |
| Implementation standard | API 6A |
| Rated working pressure | 15000psi |
| Product specification level | PSL1~PSL3G |
| Product performance level | PR1~PR2 |
| Temperature level | PU, LU |
| Material level | AA~FF |
| Product color | Silver |
Good sealing: After rigorous sealing performance testing, good sealing materials are used, the friction between the sealing surfaces is small, which can effectively prevent medium leakage, and wearing parts can be replaced without affecting pipeline operation.
Small flow resistance: The valve body channel is straight-through. When fully open, it is connected with the gate guide hole and is similar to a straight pipe. The flow resistance is very small and will not cause obvious obstruction to the flow of the medium, which is conducive to improving the operating efficiency of the system.

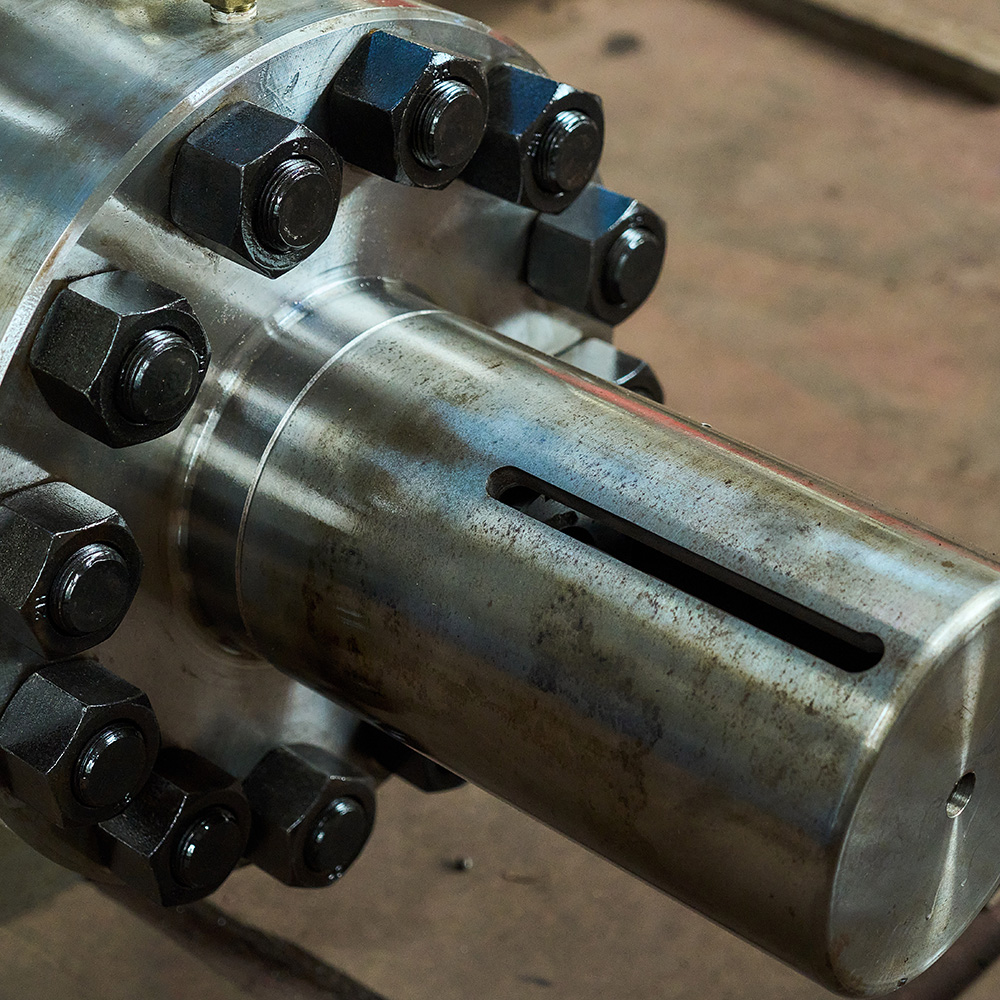

Easy operation: The valve stem is tightened by the tightening of the gland packing, the rotation of the handle is not stiff, and the operation is comfortable. It can operate normally even without power supply.
Strong corrosion resistance and wear resistance: The material selection is appropriate, with strong anti-corrosion, wear resistance, and erosion resistance, suitable for various harsh working environments, such as petroleum, chemical industry, sewage treatment and other fields.
Nominal diameter: Usually there are a variety of specifications such as DN15-DN1000 to choose from to meet the flow requirements of different pipeline systems.
Nominal pressure: Generally, it can withstand a pressure of 1.6MPa-16MPa. The pressure level of some high-pressure manual flat plate valves can be higher, which can adapt to pipeline systems with different pressure levels.
