A ball screw is an actuator used to convert rotational motion into linear motion, or vice versa. It is known for its high transmission efficiency and precise positioning capabilities. Ball screws typically use two common circulation methods: external circulation and internal circulation. In the external circulation method, the return plate type and the return tube type are employed, whereas the internal circulation method utilizes the end cap type (e.g., MEF1210), floating type, and linear return type. The internal circulation is ideal for ballscrews with smaller diameters and lead/pitch, while the external circulation is suited for larger diameters and lead/pitch.

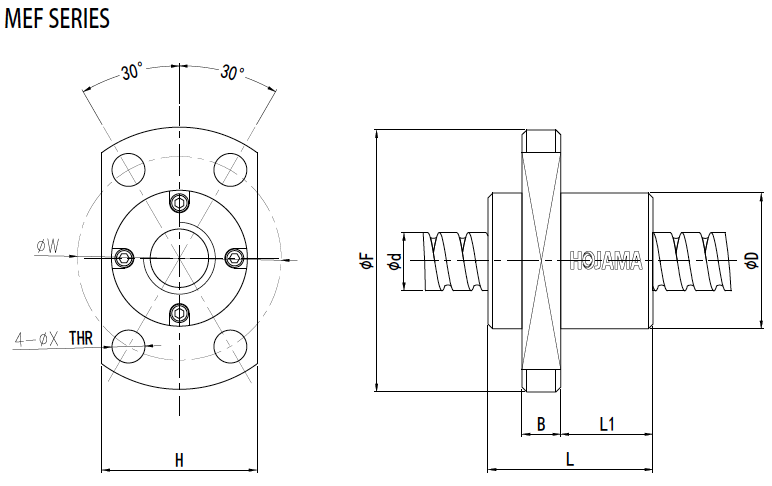

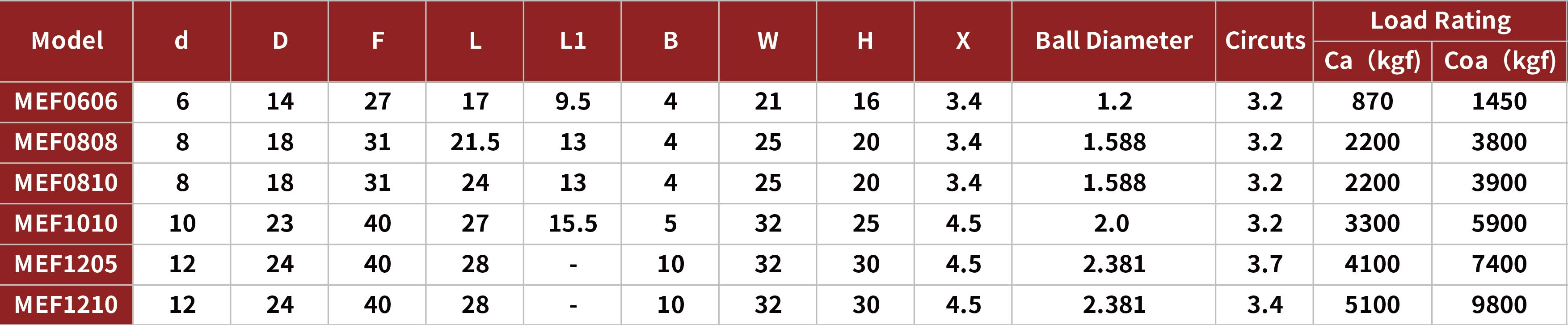

MEF1210: 12mm diameter ball screw

1) Standard nut

2) End-cap return

3) Round nut with a flange

4) Diameter 12mm Lead 10mm

5) The shaft end can designed according to the requirement

Various advantages of miniature ball screws:

1. High accuracy

The HOJAMA ballscrew is available in two accuracy grades: C3 and C5.

2. Smooth movement
The mini ball screw, designed with low friction, ensures smooth movement.

3. Low operation noise
The motion of the ball screw relies on steel balls, which significantly reduces noise.

4. Wide use
The micro ball screw can be used for CNC, automation, robotics, medical equipment, and other creative, manufacturing, and industrial needs.

Note:
1. The prices of the miniature ball screw listed on the page are for reference only; please consult HOJAMA for the actual product pricing.
2. Lead time: 15-25 days
3. Samples can be provided.
