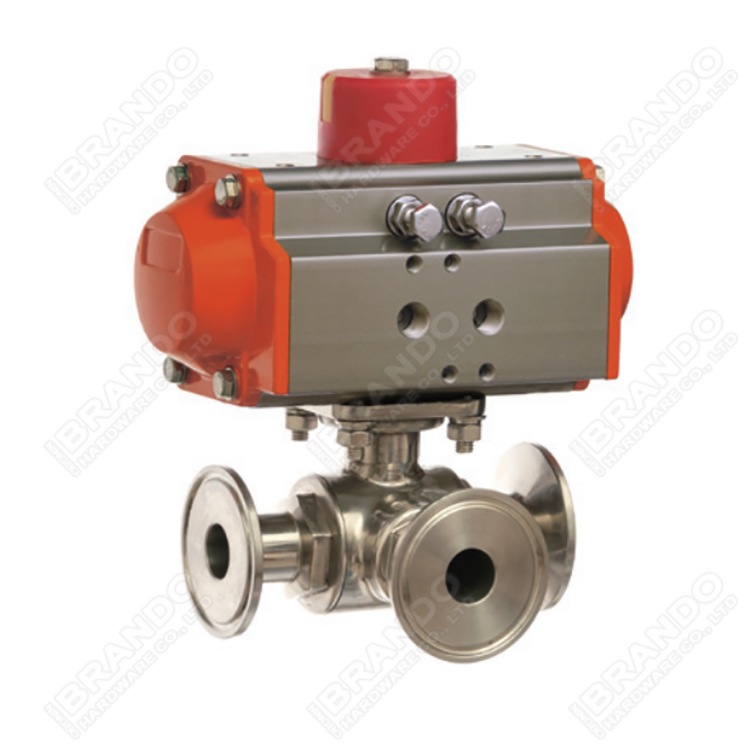

3 Way Tri Clamp Pneumatic Ball Valve

3 Way Pneumatic Actuator Tri Clamp Ball Valve

Ball valves can be combined with a pneumatic actuator (pneumatic ball valves) or an electric actuator (electric ball valves) for automation and/or for controlling remotely. Depending on the application, automating with a pneumatic actuator vs an electric one may be more advantageous, or vice-versa.

Pneumatic actuators control ball valves by the conversion of compressed air energy to mechanical motion. A rotary mechanical motion is required in a ball valve for a 90 degrees turn. Pneumatic actuator ball valves can be single-acting or double-acting. A single-acting pneumatic actuator uses a single compressed air input to turn the valve and a spring to return the valve to the normal position. A double-acting pneumatic actuator has two compressed air inputs to turn the valve and return the valve to the original position.

Technical Data of Pneumatic Actuated Ball Valve:

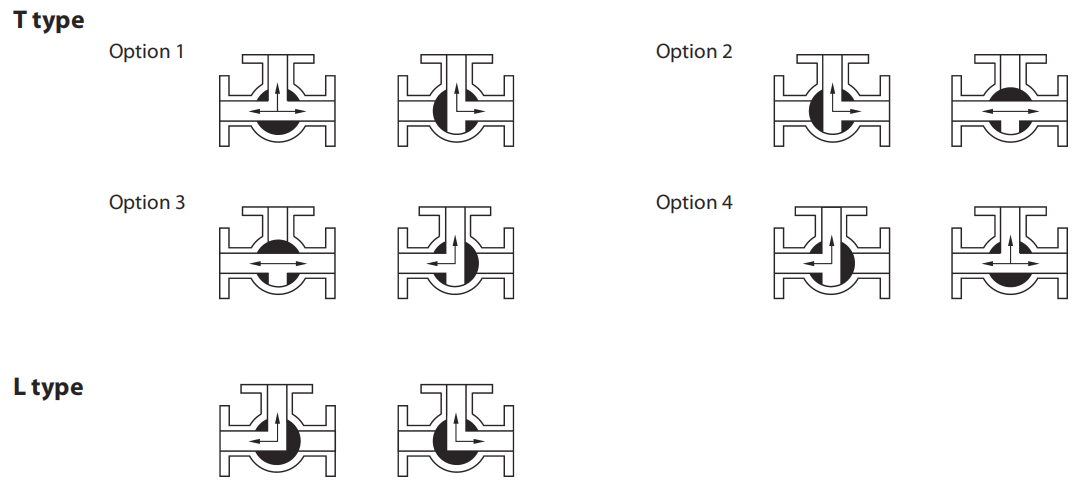

Flow Direction of 3 Way Pneumatic Ball Valve:

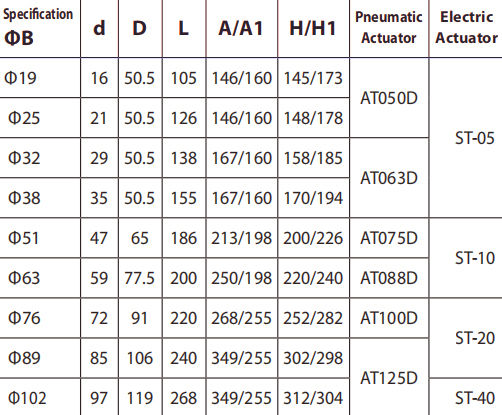

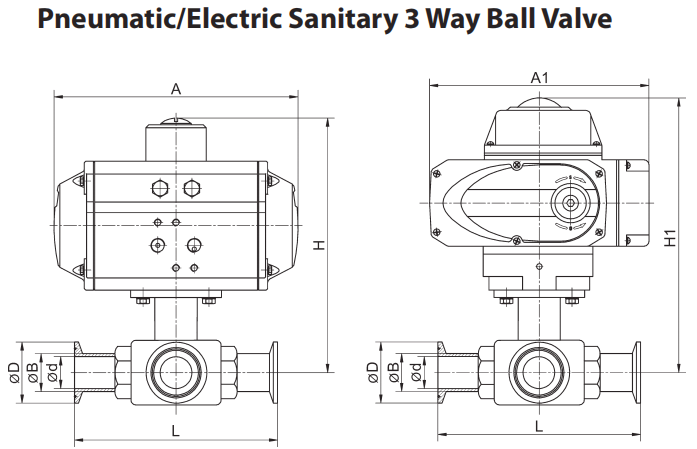

Overall Dimension of Pneumatic Operated Ball Valve:

More Pneumatic Actuator Valve for you to choose:

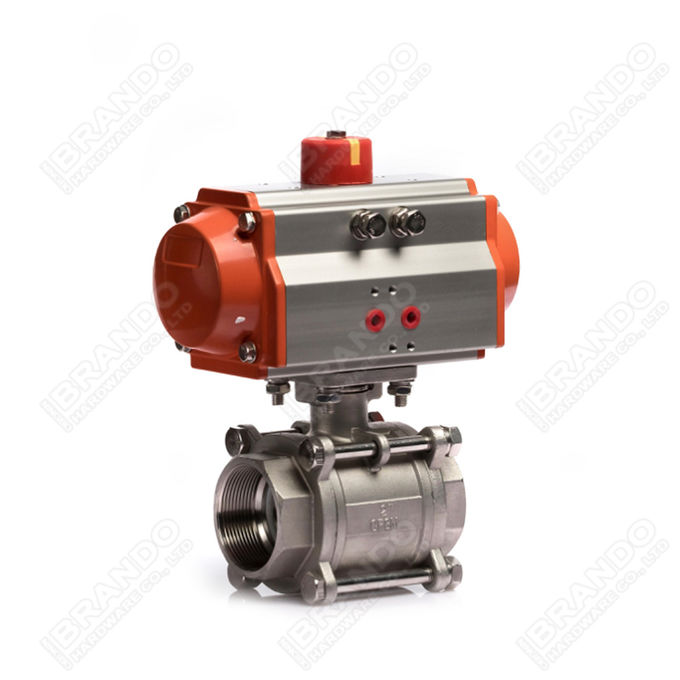

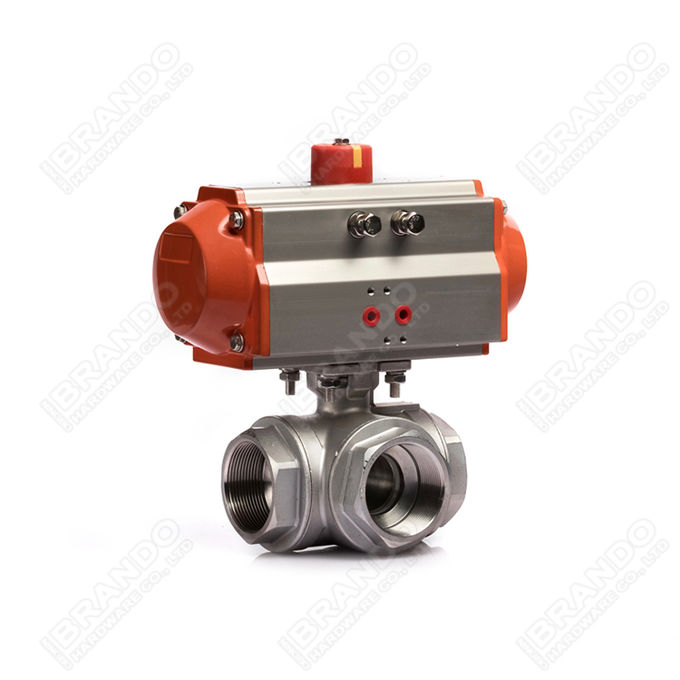

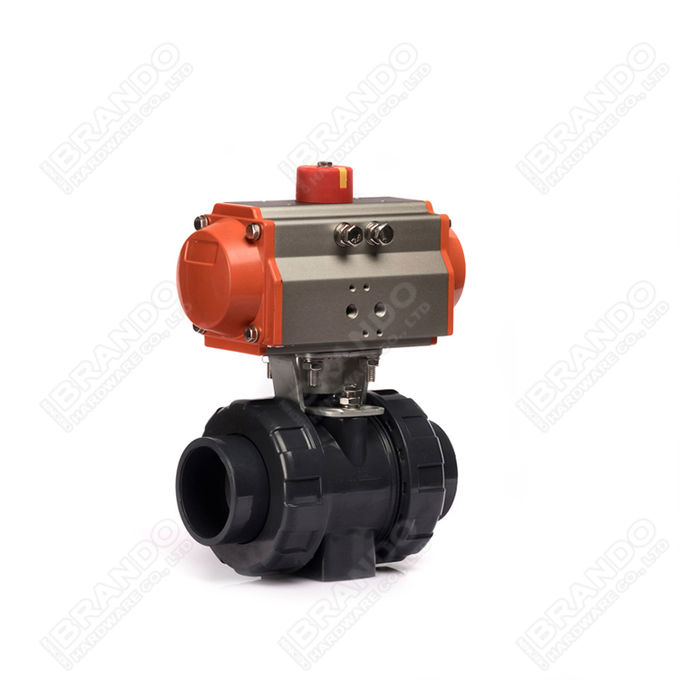

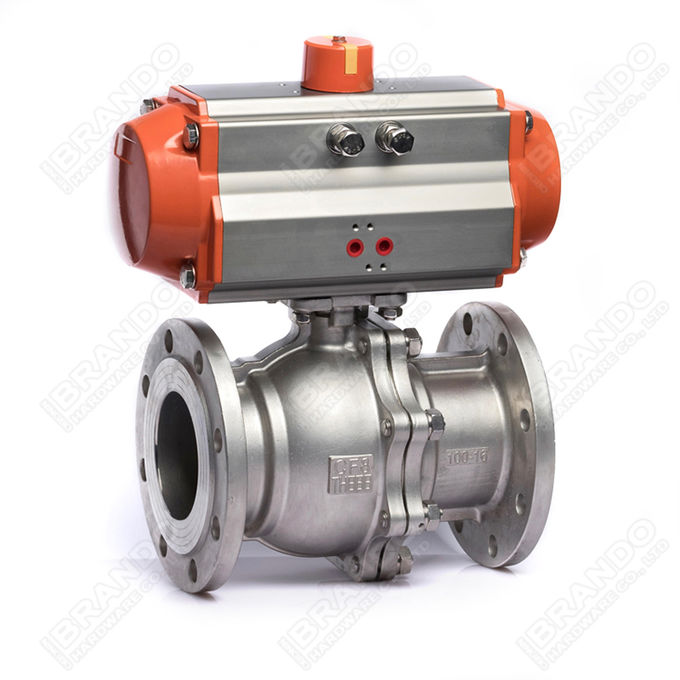

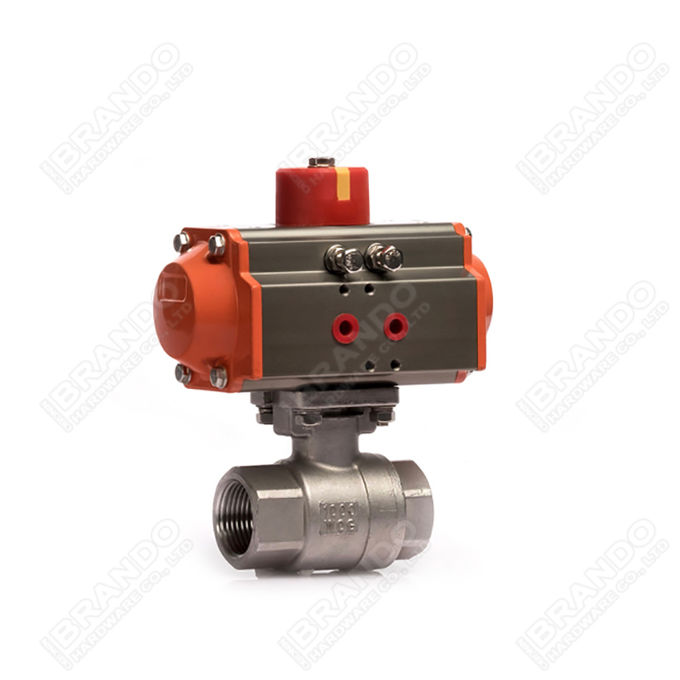

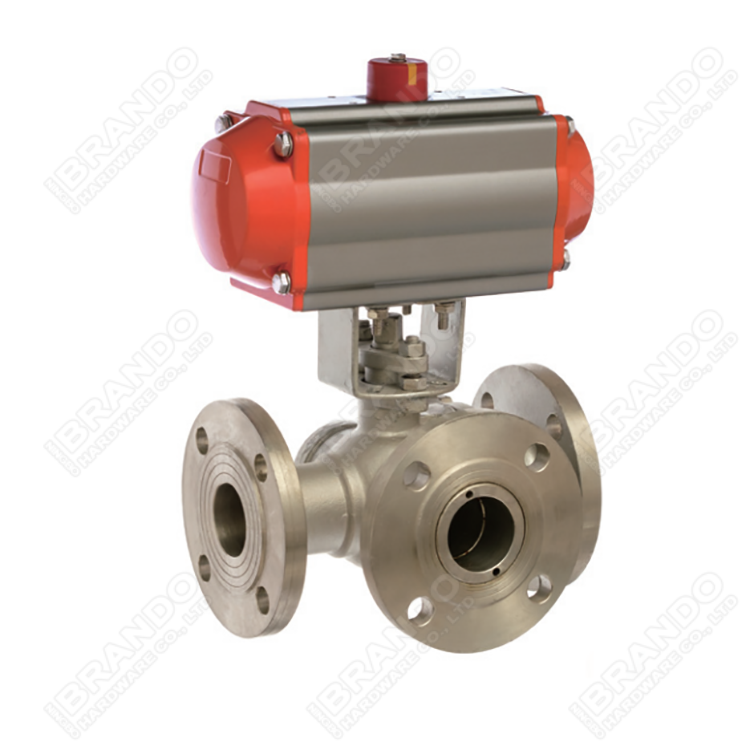

Pneumatic Ball Valve

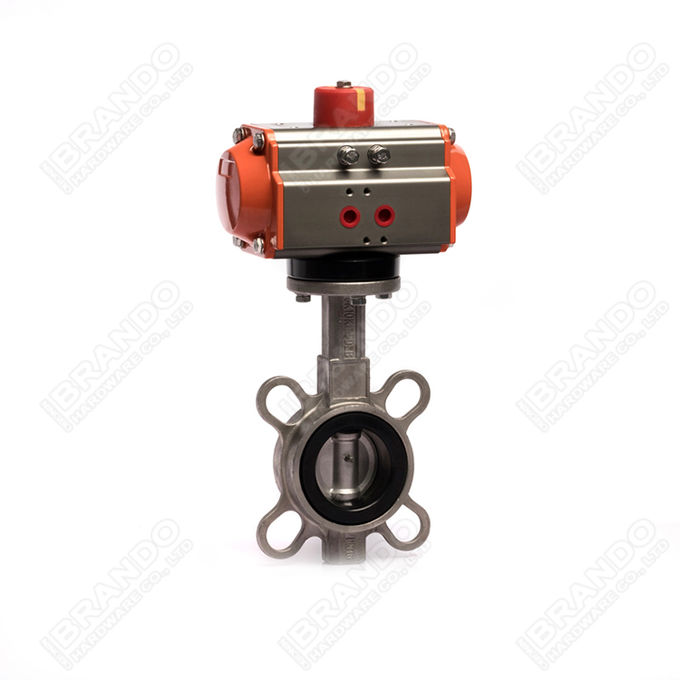

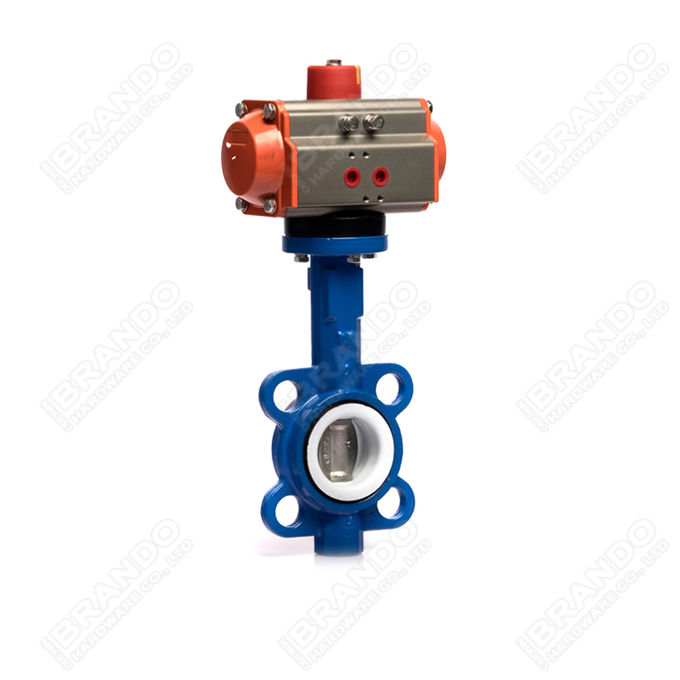

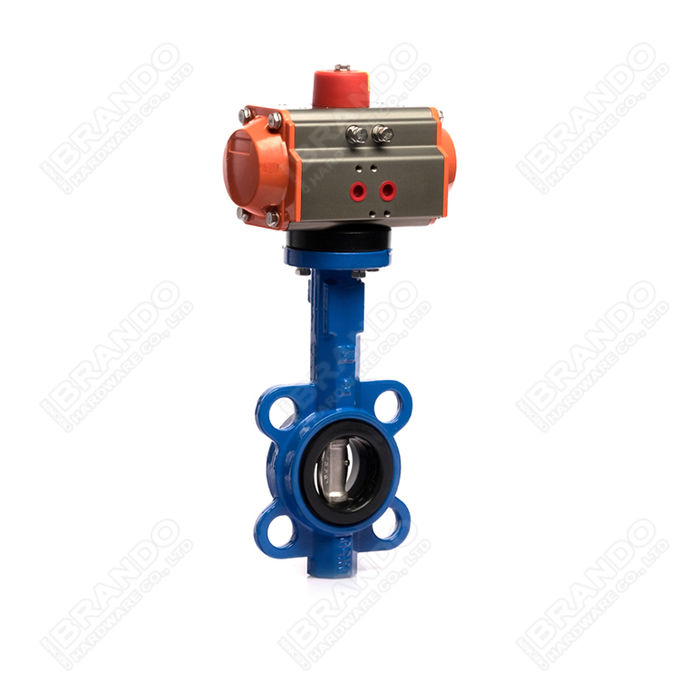

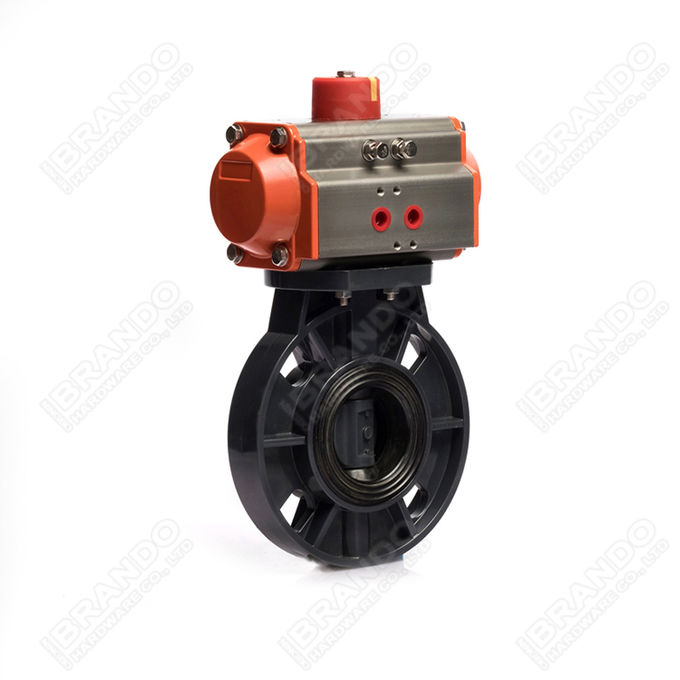

Pneumatic Butterfly Valve
